| 02112-34163-000 |
Screw - Screw, shift knob |

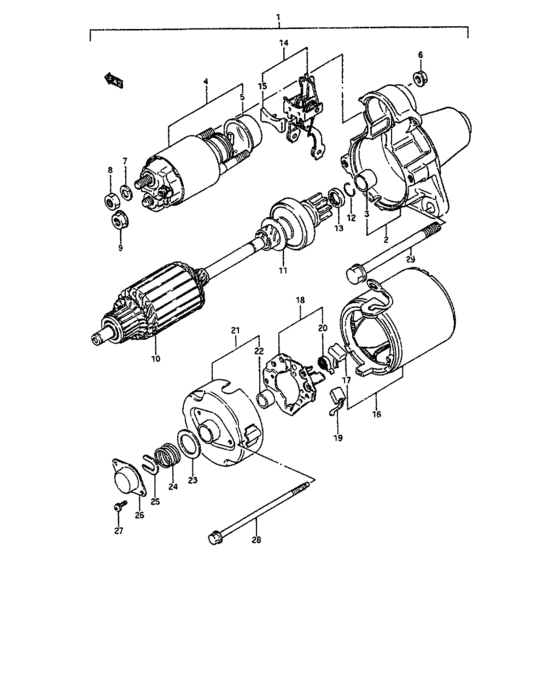

Starting motor (STARTING MOTOR) |
| 02112-3416B-000 |
SCREW |
Starting motor (STARTING MOTOR) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Starting motor (STARTING MOTOR) |
| 08310-0008B-000 |
NUT |
Starting motor (STARTING MOTOR) |
| 08310-12086-000 |
NUT |
Starting motor (STARTING MOTOR) |
| 08316-1006A-000 |
NUT |
Starting motor (STARTING MOTOR) |
| 08316-1006B-000 |
NUT |
Starting motor (STARTING MOTOR) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Starting motor (STARTING MOTOR) |
| 08316-1008B-000 |
NUT |
Starting motor (STARTING MOTOR) |
| 08321-0108A-000 |
WASHER,LOCK |
Starting motor (STARTING MOTOR) |
| 08321-0108B-000 |
WASHER,LOCK |
Starting motor (STARTING MOTOR) |
| 08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
Starting motor (STARTING MOTOR) |
| 09103-08024-000 |
Bolt, engine mounting no.3 |
Starting motor (STARTING MOTOR) |
| 09103-08134-000 |
BOLT(8X110) - Bolt, collector no.1 |
Starting motor (STARTING MOTOR) |
| 31100-51X50-000 |
MOTOR ASSY,STARTING |
Starting motor (STARTING MOTOR) |
| 31100-81010-000 |
Motor assy, starting |
Starting motor (STARTING MOTOR) |
| 31100-84110-000 |
モータアッシ,スターティング(デンソー) |
Starting motor (STARTING MOTOR) |
| 31110-79010-000 |
YOKE ASSY |
Starting motor (STARTING MOTOR) |
| 31131-78221-000 |
BRUSH |
Starting motor (STARTING MOTOR) |
| 31131-79010-000 |
ブラシ |
Starting motor (STARTING MOTOR) |
| 31135-79010-000 |
スプリング,ブラシ |
Starting motor (STARTING MOTOR) |
| 31136-78310-000 |
スクリュ |
Starting motor (STARTING MOTOR) |
| 31151-78021-000 |
Housing, motor drive |
Starting motor (STARTING MOTOR) |
| 31151-78221-000 |
ハウジングアッシ |
Starting motor (STARTING MOTOR) |
| 31152-79010-000 |
BUSH |
Starting motor (STARTING MOTOR) |
| 31170-78021-000 |
ハウジングアッシ |
Starting motor (STARTING MOTOR) |
| 31172-79010-000 |
BUSH |
Starting motor (STARTING MOTOR) |
| 31173-79010-000 |
HOLDER,BRUSH |
Starting motor (STARTING MOTOR) |
| 31174-79010-000 |
キャップ,コミュテータエンド |
Starting motor (STARTING MOTOR) |
| 31191-79010-000 |
LEVER,PINION DRIVE |
Starting motor (STARTING MOTOR) |
| 31220-84010-000 |
SWITCH ASSY |
Starting motor (STARTING MOTOR) |
| 31221-78310-000 |
カバー,スイッチ |
Starting motor (STARTING MOTOR) |
| 31254-79010-000 |
シール,スイッチ |
Starting motor (STARTING MOTOR) |
| 31255-78210-000 |
ナット |
Starting motor (STARTING MOTOR) |
| 31264-78310-000 |
シール,スタータ |
Starting motor (STARTING MOTOR) |
| 31266-78221-000 |
ナット |
Starting motor (STARTING MOTOR) |
| 31281-79010-000 |
Bolt |
Starting motor (STARTING MOTOR) |
| 31311-79620-000 |
ARMATURE,STARTING MOTOR |
Starting motor (STARTING MOTOR) |
| 31312-79010-000 |
RING,SNAP |
Starting motor (STARTING MOTOR) |
| 31313-79010-000 |
COLLAR,PINION STOP |
Starting motor (STARTING MOTOR) |
| 31320-79620-000 |
CLUTCH ASSY |
Starting motor (STARTING MOTOR) |
| 31371-78310-000 |
SPRING,STARTING MOTOR |
Starting motor (STARTING MOTOR) |
| 31372-79010-000 |
PLATE |
Starting motor (STARTING MOTOR) |
