Search › Model › SS40T

SS40T

Suzuki ALTO-A-STAR-CELERIO · 2,354 parts · 87 categories

2,354 items

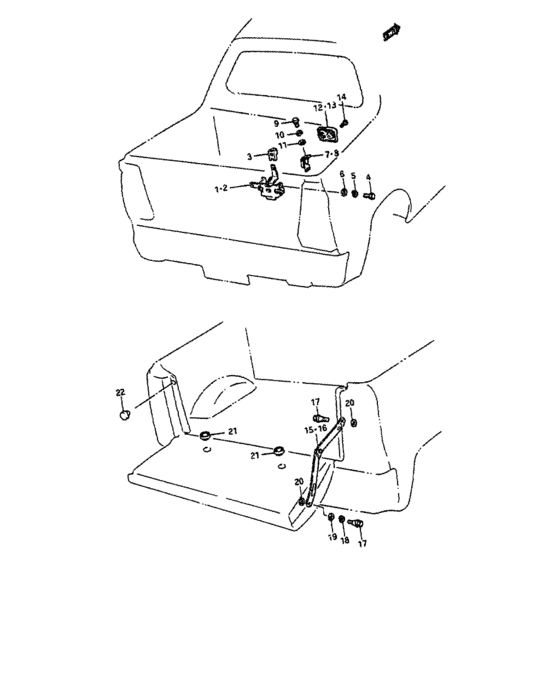

Rear gate lock (REAR GATE LOCK) 31

#	OEM	Part name
1	72810-81100-000	Lock, rear gate rh
2	72860-81100-000	Lock, rear gate lh
3	72815-81100-000	KNOB,LOCK LEVER
4	01107-06126-000	Bolt 6x12
4	01500-0612A-000	Bolt
5	08321-21066-000	Lock washer
5	08321-0106A-000	WASHER,LOCK
6	08322-21066-000	Washer
6	08322-0106B-000	WASHER
7	72851-81100-000	Striker, rear gate lock rh
8	72856-81100-000	Striker,rr gate lock lh
9	09128-06038-000	Screw 6x12
9	09128-06045-000	BOLT(6X12)
12	72891-81110-000	LID,RR GATE LOCK,R
13	72896-81110-000	Lid, rear gate lock lh
14	03142-05109-000	Screw 5x10
14	03142-0510B-000	SCREW
15	72830-81100-000	Link, rear gate rh
16	72880-81100-000	Link, rear gate lh
17	09135-06012-000	Bolt
18	08321-21086-000	Wsherlck8.2x15.2x1.6
18	08321-0108B-000	WASHER,LOCK
18	08321-0108A-000	WASHER,LOCK
19	08322-11086-000	Washer
19	08322-0108B-000	WASHER
19	08322-0108A-000	WASHER
20	09180-06057-000	New Genuine Part
21	09250-20011-000	CAP
21	09250-20015-000	CAP(OD:28.5) - Cap, air con harness
22	09321-05010-000	CUSHION
22	09321-05023-000	Cushion

OEM	Part name	Category
01107-06126-000	Bolt 6x12	Rear gate lock (REAR GATE LOCK)
01500-0612A-000	Bolt	Rear gate lock (REAR GATE LOCK)
03142-05109-000	Screw 5x10	Rear gate lock (REAR GATE LOCK)
03142-0510B-000	SCREW	Rear gate lock (REAR GATE LOCK)
08321-0106A-000	WASHER,LOCK	Rear gate lock (REAR GATE LOCK)
08321-0108A-000	WASHER,LOCK	Rear gate lock (REAR GATE LOCK)
08321-0108B-000	WASHER,LOCK	Rear gate lock (REAR GATE LOCK)
08321-21066-000	Lock washer	Rear gate lock (REAR GATE LOCK)
08321-21086-000	Wsherlck8.2x15.2x1.6	Rear gate lock (REAR GATE LOCK)
08322-0106B-000	WASHER	Rear gate lock (REAR GATE LOCK)
08322-0108A-000	WASHER	Rear gate lock (REAR GATE LOCK)
08322-0108B-000	WASHER	Rear gate lock (REAR GATE LOCK)
08322-11086-000	Washer	Rear gate lock (REAR GATE LOCK)
08322-21066-000	Washer	Rear gate lock (REAR GATE LOCK)
09128-06038-000	Screw 6x12	Rear gate lock (REAR GATE LOCK)
09128-06045-000	BOLT(6X12)	Rear gate lock (REAR GATE LOCK)
09135-06012-000	Bolt	Rear gate lock (REAR GATE LOCK)
09180-06057-000	New Genuine Part	Rear gate lock (REAR GATE LOCK)
09250-20011-000	CAP	Rear gate lock (REAR GATE LOCK)
09250-20015-000	CAP(OD:28.5) - Cap, air con harness	Rear gate lock (REAR GATE LOCK)
09321-05010-000	CUSHION	Rear gate lock (REAR GATE LOCK)
09321-05023-000	Cushion	Rear gate lock (REAR GATE LOCK)
72810-81100-000	Lock, rear gate rh	Rear gate lock (REAR GATE LOCK)
72815-81100-000	KNOB,LOCK LEVER	Rear gate lock (REAR GATE LOCK)
72830-81100-000	Link, rear gate rh	Rear gate lock (REAR GATE LOCK)
72851-81100-000	Striker, rear gate lock rh	Rear gate lock (REAR GATE LOCK)
72856-81100-000	Striker,rr gate lock lh	Rear gate lock (REAR GATE LOCK)
72860-81100-000	Lock, rear gate lh	Rear gate lock (REAR GATE LOCK)
72880-81100-000	Link, rear gate lh	Rear gate lock (REAR GATE LOCK)
72891-81110-000	LID,RR GATE LOCK,R	Rear gate lock (REAR GATE LOCK)
72896-81110-000	Lid, rear gate lock lh	Rear gate lock (REAR GATE LOCK)
