| 01537-06103-000 |
Bolt |

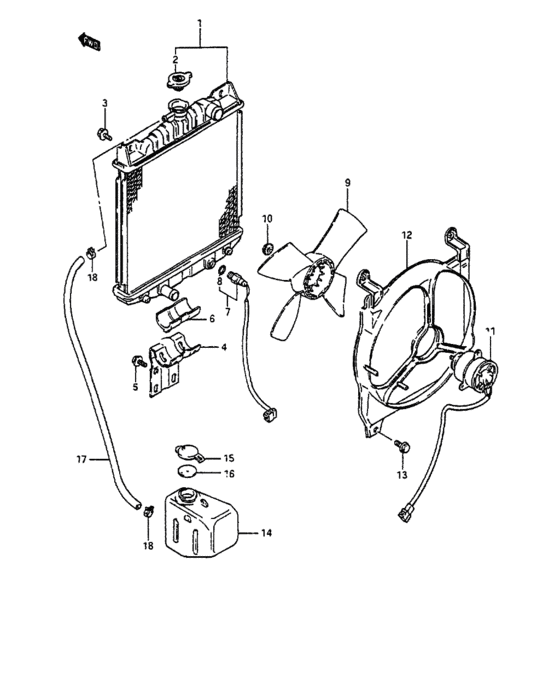

Radiator (MT) |
| 01550-0610A-000 |
Bolt |
Radiator (MT) |
| 01550-0610B-000 |
Bolt |
Radiator (MT) |
| 08316-2005A-000 |
NUT |
Radiator (MT) |
| 08316-26053-000 |
NUT 5MM |
Radiator (MT) |
| 09280-14004-000 |
O RING(D:1.9,ID:13.8) - O ring, gear shifting cam |
Radiator (MT) |
| 09343-07011-000 |
Hose |
Radiator (MT) |
| 09352-70121-00B |
HOSE(7X12.1X2000) - Hose, silencer |
Radiator (MT) |
| 09401-11404-000 |
クリップ |
Radiator (MT) |
| 09401-11407-000 |
CLIP |
Radiator (MT) |
| 09401-11415-000 |
CLIP |
Radiator (MT) |
| 17111-84000-000 |
FAN |
Radiator (MT) |
| 17120-84000-000 |
モータ,エンジンクーリング |
Radiator (MT) |
| 17120-84020-000 |
Motor,c00ling fan |
Radiator (MT) |
| 17680-55A01-000 |
SWITCH,FAN THERMO |
Radiator (MT) |
| 17680-84000-000 |
サーモスイッチ,ファン |
Radiator (MT) |
| 17700-84100-000 |
Radiator assy |
Radiator (MT) |
| 17700-84101-000 |
RADIATOR ASSY |
Radiator (MT) |
| 17760-84000-000 |
Shroud,fan |
Radiator (MT) |
| 17811-81001-000 |
Bracket, radiator support |
Radiator (MT) |
| 17812-78120-000 |
Rubber,radiator support |
Radiator (MT) |
| 17920-78020-000 |
CAP,0.9 |
Radiator (MT) |
| 17931-81001-000 |
TANK,WATER RESERVE |
Radiator (MT) |
| 17932-81001-000 |
CAP,WATER RESERVE TANK |
Radiator (MT) |
| 17933-81000-000 |
RUBBER,WTR RSV TANK CAP |
Radiator (MT) |
