Search › Model › SS40T

SS40T

Suzuki ALTO-A-STAR-CELERIO · 2,354 parts · 87 categories

2,354 items

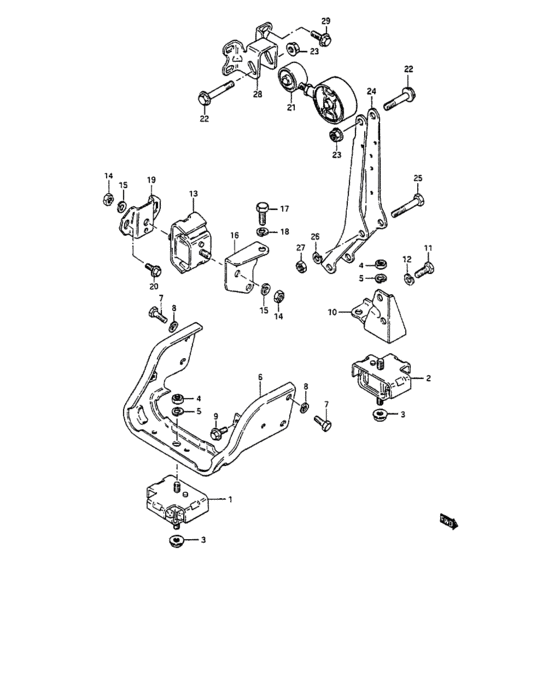

Engine mounting (AT) 38

#	OEM	Part name
1	11610-78001-000	Mounting, engine rh
1	11610-78231-000	MOUNTING,ENG,R
2	11620-78001-000	Mounting, engine lh
3	09159-10014-000	Nut
3	09159-10046-XC0	NUT
4	08310-12103-000	Nut
4	08310-0010B-000	NUT
4	08310-0010A-000	NUT
5	08321-21103-000	Lock washer
5	08321-0110B-000	WASHER,LOCK - Washer, knuckle end
5	08321-0110A-000	WASHER,LOCK
6	11660-78110-000	Bracket, mounting rh
7	01107-08203-000	Bolt
7	01500-0820A-000	Bolt
8	08321-21083-000	Washr,lk8.2x15. - Lock washer
8	08321-0108B-000	WASHER,LOCK
8	08321-0108A-000	WASHER,LOCK
9	01517-08203-000	BOLT
9	01550-0820A-000	Bolt - Bolt, funnel bracket
9	01550-0820B-000	Bolt
10	11670-78030-000	Bracket, mounting lh
11	01107-10203-000	ボルト
11	01500-1020B-000	Bolt - Bolt, axle bearing housing
13	11710-81000-000	MOUNTING,ENG RR
16	11731-78030-000	Bracket, rear mounting
19	11741-78001-000	Bracket, rear body side
20	01537-08163-000	Bolt
20	01550-0816B-000	Bolt
21	11910-78120-000	ROD,TORQUE
22	09103-10047-000	Nut
22	01550-1050B-000	Bolt
23	08316-16103-000	Nut
23	08316-1010B-000	NUT
24	11921-78121-000	Bracket, engine side
25	01907-10603-000	Bolt
25	01500-1060A-000	Bolt
28	11931-81000-000	Bracket, rod body side
29	01517-08166-000	Bolt 8x16

OEM	Part name	Category
01107-08203-000	Bolt	Engine mounting (AT)
01107-10203-000	ボルト	Engine mounting (AT)
01500-0820A-000	Bolt	Engine mounting (AT)
01500-1020B-000	Bolt - Bolt, axle bearing housing	Engine mounting (AT)
01500-1060A-000	Bolt	Engine mounting (AT)
01517-08166-000	Bolt 8x16	Engine mounting (AT)
01517-08203-000	BOLT	Engine mounting (AT)
01537-08163-000	Bolt	Engine mounting (AT)
01550-0816B-000	Bolt	Engine mounting (AT)
01550-0820A-000	Bolt - Bolt, funnel bracket	Engine mounting (AT)
01550-0820B-000	Bolt	Engine mounting (AT)
01550-1050B-000	Bolt	Engine mounting (AT)
01907-10603-000	Bolt	Engine mounting (AT)
08310-0010A-000	NUT	Engine mounting (AT)
08310-0010B-000	NUT	Engine mounting (AT)
08310-12103-000	Nut	Engine mounting (AT)
08316-1010B-000	NUT	Engine mounting (AT)
08316-16103-000	Nut	Engine mounting (AT)
08321-0108A-000	WASHER,LOCK	Engine mounting (AT)
08321-0108B-000	WASHER,LOCK	Engine mounting (AT)
08321-0110A-000	WASHER,LOCK	Engine mounting (AT)
08321-0110B-000	WASHER,LOCK - Washer, knuckle end	Engine mounting (AT)
08321-21083-000	Washr,lk8.2x15. - Lock washer	Engine mounting (AT)
08321-21103-000	Lock washer	Engine mounting (AT)
09103-10047-000	Nut	Engine mounting (AT)
09159-10014-000	Nut	Engine mounting (AT)
09159-10046-XC0	NUT	Engine mounting (AT)
11610-78001-000	Mounting, engine rh	Engine mounting (AT)
11610-78231-000	MOUNTING,ENG,R	Engine mounting (AT)
11620-78001-000	Mounting, engine lh	Engine mounting (AT)
11660-78110-000	Bracket, mounting rh	Engine mounting (AT)
11670-78030-000	Bracket, mounting lh	Engine mounting (AT)
11710-81000-000	MOUNTING,ENG RR	Engine mounting (AT)
11731-78030-000	Bracket, rear mounting	Engine mounting (AT)
11741-78001-000	Bracket, rear body side	Engine mounting (AT)
11910-78120-000	ROD,TORQUE	Engine mounting (AT)
11921-78121-000	Bracket, engine side	Engine mounting (AT)
11931-81000-000	Bracket, rod body side	Engine mounting (AT)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 87
Collected: 2026-08-01
