SR412

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2,765 parts · 129 categories
SR412 ×

← Back to categories

2,765 items

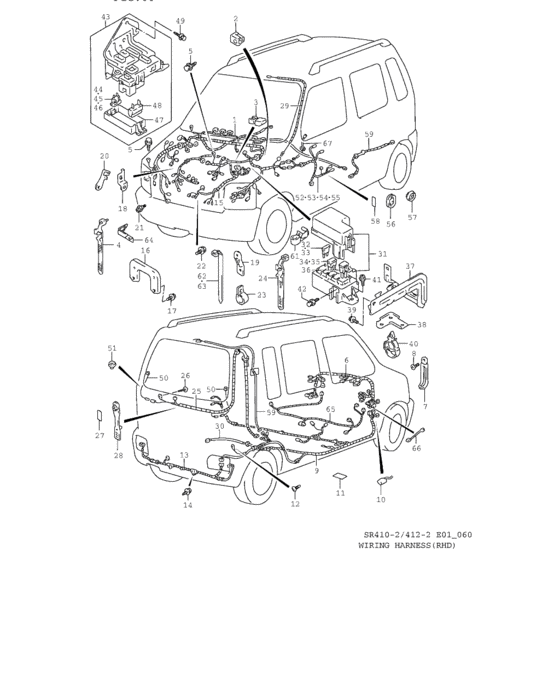

Wiring harness (RHD) 82
#OEMPart name
1 36910-75FK0-000 Harness assy, wiring no.1
1 36901-75F60-000 Harness assy, wiring no.1
1 36901-75F70-000 Harness assy, wiring no.1
1 36901-75FR0-000 Harness assy, wiring no.1
1 36901-75FP0-000 Harness assy, wiring no.1
1 36901-75FQ0-000 Harness assy, wiring no.1
2 33459-82000-000 DIODE
3 33553-52E00-000 FILTER,NOISE SUPPR
4 09407-12404-000 CLAMP(L:140)
5 09115-06001-000 Bolt, lh - Bolt (6x16)
5 09115-06005-000 BOLT(6X16)
6 36620-75FN1-000 Harness assy, wiring no.2
6 36620-75FG1-000 Harness assy, wiring no.2
6 36620-75FC1-000 Harness assy, wiring no.2
7 09404-06434-000 CLAMP(L:80 T:1.0)
7 09404-06036-000 Clamp(L:80)
8 03541-05123-000 Screw
8 03541-0512B-000 SCREW
9 36630-75F10-000 HARNESS ASSY,WRG NO.3
10 36639-74F00-000 DIODE
11 36930-82010-000 COVER,HARNESS - Cover, roof wire
13 36640-75F10-000 HARNESS ASSY,WRG NO.4
15 36650-75FL1-000 HARNESS ASSY,WRG ENG
15 36650-75FC1-000 Harness assy,wrg,eng
16 36655-75F00-000 BRACKET,ENG HARN
17 01550-06163-000 Bolt
17 01550-0616B-000 Bolt
17 01550-0616A-000 Bolt
18 36651-62G10-000 BRACKET,ENG HARN
20 36995-80C00-000 CLAMP,OIL P SW
21 18495-50E00-000 Bolt
22 01550-08123-000 Bolt - Plug, oil gallery
22 01550-0812B-000 Bolt - Plug, drain
22 01550-0812A-000 Bolt
23 09403-14204-000 CLAMP
23 09403-14415-000 Clamp
25 36670-75F30-000 Harness assy, hatch door
25 36670-75F20-000 HARNESS ASSY,HATCH DOOR
26 03142-05123-000 Screw - Screw, belt cooling duct
26 03141-0512A-000 SCREW - Screw, belt cooling duct
28 09407-05403-000 CLAMP,L:88
29 36820-75F10-000 WIRE,ROOM LAMP
30 36840-75F00-000 WIRE,FUEL PUMP
31 36740-75F01-000 BOX ASSY,MAIN FUSE
32 09481-15101-000 FUSE(15A) - Fuse (15a)
33 09481-30203-000 FUSE(30A)
34 09481-40203-000 FUSE(40A)
35 09481-60202-000 FUSE(60A)
36 09481-80301-000 FUSE(80A)
37 36731-75F00-000 BRACKET,MAIN FUSE BOX
38 36732-75F00-000 BRACKET,MAIN FUSE BOX
40 09403-25304-000 CLAMP
41 02162-06123-000 Bolt (6x12)
41 02162-0612B-000 SCREW - Bolt
41 02162-0612A-000 SCREW - Bolt, bracket
42 09138-06040-000 BOLT(6X10)
43 36710-74F01-000 BOX ASSY,JUNCTION
45 09481-20101-000 FUSE(20A)
46 09481-30101-000 FUSE(30A)
47 36717-74F00-000 COVER,JUNCTION BOX
48 36795-50E00-000 BREAKER,P/W
50 36890-50E00-000 WIRE,RR DF
51 09308-03005-000 GROMMET
52 36756-75FQ0-000 ワイヤ,パワーウィンド,メイン
52 36756-75FK1-000 Wire, power window main
52 36756-75FJ0-000 Wire, power window main
53 36756-75FR0-000 ワイヤ,パワーウィンド,サブ
53 36756-75F40-000 WIRE,P/W SUB
54 36756-75F00-000 ワイヤ,ドアスピーカ
55 36756-75FS0-000 WIRE,DR SPKR,L
56 09250-20017-000 PLUG(OD:20) - Plug, lower cover
57 09250-23002-000 CAP(OD:32)
59 36751-75F10-000 WIRE,RR DR
59 36751-75F00-000 WIRE,RR DR
60 36820-74F40-000 WIRE,RR ROOM LAMP
61 34935-60D00-000 CLAMP,HARN NO.1 STRUT
62 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
63 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
65 36690-75F30-000 HARNESS ASSY,AIR BAG
65 36690-75F40-000 Harness assy,air bag
66 36690-75F10-000 ハーネスアッシ,エアバッグ
67 36755-75F00-000 WIRE,REMOCON MIRROR
