Search › Model › SR412
SR412

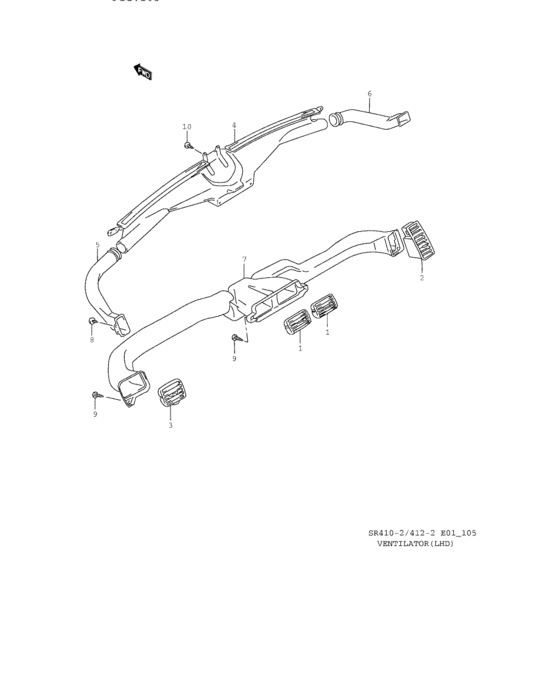

Ventilator (LHD) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 73611-75F00-5PK | LOUVER,CTR VENT |
| 2 | 73630-75F50-T01 | LOUVER,SIDE VENT ASST |
| 3 | 73631-75F00-5PK | LOUVER,SIDE VENT |
| 4 | 73660-75F00-000 | NOZZLE,DFR |
| 5 | 73681-75F50-000 | DUCT,DEMISTER,DRVR |
| 6 | 73691-75F50-000 | DUCT,DEMISTER,ASST |
| 7 | 74620-75F50-000 | DUCT,VENT |
| 8 | 03142-04123-000 | スクリュ |
| 8 | 03142-0412B-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03142-04123-000 | スクリュ | Ventilator (LHD) |
| 03142-0412B-000 | SCREW | Ventilator (LHD) |
| 73611-75F00-5PK | LOUVER,CTR VENT | Ventilator (LHD) |
| 73630-75F50-T01 | LOUVER,SIDE VENT ASST | Ventilator (LHD) |
| 73631-75F00-5PK | LOUVER,SIDE VENT | Ventilator (LHD) |
| 73660-75F00-000 | NOZZLE,DFR | Ventilator (LHD) |
| 73681-75F50-000 | DUCT,DEMISTER,DRVR | Ventilator (LHD) |
| 73691-75F50-000 | DUCT,DEMISTER,ASST | Ventilator (LHD) |
| 74620-75F50-000 | DUCT,VENT | Ventilator (LHD) |
