Search › Model › SR412
SR412

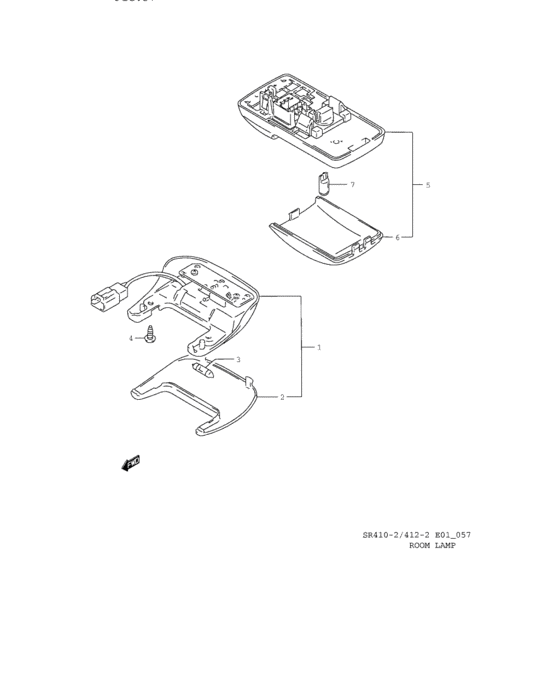

Room lamp (ROOM LAMP) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 36210-50E61-6GS | LAMP ASSY,ROOM |
| 2 | 36212-50E00-000 | LENS,ROOM LAMP |
| 3 | 09471-12073-000 | BULB(12V,5W) |
| 4 | 03242-05163-000 | Screw |
| 4 | 03241-0516A-000 | SCREW |
| 5 | 36210-74F02-6GS | LAMP ASSY,RR ROOM |
| 5 | 36210-74F02-V12 | LAMP ASSY,RR ROOM |
| 6 | 36212-74F00-000 | LENS,ROOM LAMP |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| OEM | Part name | Category |
|---|---|---|
| 03241-0516A-000 | SCREW | Room lamp (ROOM LAMP) |
| 03242-05163-000 | Screw | Room lamp (ROOM LAMP) |
| 09471-12073-000 | BULB(12V,5W) | Room lamp (ROOM LAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Room lamp (ROOM LAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Room lamp (ROOM LAMP) |
| 36210-50E61-6GS | LAMP ASSY,ROOM | Room lamp (ROOM LAMP) |
| 36210-74F02-6GS | LAMP ASSY,RR ROOM | Room lamp (ROOM LAMP) |
| 36210-74F02-V12 | LAMP ASSY,RR ROOM | Room lamp (ROOM LAMP) |
| 36212-50E00-000 | LENS,ROOM LAMP | Room lamp (ROOM LAMP) |
| 36212-74F00-000 | LENS,ROOM LAMP | Room lamp (ROOM LAMP) |
