Search › Model › SR412
SR412

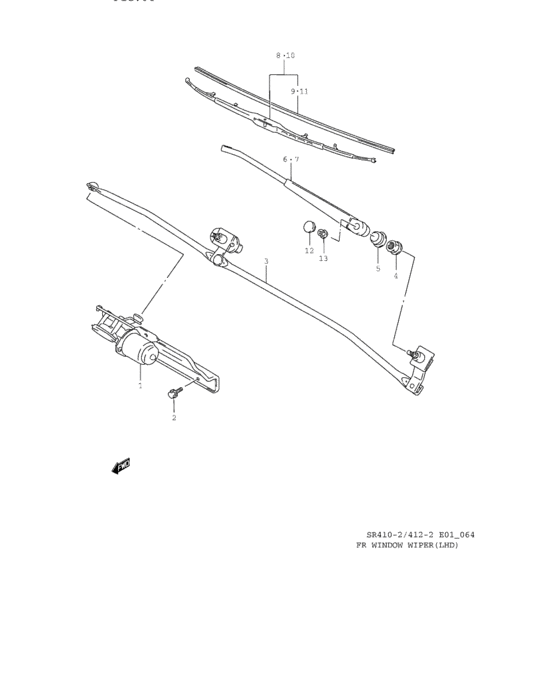

Front window wiper (LHD) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-75F10-000 | MOTOR&BRACKET ASSY,WIPER |
| 2 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 2 | 09115-06005-000 | BOLT(6X16) |
| 3 | 38102-75F10-000 | LINK ASSY,WIPER |
| 4 | 09159-18010-000 | NUT |
| 5 | 38274-74F00-000 | CAP,WIPER PIVOT |
| 6 | 38330-75F10-000 | ARM ASSY,WIPER,R |
| 7 | 38310-75F10-000 | ARM ASSY,WIPER,L |
| 8 | 38340-75F30-000 | Blade assy, wiper rh |
| 8 | 38340-75F31-000 | BLADE ASSY,WIPER,R |
| 9 | 38346-75F10-000 | Blade, rh |
| 9 | 38346-75F11-000 | RUBBER,BLADE |
| 10 | 38340-75F10-000 | BLADE ASSY,WIPER,L |
| 11 | 38346-75F00-000 | RUBBER,BLADE |
| 12 | 38344-50E00-000 | CAP,WIPER ARM |
| 13 | 08316-10083-000 | Nut |
| 13 | 08316-1008B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 08316-10083-000 | Nut | Front window wiper (LHD) |
| 08316-1008B-000 | NUT | Front window wiper (LHD) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Front window wiper (LHD) |
| 09115-06005-000 | BOLT(6X16) | Front window wiper (LHD) |
| 09159-18010-000 | NUT | Front window wiper (LHD) |
| 38101-75F10-000 | MOTOR&BRACKET ASSY,WIPER | Front window wiper (LHD) |
| 38102-75F10-000 | LINK ASSY,WIPER | Front window wiper (LHD) |
| 38274-74F00-000 | CAP,WIPER PIVOT | Front window wiper (LHD) |
| 38310-75F10-000 | ARM ASSY,WIPER,L | Front window wiper (LHD) |
| 38330-75F10-000 | ARM ASSY,WIPER,R | Front window wiper (LHD) |
| 38340-75F10-000 | BLADE ASSY,WIPER,L | Front window wiper (LHD) |
| 38340-75F30-000 | Blade assy, wiper rh | Front window wiper (LHD) |
| 38340-75F31-000 | BLADE ASSY,WIPER,R | Front window wiper (LHD) |
| 38344-50E00-000 | CAP,WIPER ARM | Front window wiper (LHD) |
| 38346-75F00-000 | RUBBER,BLADE | Front window wiper (LHD) |
| 38346-75F10-000 | Blade, rh | Front window wiper (LHD) |
| 38346-75F11-000 | RUBBER,BLADE | Front window wiper (LHD) |
