Search › Model › SR412
SR412

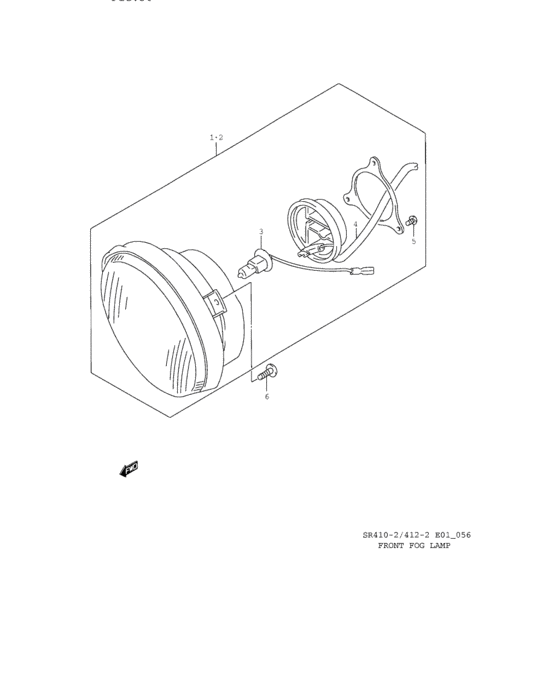

Front fog lamp (GLX,Brazil) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 35501-75F00-000 | LAMP ASSY,FOG,R |
| 2 | 35502-75F00-000 | LAMP ASSY,FOG,L |
| 3 | 09471-12106-000 | BULB(12V55W,H3) |
| 3 | 09471-12106-CDN | Bulb,h3 64151 |
| 4 | 35530-75F00-000 | CORD,FOG LAMP |
| 5 | 03511-04123-000 | Screw 4x12 |
| 5 | 03511-0412A-000 | SCREW |
| 6 | 03541-05163-000 | Screw |
| 6 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03511-04123-000 | Screw 4x12 | Front fog lamp (GLX,Brazil) |
| 03511-0412A-000 | SCREW | Front fog lamp (GLX,Brazil) |
| 03541-05163-000 | Screw | Front fog lamp (GLX,Brazil) |
| 03541-0516A-000 | SCREW | Front fog lamp (GLX,Brazil) |
| 09471-12106-000 | BULB(12V55W,H3) | Front fog lamp (GLX,Brazil) |
| 09471-12106-CDN | Bulb,h3 64151 | Front fog lamp (GLX,Brazil) |
| 35501-75F00-000 | LAMP ASSY,FOG,R | Front fog lamp (GLX,Brazil) |
| 35502-75F00-000 | LAMP ASSY,FOG,L | Front fog lamp (GLX,Brazil) |
| 35530-75F00-000 | CORD,FOG LAMP | Front fog lamp (GLX,Brazil) |
