Search › Model › SR410
SR410

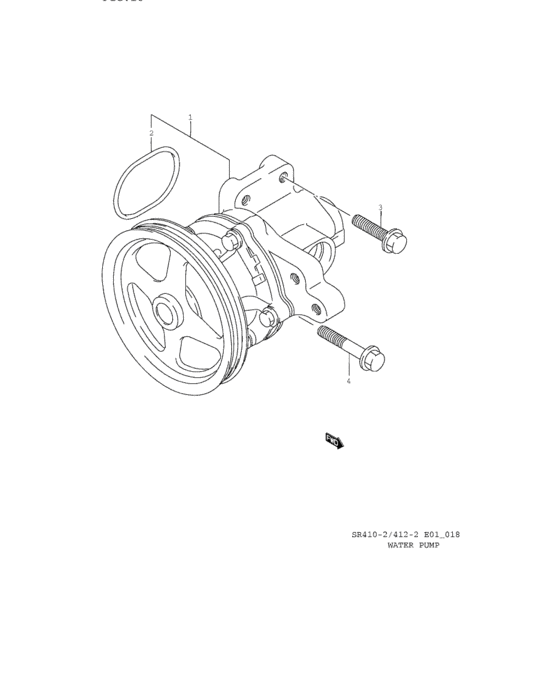

Water pump (WATER PUMP) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-73831-000 | ポンプセット,ウォータ |
| 1 | 17400-73835-000 | PUMP SET,WATER |
| 1 | 17400-78850-000 | Pump set, water |
| 1 | 17400-78854-000 | PUMP SET,WATER |
| 2 | 17611-73G00-000 | O ring - O ring, water pump |
| 2 | 17611-73G03-000 | O-RING,WATER PUMP |
| 3 | 01550-08303-000 | Bolt |
| 3 | 01550-0830B-000 | Bolt |
| 3 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover |
| 4 | 01550-08403-000 | Bolt |
| 4 | 01550-0840B-000 | Bolt |
| 4 | 01550-0840A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-08303-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Water pump (WATER PUMP) |
| 01550-0830B-000 | Bolt | Water pump (WATER PUMP) |
| 01550-08403-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0840A-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0840B-000 | Bolt | Water pump (WATER PUMP) |
| 17400-73831-000 | ポンプセット,ウォータ | Water pump (WATER PUMP) |
| 17400-73835-000 | PUMP SET,WATER | Water pump (WATER PUMP) |
| 17400-78850-000 | Pump set, water | Water pump (WATER PUMP) |
| 17400-78854-000 | PUMP SET,WATER | Water pump (WATER PUMP) |
| 17611-73G00-000 | O ring - O ring, water pump | Water pump (WATER PUMP) |
| 17611-73G03-000 | O-RING,WATER PUMP | Water pump (WATER PUMP) |
