| 01570-08253-000 |
Bolt, upper |

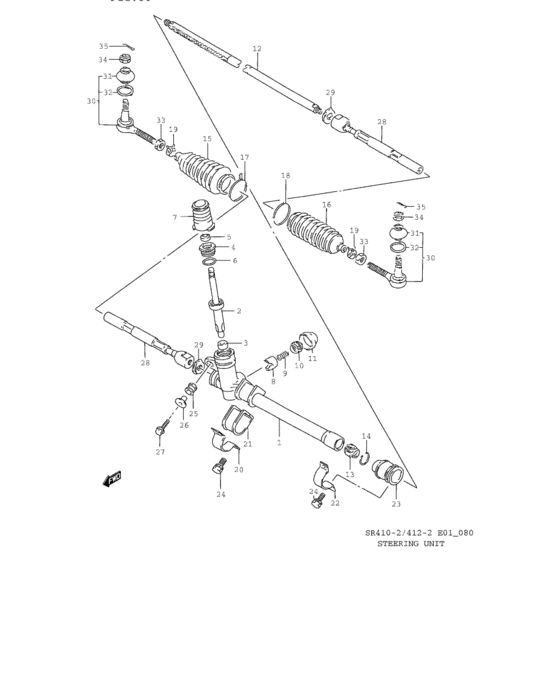

Steering unit (STEERING UNIT) |
| 01570-0825A-000 |
Bolt |
Steering unit (STEERING UNIT) |
| 01570-0825B-000 |
Bolt |
Steering unit (STEERING UNIT) |
| 04111-30208-000 |
Cotter pin - Cotter pin, knuckle end |
Steering unit (STEERING UNIT) |
| 04111-3020A-000 |
PIN |
Steering unit (STEERING UNIT) |
| 08314-40123-000 |
Nut - Nut, knuckle end |
Steering unit (STEERING UNIT) |
| 08314-4012A-000 |
NUT |
Steering unit (STEERING UNIT) |
| 09116-08105-000 |
Bolt (8x28) |
Steering unit (STEERING UNIT) |
| 09116-08120-000 |
BOLT(8X28) |
Steering unit (STEERING UNIT) |
| 09140-12030-000 |
NUT - Nut, tie rod (rh thread) |
Steering unit (STEERING UNIT) |
| 09180-08174-000 |
SPACER(8.6X12X16.1) |
Steering unit (STEERING UNIT) |
| 09280-34003-000 |
O RING(D:2,ID:34.1) |
Steering unit (STEERING UNIT) |
| 09283-15002-000 |
SEAL,OIL(15X25X5) |
Steering unit (STEERING UNIT) |
| 09320-12028-000 |
CUSHION |
Steering unit (STEERING UNIT) |
| 09381-33002-000 |
RING, SNAP |
Steering unit (STEERING UNIT) |
| 09401-15407-000 |
CLIP - Bolt, 2nd air hose |
Steering unit (STEERING UNIT) |
| 09401-23402-000 |
CLIP |
Steering unit (STEERING UNIT) |
| 09440-19011-000 |
SPRING |
Steering unit (STEERING UNIT) |
| 09460-01023-000 |
WIRE |
Steering unit (STEERING UNIT) |
| 48451-74F00-000 |
PACKING,STEERING GEAR CASE |
Steering unit (STEERING UNIT) |
| 48510-75F10-000 |
ケース,ステアリングギヤ |
Steering unit (STEERING UNIT) |
| 48510-75F11-000 |
CASE,STRG GEAR |
Steering unit (STEERING UNIT) |
| 48510-75F20-000 |
CASE,STRG GEAR,L |
Steering unit (STEERING UNIT) |
| 48521-82000-000 |
BRACKET,STEERING PINION SIDE |
Steering unit (STEERING UNIT) |
| 48522-82000-000 |
BRACKET,STEERING RACK SIDE |
Steering unit (STEERING UNIT) |
| 48525-75F00-000 |
MOUNT,STRG PINION SIDE |
Steering unit (STEERING UNIT) |
| 48526-82000-000 |
MOUNT,STRG RACK SIDE |
Steering unit (STEERING UNIT) |
| 48531-75F11-000 |
RACK,STEERING,R |
Steering unit (STEERING UNIT) |
| 48531-75F21-000 |
RACK,STEERING,L |
Steering unit (STEERING UNIT) |
| 48534-50E00-000 |
プランジャ,ステアリングラック |
Steering unit (STEERING UNIT) |
| 48534-60J00-000 |
PLUNGER,STEERING RACK |
Steering unit (STEERING UNIT) |
| 48535-76G01-000 |
SCREW,RACK DAMPER |
Steering unit (STEERING UNIT) |
| 48535-82000-000 |
SCREW,RACK DAMPER |
Steering unit (STEERING UNIT) |
| 48536-58000-000 |
CAP,RACK DAMPER SCREW |
Steering unit (STEERING UNIT) |
| 48536-76G00-000 |
NUT,DAMPER SCREW LOCK |
Steering unit (STEERING UNIT) |
| 48541-53B02-000 |
Bushing, steering rack |
Steering unit (STEERING UNIT) |
| 48541-82H10-000 |
BUSHING,STEERING RACK |
Steering unit (STEERING UNIT) |
| 48550-75F10-000 |
ピニオン,ステアリング |
Steering unit (STEERING UNIT) |
| 48550-75F20-000 |
Pinion, steering |
Steering unit (STEERING UNIT) |
| 48550-75F60-000 |
PINION,STEERING,R |
Steering unit (STEERING UNIT) |
| 48550-75F70-000 |
PINION,STEERING,R |
Steering unit (STEERING UNIT) |
| 48555-74F00-000 |
BEARING,STEERING PINION NDL |
Steering unit (STEERING UNIT) |
| 48562-82000-000 |
Plug, pinion bearing |
Steering unit (STEERING UNIT) |
| 48562-82K00-000 |
PLUG,PINION BEARING |
Steering unit (STEERING UNIT) |
| 48571-82000-000 |
BOOT,STEERING PINION SIDE |
Steering unit (STEERING UNIT) |
| 48572-60B10-000 |
BOOT,STEERING RACK SIDE |
Steering unit (STEERING UNIT) |
| 48800-60810-000 |
Boot Set |
Steering unit (STEERING UNIT) |
| 48810-76G00-000 |
END,STEERING TIE-ROD |
Steering unit (STEERING UNIT) |
| 48819-60B00-000 |
BOOT SET |
Steering unit (STEERING UNIT) |
| 48819-60B01-000 |
Boot Set |
Steering unit (STEERING UNIT) |
| 48830-75F01-000 |
TIE-ROD,STEERING |
Steering unit (STEERING UNIT) |
| 48841-82001-000 |
WASHER,STEERING TIE ROD LOCK |
Steering unit (STEERING UNIT) |
