Search › Model › SR410
SR410

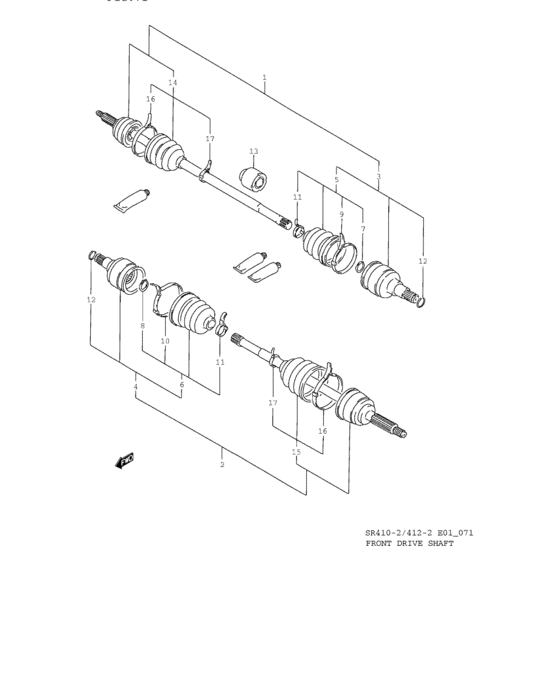

Front axle (FRONT AXLE) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 44101-75F32-000 | Shaft assy,front drive,r |
| 2 | 44102-75F32-000 | Shaft assy,front drive,l |
| 3 | 44117-75F70-000 | Joint assy,diff side |
| 5 | 44119-75F00-000 | BOOT SET,DIFF SIDE |
| 5 | 44119-60DD2-000 | BOOT SET,DIFF SIDE |
| 7 | 44111-64B90-000 | RING,SNAP |
| 9 | 44122-86010-000 | BAND,BOOT - Clamp, differential side outer boot |
| 11 | 44124-86011-000 | BAND,BOOT |
| 12 | 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) |
| 13 | 44411-75F00-000 | Damper set |
| 14 | 44118-75F01-000 | Boot set,wheel side |
| 14 | 44118-75F11-000 | BOOT SET,WHEEL SIDE |
| 15 | 44118-82022-000 | BOOT SET,WHEEL SIDE |
| 15 | 44118-82023-000 | BOOT SET,WHEEL SIDE |
| OEM | Part name | Category |
|---|---|---|
| 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) | Front axle (FRONT AXLE) |
| 44101-75F32-000 | Shaft assy,front drive,r | Front axle (FRONT AXLE) |
| 44102-75F32-000 | Shaft assy,front drive,l | Front axle (FRONT AXLE) |
| 44111-64B90-000 | RING,SNAP | Front axle (FRONT AXLE) |
| 44117-75F70-000 | Joint assy,diff side | Front axle (FRONT AXLE) |
| 44118-75F01-000 | Boot set,wheel side | Front axle (FRONT AXLE) |
| 44118-75F11-000 | BOOT SET,WHEEL SIDE | Front axle (FRONT AXLE) |
| 44118-82022-000 | BOOT SET,WHEEL SIDE | Front axle (FRONT AXLE) |
| 44118-82023-000 | BOOT SET,WHEEL SIDE | Front axle (FRONT AXLE) |
| 44119-60DD2-000 | BOOT SET,DIFF SIDE | Front axle (FRONT AXLE) |
| 44119-75F00-000 | BOOT SET,DIFF SIDE | Front axle (FRONT AXLE) |
| 44122-86010-000 | BAND,BOOT - Clamp, differential side outer boot | Front axle (FRONT AXLE) |
| 44124-86011-000 | BAND,BOOT | Front axle (FRONT AXLE) |
| 44411-75F00-000 | Damper set | Front axle (FRONT AXLE) |
