Search › Model › SR410

SR410

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2,765 parts · 129 categories

2,765 items

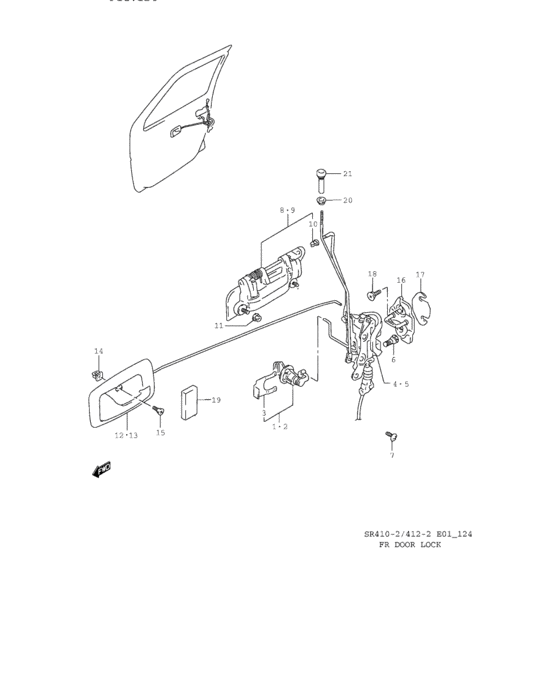

Fr dr lock (FR DR LOCK) 33

#	OEM	Part name
1	82201-72830-000	CYLINDER ASSY,FR DR LOCK,R
2	82201-72840-000	CYLINDER ASSY,FR DR LOCK,L
3	82291-70B00-000	RETAINER,CYLINDER
4	82201-74F20-000	LATCH ASSY,FR DR,R
4	82201-74F30-000	LATCH ASSY,FR DR,R
4	82201-75F50-000	LATCH ASSY,FR DR,R
5	82202-74F20-000	LATCH ASSY,FR DR,L
5	82202-74F30-000	LATCH ASSY,FR DR,L
5	82202-75F50-000	LATCH ASSY,FR DR,L
6	09137-06025-000	SCREW(6X16)
7	02142-06103-000	Screw
7	02142-0610B-000	SCREW - Stopper, cl rlse cam shaft
7	02142-0610A-000	SCREW
8	82801-74F00-5PK	HANDLE,SIDE DR OUT,R
9	82802-74F00-5PK	HANDLE,SIDE DR OUT,L
10	82816-74F00-000	SNAP,ADJUSTING JOINT
11	08316-20063-000	Nut
11	08316-2006A-000	NUT
12	83101-74F01-T01	HANDLE ASSY,FR DOOR,R
12	83101-74F02-T01	HANDLE,FR DR INSIDE,R
13	83102-74F01-T01	HANDLE ASSY,FR DOOR,L
13	83102-74F02-T01	HANDLE,FR DR INSIDE,L
14	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
15	03521-05163-000	Screw
15	03521-0516A-000	SCREW
16	82610-75F00-000	STRIKER,DOOR LATCH
17	78199-78000-000	SPACER,DOOR LOCK STRIKER
18	09137-08006-000	Screw - Screw (8x18)
18	09137-08011-000	SCREW(8X18)
18	09137-08004-000	SCREW(8X18)
19	77591-75000-000	PAD
20	82991-84000-000	CAP,DR INSIDE LOCK KNOB
21	82982-50F00-T01	KNOB,DOOR INSIDE LOCK

OEM	Part name	Category
02142-06103-000	Screw	Fr dr lock (FR DR LOCK)
02142-0610A-000	SCREW	Fr dr lock (FR DR LOCK)
02142-0610B-000	SCREW - Stopper, cl rlse cam shaft	Fr dr lock (FR DR LOCK)
03521-05163-000	Screw	Fr dr lock (FR DR LOCK)
03521-0516A-000	SCREW	Fr dr lock (FR DR LOCK)
08316-20063-000	Nut	Fr dr lock (FR DR LOCK)
08316-2006A-000	NUT	Fr dr lock (FR DR LOCK)
09137-06025-000	SCREW(6X16)	Fr dr lock (FR DR LOCK)
09137-08004-000	SCREW(8X18)	Fr dr lock (FR DR LOCK)
09137-08006-000	Screw - Screw (8x18)	Fr dr lock (FR DR LOCK)
09137-08011-000	SCREW(8X18)	Fr dr lock (FR DR LOCK)
77591-75000-000	PAD	Fr dr lock (FR DR LOCK)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Fr dr lock (FR DR LOCK)
82201-72830-000	CYLINDER ASSY,FR DR LOCK,R	Fr dr lock (FR DR LOCK)
82201-72840-000	CYLINDER ASSY,FR DR LOCK,L	Fr dr lock (FR DR LOCK)
82201-74F20-000	LATCH ASSY,FR DR,R	Fr dr lock (FR DR LOCK)
82201-74F30-000	LATCH ASSY,FR DR,R	Fr dr lock (FR DR LOCK)
82201-75F50-000	LATCH ASSY,FR DR,R	Fr dr lock (FR DR LOCK)
82202-74F20-000	LATCH ASSY,FR DR,L	Fr dr lock (FR DR LOCK)
82202-74F30-000	LATCH ASSY,FR DR,L	Fr dr lock (FR DR LOCK)
82202-75F50-000	LATCH ASSY,FR DR,L	Fr dr lock (FR DR LOCK)
82291-70B00-000	RETAINER,CYLINDER	Fr dr lock (FR DR LOCK)
82610-75F00-000	STRIKER,DOOR LATCH	Fr dr lock (FR DR LOCK)
82801-74F00-5PK	HANDLE,SIDE DR OUT,R	Fr dr lock (FR DR LOCK)
82802-74F00-5PK	HANDLE,SIDE DR OUT,L	Fr dr lock (FR DR LOCK)
82816-74F00-000	SNAP,ADJUSTING JOINT	Fr dr lock (FR DR LOCK)
82982-50F00-T01	KNOB,DOOR INSIDE LOCK	Fr dr lock (FR DR LOCK)
82991-84000-000	CAP,DR INSIDE LOCK KNOB	Fr dr lock (FR DR LOCK)
83101-74F01-T01	HANDLE ASSY,FR DOOR,R	Fr dr lock (FR DR LOCK)
83101-74F02-T01	HANDLE,FR DR INSIDE,R	Fr dr lock (FR DR LOCK)
83102-74F01-T01	HANDLE ASSY,FR DOOR,L	Fr dr lock (FR DR LOCK)
83102-74F02-T01	HANDLE,FR DR INSIDE,L	Fr dr lock (FR DR LOCK)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	Fr dr lock (FR DR LOCK)
