SR410

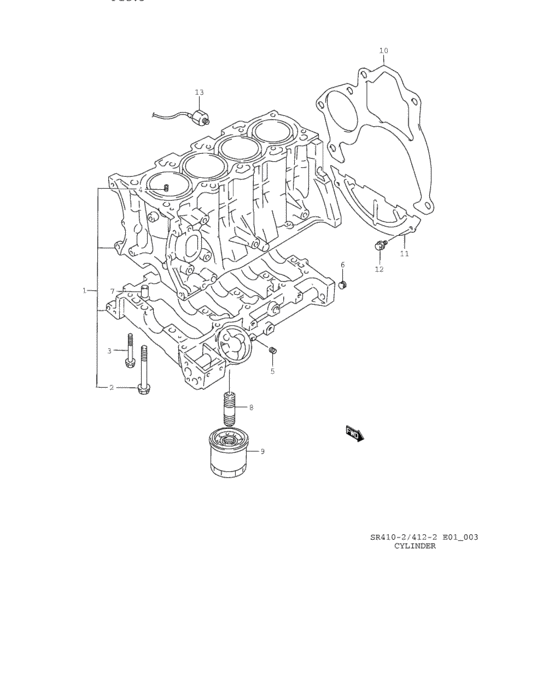

Cylinder (CYLINDER) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-75F00-000 | ブロックアッシ,シリンダ |
| 1 | 11200-75F01-000 | BLOCK ASSY,CYLINDER |
| 1 | 11200-75F30-000 | Block assy,cylinder |
| 1 | 11200-75F30-X12 | BLOCK ASSY,CYLINDER K12A |
| 2 | 11117-73G00-000 | BOLT,CYLINDER HEAD |
| 3 | 11261-73G01-000 | BOLT,8X59 |
| 4 | 11112-73002-000 | Plug, oil venturi |
| 4 | 11112-73010-000 | PLUG,OIL VENTURI |
| 5 | 09246-05006-000 | PLUG(1/8PT,H:5.5) |
| 6 | 09246-08004-000 | PLUG,3/8PT H:4 |
| 7 | 04211-13189-000 | PIN |
| 8 | 11241-73003-000 | STAND,OIL FILTER |
| 9 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 10 | 11311-60D13-000 | Plate, clutch housing upper |
| 10 | 11311-60D14-000 | PLATE,CLUTCH HSG UPPER |
| 11 | 11320-78G00-000 | PLATE,CLUTCH HSG LOWER |
| 12 | 02162-06103-000 | Bolt - Bolt, bracket |
| 12 | 02162-0610A-000 | SCREW |
| 13 | 18640-73G00-000 | SENSOR ASSY,KNOCK |
| OEM | Part name | Category |
|---|---|---|
| 02162-06103-000 | Bolt - Bolt, bracket | Cylinder (CYLINDER) |
| 02162-0610A-000 | SCREW | Cylinder (CYLINDER) |
| 04211-13189-000 | PIN | Cylinder (CYLINDER) |
| 09246-05006-000 | PLUG(1/8PT,H:5.5) | Cylinder (CYLINDER) |
| 09246-08004-000 | PLUG,3/8PT H:4 | Cylinder (CYLINDER) |
| 11112-73002-000 | Plug, oil venturi | Cylinder (CYLINDER) |
| 11112-73010-000 | PLUG,OIL VENTURI | Cylinder (CYLINDER) |
| 11117-73G00-000 | BOLT,CYLINDER HEAD | Cylinder (CYLINDER) |
| 11200-75F00-000 | ブロックアッシ,シリンダ | Cylinder (CYLINDER) |
| 11200-75F01-000 | BLOCK ASSY,CYLINDER | Cylinder (CYLINDER) |
| 11200-75F30-000 | Block assy,cylinder | Cylinder (CYLINDER) |
| 11200-75F30-X12 | BLOCK ASSY,CYLINDER K12A | Cylinder (CYLINDER) |
| 11241-73003-000 | STAND,OIL FILTER | Cylinder (CYLINDER) |
| 11261-73G01-000 | BOLT,8X59 | Cylinder (CYLINDER) |
| 11311-60D13-000 | Plate, clutch housing upper | Cylinder (CYLINDER) |
| 11311-60D14-000 | PLATE,CLUTCH HSG UPPER | Cylinder (CYLINDER) |
| 11320-78G00-000 | PLATE,CLUTCH HSG LOWER | Cylinder (CYLINDER) |
| 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | Cylinder (CYLINDER) |
| 18640-73G00-000 | SENSOR ASSY,KNOCK | Cylinder (CYLINDER) |
