Search › Model › SR410
SR410

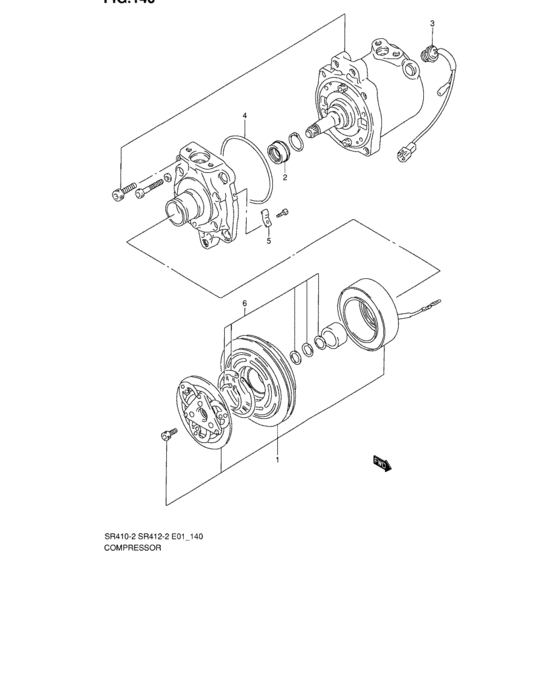

Compressor (COMPRESSOR) 10
| # | OEM | Part name |
|---|---|---|
| 0 | 95200-70C30-000 | COMPRESSOR ASSY |
| 1 | 95210-70C00-000 | CLUTCH,MAGNET |
| 1 | 95210-70C01-000 | CLUTCH,MAGNET |
| 2 | 95261-70B00-000 | Seal, lip |
| 3 | 95527-72B00-000 | SWITCH,THERMAL |
| 3 | 95527-72B01-000 | SWITCH,THERMAL |
| 4 | 95262-70B00-000 | O ring |
| 5 | 95291-70B00-000 | FIXING PLATE |
| 6 | 95298-72B20-000 | Clip kit |
| 6 | 95298-72B21-000 | CLIP KIT |
| OEM | Part name | Category |
|---|---|---|
| 95200-70C30-000 | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 95210-70C00-000 | CLUTCH,MAGNET | Compressor (COMPRESSOR) |
| 95210-70C01-000 | CLUTCH,MAGNET | Compressor (COMPRESSOR) |
| 95261-70B00-000 | Seal, lip | Compressor (COMPRESSOR) |
| 95262-70B00-000 | O ring | Compressor (COMPRESSOR) |
| 95291-70B00-000 | FIXING PLATE | Compressor (COMPRESSOR) |
| 95298-72B20-000 | Clip kit | Compressor (COMPRESSOR) |
| 95298-72B21-000 | CLIP KIT | Compressor (COMPRESSOR) |
| 95527-72B00-000 | SWITCH,THERMAL | Compressor (COMPRESSOR) |
| 95527-72B01-000 | SWITCH,THERMAL | Compressor (COMPRESSOR) |
