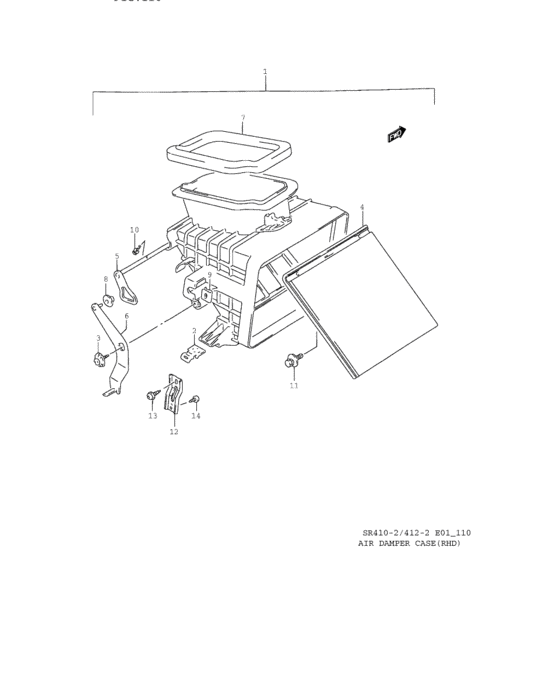

Air damper case (RHD)
21
| # | OEM | Part name |
|---|
| 1 |
74210-70B00-000 |
CASE ASSY,AIR DAMPER |
| 2 |
74151-85000-000 |
CLAMP,LOCK |
| 3 |
74183-82005-000 |
SCREW,LINK |
| 4 |
74212-70B00-000 |
DOOR,FRESH |
| 5 |
74213-70B00-000 |
SHAFT,DOOR |
| 6 |
74214-70B00-000 |
LEVER,FRESH DR |
| 7 |
74163-84101-000 |
PACKING |
| 8 |
74146-70B00-000 |
BUSH,AIR MIX LEVER |
| 9 |
74217-70B00-000 |
NUT |
| 10 |
02112-33083-000 |
Screw |
| 10 |
02112-3308A-000 |
SCREW |
| 11 |
02162-06163-000 |
Screw - Bolt |
| 11 |
02162-0616B-000 |
SCREW - Bolt, adjust |
| 12 |
74292-75F00-000 |
BRACKET,AIR INLET BOX |
| 13 |
09136-06114-000 |
SCREW(6X16) |
| 14 |
03541-05163-000 |
Screw |
| 14 |
03541-0516A-000 |
SCREW |
| 15 |
74291-75F00-000 |
Cover,air inlet box |
| 16 |
02142-06163-000 |
Screw |
| 16 |
02142-0616A-000 |
SCREW |
| 17 |
95842-75F00-000 |
BRACKET,CLG UNIT COV |
| OEM |
Part name |
Category |
| 02112-33083-000 |
Screw |
Air damper case (RHD) |
| 02112-3308A-000 |
SCREW |
Air damper case (RHD) |
| 02142-06163-000 |
Screw |
Air damper case (RHD) |
| 02142-0616A-000 |
SCREW |
Air damper case (RHD) |
| 02162-06163-000 |
Screw - Bolt |
Air damper case (RHD) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Air damper case (RHD) |
| 03541-05163-000 |
Screw |
Air damper case (RHD) |
| 03541-0516A-000 |
SCREW |
Air damper case (RHD) |
| 09136-06114-000 |
SCREW(6X16) |
Air damper case (RHD) |
| 74146-70B00-000 |
BUSH,AIR MIX LEVER |
Air damper case (RHD) |
| 74151-85000-000 |
CLAMP,LOCK |
Air damper case (RHD) |
| 74163-84101-000 |
PACKING |
Air damper case (RHD) |
| 74183-82005-000 |
SCREW,LINK |
Air damper case (RHD) |
| 74210-70B00-000 |
CASE ASSY,AIR DAMPER |
Air damper case (RHD) |
| 74212-70B00-000 |
DOOR,FRESH |
Air damper case (RHD) |
| 74213-70B00-000 |
SHAFT,DOOR |
Air damper case (RHD) |
| 74214-70B00-000 |
LEVER,FRESH DR |
Air damper case (RHD) |
| 74217-70B00-000 |
NUT |
Air damper case (RHD) |
| 74291-75F00-000 |
Cover,air inlet box |
Air damper case (RHD) |
| 74292-75F00-000 |
BRACKET,AIR INLET BOX |
Air damper case (RHD) |
| 95842-75F00-000 |
BRACKET,CLG UNIT COV |
Air damper case (RHD) |
