Search › Model › SR306
SR306

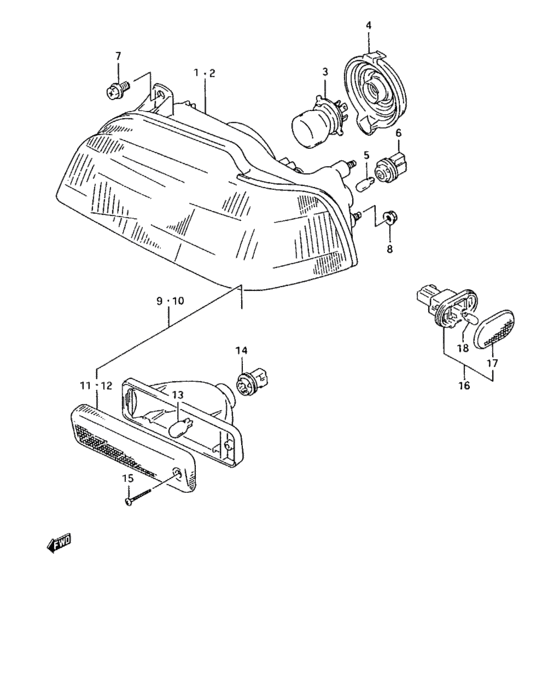

Front lamp (FRONT LAMP) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-60D01-000 | UNIT,HEADLAMP,R |
| 2 | 35320-60D01-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12126-000 | BULB(12V65/60W) |
| 4 | 35125-60D00-000 | カバー,ソケット |
| 4 | 35125-70G10-000 | COVER,SOCKET |
| 5 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 5 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 6 | 36118-76B00-000 | SOCKET |
| 7 | 09136-06112-000 | BOLT(6X16) |
| 7 | 09116-06004-000 | ボルト,6X16 |
| 7 | 09116-06024-000 | BOLT(6X16) |
| 8 | 08316-10063-000 | Nut |
| 8 | 08316-1006B-000 | NUT |
| 9 | 35601-70B01-000 | LAMP ASSY,FR TURN SIG,R |
| 10 | 35602-70B01-000 | LAMP ASSY,FR TURN SIG,L |
| 11 | 35612-70B00-000 | LENS,FR TURN,R |
| 11 | 35612-70B10-000 | LENS,FR TURN,R |
| 12 | 35632-70B00-000 | LENS,FR TURN,L |
| 12 | 35632-70B10-000 | LENS,FR TURN,L |
| 13 | 09471-12146-000 | BULB(12V16W) - Bulb (12v18w) |
| 14 | 35618-70B20-000 | Socket |
| 14 | 35618-70B00-000 | SOCKET,LAMP |
| 15 | 35625-85010-000 | SCREW |
| 16 | 36410-50E00-000 | ランプアッシ,サイドターンシグナル |
| 16 | 36410-50E01-000 | LAMP,SIDE TURN(HSG |
| 17 | 36412-70B00-000 | LENS,SIDE TURN (AMBER) |
| OEM | Part name | Category |
|---|---|---|
| 08316-10063-000 | Nut | Front lamp (FRONT LAMP) |
| 08316-1006B-000 | NUT | Front lamp (FRONT LAMP) |
| 09116-06004-000 | ボルト,6X16 | Front lamp (FRONT LAMP) |
| 09116-06024-000 | BOLT(6X16) | Front lamp (FRONT LAMP) |
| 09136-06112-000 | BOLT(6X16) | Front lamp (FRONT LAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Front lamp (FRONT LAMP) |
| 09471-12126-000 | BULB(12V65/60W) | Front lamp (FRONT LAMP) |
| 09471-12146-000 | BULB(12V16W) - Bulb (12v18w) | Front lamp (FRONT LAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Front lamp (FRONT LAMP) |
| 35120-60D01-000 | UNIT,HEADLAMP,R | Front lamp (FRONT LAMP) |
| 35125-60D00-000 | カバー,ソケット | Front lamp (FRONT LAMP) |
| 35125-70G10-000 | COVER,SOCKET | Front lamp (FRONT LAMP) |
| 35320-60D01-000 | UNIT,HEADLAMP,L | Front lamp (FRONT LAMP) |
| 35601-70B01-000 | LAMP ASSY,FR TURN SIG,R | Front lamp (FRONT LAMP) |
| 35602-70B01-000 | LAMP ASSY,FR TURN SIG,L | Front lamp (FRONT LAMP) |
| 35612-70B00-000 | LENS,FR TURN,R | Front lamp (FRONT LAMP) |
| 35612-70B10-000 | LENS,FR TURN,R | Front lamp (FRONT LAMP) |
| 35618-70B00-000 | SOCKET,LAMP | Front lamp (FRONT LAMP) |
| 35618-70B20-000 | Socket | Front lamp (FRONT LAMP) |
| 35625-85010-000 | SCREW | Front lamp (FRONT LAMP) |
| 35632-70B00-000 | LENS,FR TURN,L | Front lamp (FRONT LAMP) |
| 35632-70B10-000 | LENS,FR TURN,L | Front lamp (FRONT LAMP) |
| 36118-76B00-000 | SOCKET | Front lamp (FRONT LAMP) |
| 36410-50E00-000 | ランプアッシ,サイドターンシグナル | Front lamp (FRONT LAMP) |
| 36410-50E01-000 | LAMP,SIDE TURN(HSG | Front lamp (FRONT LAMP) |
| 36412-70B00-000 | LENS,SIDE TURN (AMBER) | Front lamp (FRONT LAMP) |
