Search › Model › SR306
SR306

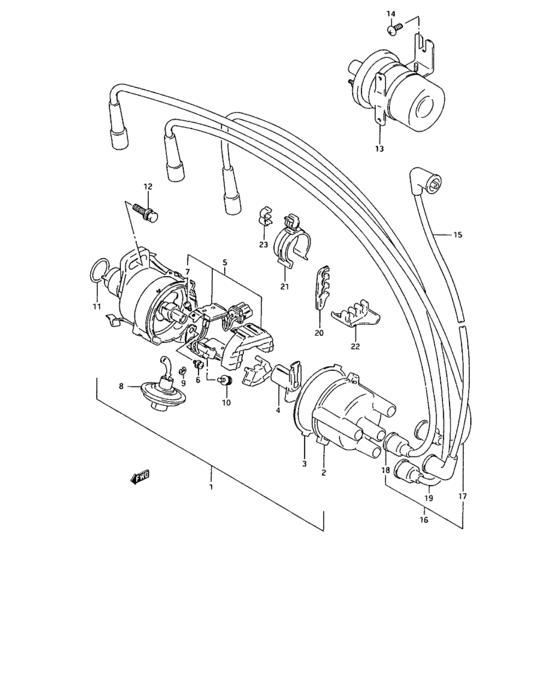

Distributor 29
| # | OEM | Part name |
|---|---|---|
| 1 | 33100-60D12-000 | Distributor assy |
| 2 | 33321-79611-000 | CAP |
| 3 | 33324-79610-000 | PACKING,CAP |
| 4 | 33310-82010-000 | ROTOR ASSY |
| 5 | 33370-60D10-000 | Igniter assy |
| 6 | 33151-80020-000 | SCREW,IGNITER |
| 7 | 02112-34083-000 | Screw |
| 7 | 02112-3408A-000 | SCREW |
| 8 | 33230-60D11-000 | Controller assy,vacuum |
| 9 | 33239-76410-000 | E-RING |
| 10 | 33239-82110-000 | SCREW,VACUUM CONTROLLER |
| 11 | 33278-54E10-000 | O-RING |
| 12 | 09118-08110-000 | ボルト,8X30 |
| 12 | 09138-08003-000 | SCREW(8X30) |
| 13 | 33410-71C10-000 | COIL ASSY,IGNITION |
| 14 | 02142-06103-000 | Screw |
| 14 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft |
| 14 | 02142-0610A-000 | SCREW |
| 15 | 33710-60B10-000 | コード,ハイテンション,NO.1 |
| 15 | 33710-60E10-000 | CORD,HIGH TENSION |
| 16 | 33705-71B10-000 | CORD SET,HIGH TENSION |
| 17 | 33730-60C30-000 | CORD,HT NO.2 |
| 18 | 33740-71B10-000 | コード,ハイテンション,NO.3 |
| 19 | 33750-71B10-000 | コード,ハイテンション,NO.4 |
| 20 | 33881-82011-000 | CLAMP,HIGH TENSION CORD |
| 21 | 33881-86150-000 | CLAMP,HT CORD |
| 22 | 33882-81011-000 | PROTECTOR,HIGH TENSION CORD |
| 23 | 09408-00034-000 | クリップ |
| 23 | 09408-00035-000 | CLIP - Clamp |
| OEM | Part name | Category |
|---|---|---|
| 02112-34083-000 | Screw | Distributor |
| 02112-3408A-000 | SCREW | Distributor |
| 02142-06103-000 | Screw | Distributor |
| 02142-0610A-000 | SCREW | Distributor |
| 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | Distributor |
| 09118-08110-000 | ボルト,8X30 | Distributor |
| 09138-08003-000 | SCREW(8X30) | Distributor |
| 09408-00034-000 | クリップ | Distributor |
| 09408-00035-000 | CLIP - Clamp | Distributor |
| 33100-60D12-000 | Distributor assy | Distributor |
| 33151-80020-000 | SCREW,IGNITER | Distributor |
| 33230-60D11-000 | Controller assy,vacuum | Distributor |
| 33239-76410-000 | E-RING | Distributor |
| 33239-82110-000 | SCREW,VACUUM CONTROLLER | Distributor |
| 33278-54E10-000 | O-RING | Distributor |
| 33310-82010-000 | ROTOR ASSY | Distributor |
| 33321-79611-000 | CAP | Distributor |
| 33324-79610-000 | PACKING,CAP | Distributor |
| 33370-60D10-000 | Igniter assy | Distributor |
| 33410-71C10-000 | COIL ASSY,IGNITION | Distributor |
| 33705-71B10-000 | CORD SET,HIGH TENSION | Distributor |
| 33710-60B10-000 | コード,ハイテンション,NO.1 | Distributor |
| 33710-60E10-000 | CORD,HIGH TENSION | Distributor |
| 33730-60C30-000 | CORD,HT NO.2 | Distributor |
| 33740-71B10-000 | コード,ハイテンション,NO.3 | Distributor |
| 33750-71B10-000 | コード,ハイテンション,NO.4 | Distributor |
| 33881-82011-000 | CLAMP,HIGH TENSION CORD | Distributor |
| 33881-86150-000 | CLAMP,HT CORD | Distributor |
| 33882-81011-000 | PROTECTOR,HIGH TENSION CORD | Distributor |
