Search › Model › SR306
SR306

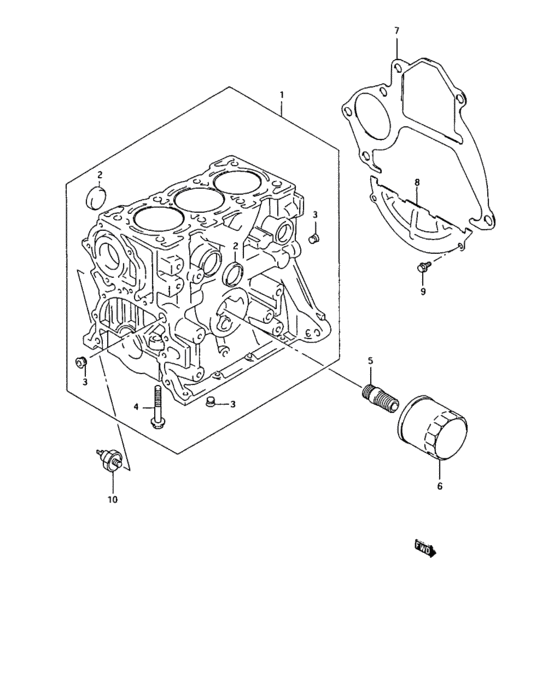

Cylinder (CYLINDER) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-53F10-000 | ブロックアッシ,シリンダ |
| 1 | 11200-76GV1-000 | BLOCK ASSY,CYLINDER |
| 2 | 09241-30009-000 | Plug - Plug (od:30) |
| 2 | 09241-30010-000 | PLUG |
| 3 | 09246-06002-000 | PLUG |
| 3 | 09246-08007-000 | PLUG |
| 4 | 09103-10022-000 | BOLT(10X54) |
| 5 | 11241-73003-000 | STAND,OIL FILTER |
| 6 | 16510-82702-000 | Filter, oil |
| 6 | 16510-60B00-CDN | Oil Filter |
| 6 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 7 | 11311-60D11-000 | プレート,クラッチハウジング,アッパ |
| 7 | 11311-60D14-000 | PLATE,CLUTCH HSG UPPER |
| 8 | 11321-70B00-000 | プレート,クラッチハウジング,ロア |
| 8 | 11320-78G00-000 | PLATE,CLUTCH HSG LOWER |
| 9 | 01550-06103-000 | Bolt, front |
| 9 | 01550-0610B-000 | Bolt |
| 9 | 01550-0610A-000 | Bolt |
| 10 | 37820-82001-000 | Switch assy, oil pressure |
| 10 | 37820-820P0-000 | SWITCH ASSY,OIL PRESSURE |
| OEM | Part name | Category |
|---|---|---|
| 01550-06103-000 | Bolt, front | Cylinder (CYLINDER) |
| 01550-0610A-000 | Bolt | Cylinder (CYLINDER) |
| 01550-0610B-000 | Bolt | Cylinder (CYLINDER) |
| 09103-10022-000 | BOLT(10X54) | Cylinder (CYLINDER) |
| 09241-30009-000 | Plug - Plug (od:30) | Cylinder (CYLINDER) |
| 09241-30010-000 | PLUG | Cylinder (CYLINDER) |
| 09246-06002-000 | PLUG | Cylinder (CYLINDER) |
| 09246-08007-000 | PLUG | Cylinder (CYLINDER) |
| 11200-53F10-000 | ブロックアッシ,シリンダ | Cylinder (CYLINDER) |
| 11200-76GV1-000 | BLOCK ASSY,CYLINDER | Cylinder (CYLINDER) |
| 11241-73003-000 | STAND,OIL FILTER | Cylinder (CYLINDER) |
| 11311-60D11-000 | プレート,クラッチハウジング,アッパ | Cylinder (CYLINDER) |
| 11311-60D14-000 | PLATE,CLUTCH HSG UPPER | Cylinder (CYLINDER) |
| 11320-78G00-000 | PLATE,CLUTCH HSG LOWER | Cylinder (CYLINDER) |
| 11321-70B00-000 | プレート,クラッチハウジング,ロア | Cylinder (CYLINDER) |
| 16510-60B00-CDN | Oil Filter | Cylinder (CYLINDER) |
| 16510-82702-000 | Filter, oil | Cylinder (CYLINDER) |
| 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | Cylinder (CYLINDER) |
| 37820-82001-000 | Switch assy, oil pressure | Cylinder (CYLINDER) |
| 37820-820P0-000 | SWITCH ASSY,OIL PRESSURE | Cylinder (CYLINDER) |
