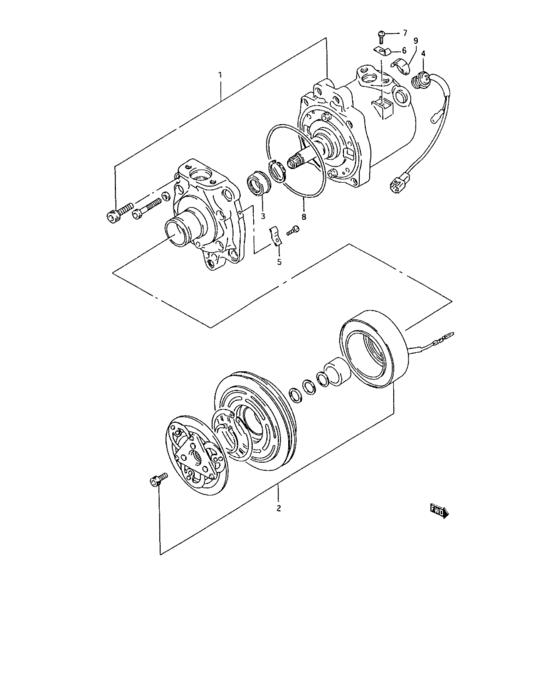

Compressor (COMPRESSOR)
32
| # | OEM | Part name |
|---|
| 0 |
95200-55C02-000 |
Compressor & magnet clutch |
| 0 |
95200-71B10-000 |
コンプレッサ/マグネットクラッチ |
| 0 |
95200-71BV0-000 |
COMPRESSOR ASSY |
| 0 |
95200-71B93-000 |
コンプレッサ/マグネットクラッチ |
| 0 |
95200-72B00-000 |
Compressor & magnet clutch |
| 0 |
95200-77G10-000 |
COMPRESSOR ASSY |
| 1 |
95230-55C10-000 |
Compressor |
| 1 |
95230-70B04-000 |
コンプレッサ |
| 1 |
95230-72B00-000 |
Compressor |
| 1 |
95230-71B90-000 |
Compressor |
| 1 |
95230-71B10-000 |
Compressor |
| 2 |
95210-70B04-000 |
Clutch assy,magnet |
| 2 |
95210-70B05-000 |
CLUTCH,MAGNET |
| 2 |
95210-71B02-000 |
クラッチ,マグネット |
| 2 |
95210-71B10-000 |
CLUTCH,MAGNET |
| 3 |
95261-70B00-000 |
Seal, lip |
| 3 |
95261-71B00-000 |
シール |
| 3 |
95261-71B10-000 |
SEAL,SHAFT |
| 4 |
95527-70B02-000 |
SWITCH,THERMAL |
| 4 |
95527-72B00-000 |
SWITCH,THERMAL |
| 4 |
95527-72B01-000 |
SWITCH,THERMAL |
| 4 |
95527-71B00-000 |
スイッチ,サーマル |
| 4 |
95527-71B10-000 |
SWITCH,THERMAL |
| 5 |
95291-70B00-000 |
FIXING PLATE |
| 6 |
95293-60D00-000 |
Clamp, Cable |
| 7 |
02112-34083-000 |
Screw |
| 7 |
02112-3408A-000 |
SCREW |
| 8 |
95237-60D00-000 |
Oリング |
| 8 |
95262-70B00-000 |
O ring |
| 8 |
95237-71B00-000 |
O ring |
| 8 |
95237-71B10-000 |
O-RING |
| 9 |
95279-71B10-000 |
キャップ |
| OEM |
Part name |
Category |
| 02112-34083-000 |
Screw |
Compressor (COMPRESSOR) |
| 02112-3408A-000 |
SCREW |
Compressor (COMPRESSOR) |
| 95200-55C02-000 |
Compressor & magnet clutch |
Compressor (COMPRESSOR) |
| 95200-71B10-000 |
コンプレッサ/マグネットクラッチ |
Compressor (COMPRESSOR) |
| 95200-71B93-000 |
コンプレッサ/マグネットクラッチ |
Compressor (COMPRESSOR) |
| 95200-71BV0-000 |
COMPRESSOR ASSY |
Compressor (COMPRESSOR) |
| 95200-72B00-000 |
Compressor & magnet clutch |
Compressor (COMPRESSOR) |
| 95200-77G10-000 |
COMPRESSOR ASSY |
Compressor (COMPRESSOR) |
| 95210-70B04-000 |
Clutch assy,magnet |
Compressor (COMPRESSOR) |
| 95210-70B05-000 |
CLUTCH,MAGNET |
Compressor (COMPRESSOR) |
| 95210-71B02-000 |
クラッチ,マグネット |
Compressor (COMPRESSOR) |
| 95210-71B10-000 |
CLUTCH,MAGNET |
Compressor (COMPRESSOR) |
| 95230-55C10-000 |
Compressor |
Compressor (COMPRESSOR) |
| 95230-70B04-000 |
コンプレッサ |
Compressor (COMPRESSOR) |
| 95230-71B10-000 |
Compressor |
Compressor (COMPRESSOR) |
| 95230-71B90-000 |
Compressor |
Compressor (COMPRESSOR) |
| 95230-72B00-000 |
Compressor |
Compressor (COMPRESSOR) |
| 95237-60D00-000 |
Oリング |
Compressor (COMPRESSOR) |
| 95237-71B00-000 |
O ring |
Compressor (COMPRESSOR) |
| 95237-71B10-000 |
O-RING |
Compressor (COMPRESSOR) |
| 95261-70B00-000 |
Seal, lip |
Compressor (COMPRESSOR) |
| 95261-71B00-000 |
シール |
Compressor (COMPRESSOR) |
| 95261-71B10-000 |
SEAL,SHAFT |
Compressor (COMPRESSOR) |
| 95262-70B00-000 |
O ring |
Compressor (COMPRESSOR) |
| 95279-71B10-000 |
キャップ |
Compressor (COMPRESSOR) |
| 95291-70B00-000 |
FIXING PLATE |
Compressor (COMPRESSOR) |
| 95293-60D00-000 |
Clamp, Cable |
Compressor (COMPRESSOR) |
| 95527-70B02-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
| 95527-71B00-000 |
スイッチ,サーマル |
Compressor (COMPRESSOR) |
| 95527-71B10-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
| 95527-72B00-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
| 95527-72B01-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
