SQ625W

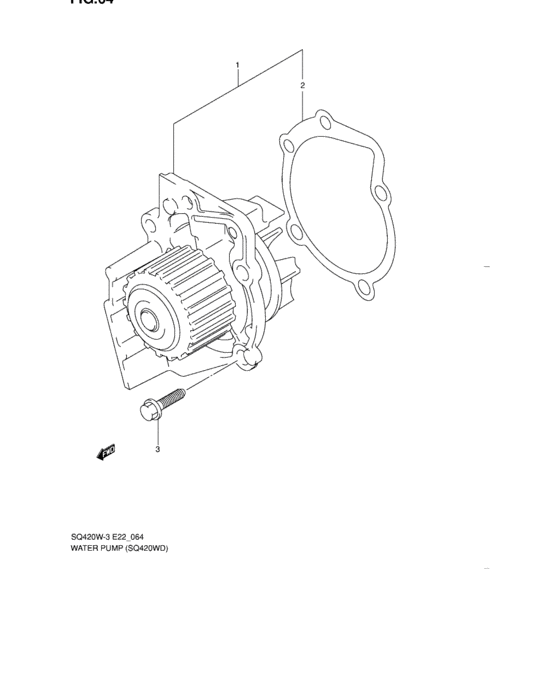

Water pump (SQ420WD) 4
| # | OEM | Part name |
|---|---|---|
| 1 | 17410-67G00-000 | PUMP ASSY,WATER |
| 2 | 17431-66G00-000 | Gasket |
| 2 | 17431-66G01-000 | GASKET,WATER PUMP |
| 3 | 16117-67J00-000 | BOLT,7X18 |
| OEM | Part name | Category |
|---|---|---|
| 16117-67J00-000 | BOLT,7X18 | Water pump (SQ420WD) |
| 17410-67G00-000 | PUMP ASSY,WATER | Water pump (SQ420WD) |
| 17431-66G00-000 | Gasket | Water pump (SQ420WD) |
| 17431-66G01-000 | GASKET,WATER PUMP | Water pump (SQ420WD) |
