Search › Model › SQ625W
SQ625W

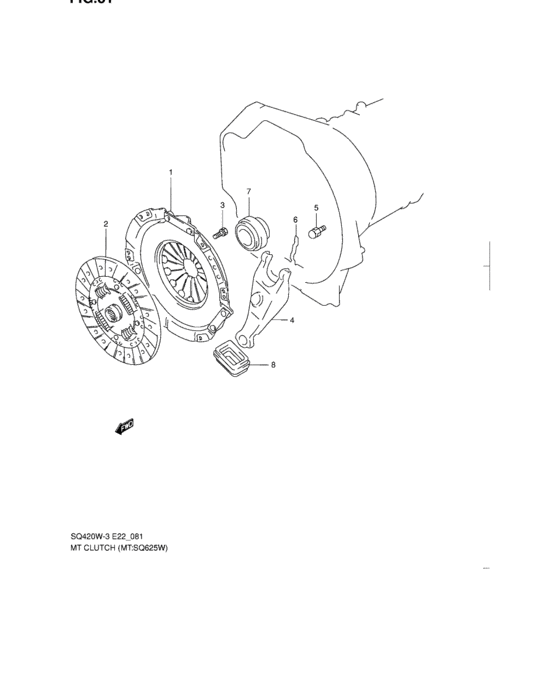

Mt clutch (MT:SQ625W) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-67D01-000 | Cover assy, clutch |
| 1 | 22100-67D02-000 | COVER ASSY,CLUTCH |
| 2 | 22400-67D03-000 | DISC,CLUTCH |
| 2 | 22400-67811-000 | DISC&COVER SET |
| 3 | 09117-08096-000 | BOLT(8X16) |
| 4 | 23211-85F01-000 | FORK,CLUTCH RELEASE |
| 5 | 23221-78A00-000 | SUPPORT,CLUTCH RELEASE FORK |
| 6 | 23241-50F00-000 | CLIP,CLUTCH RELEASE FORK |
| 7 | 23265-65D00-000 | BEARING,CLUTCH RELEASE |
| 8 | 23268-50F01-000 | BOOT,CLUTCH RELEASE FORK |
| OEM | Part name | Category |
|---|---|---|
| 09117-08096-000 | BOLT(8X16) | Mt clutch (MT:SQ625W) |
| 22100-67D01-000 | Cover assy, clutch | Mt clutch (MT:SQ625W) |
| 22100-67D02-000 | COVER ASSY,CLUTCH | Mt clutch (MT:SQ625W) |
| 22400-67811-000 | DISC&COVER SET | Mt clutch (MT:SQ625W) |
| 22400-67D03-000 | DISC,CLUTCH | Mt clutch (MT:SQ625W) |
| 23211-85F01-000 | FORK,CLUTCH RELEASE | Mt clutch (MT:SQ625W) |
| 23221-78A00-000 | SUPPORT,CLUTCH RELEASE FORK | Mt clutch (MT:SQ625W) |
| 23241-50F00-000 | CLIP,CLUTCH RELEASE FORK | Mt clutch (MT:SQ625W) |
| 23265-65D00-000 | BEARING,CLUTCH RELEASE | Mt clutch (MT:SQ625W) |
| 23268-50F01-000 | BOOT,CLUTCH RELEASE FORK | Mt clutch (MT:SQ625W) |
