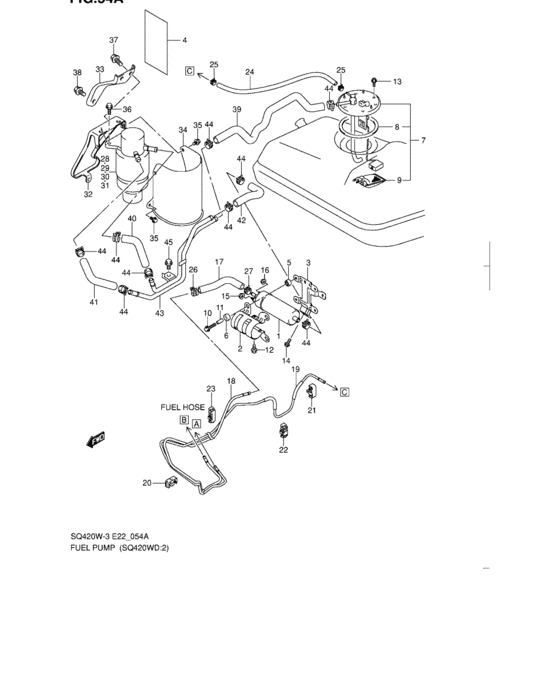

Fuel Pump (SQ420WD:Chile) 62
#OEMPart name
1 15100-68DB1-000 PUMP ASSY,FUEL
2 15115-68DA0-000 BRACKET,FUEL PUMP NO.1
3 15116-68DA1-000 BRACKET,FUEL PUMP NO.2
4 15117-68DA0-000 PROTECTOR,FUEL PUMP
5 15118-68DA1-000 BUSH,FUEL PUMP NO.1
6 15119-68DA1-000 BUSH,FUEL PUMP NO.2
7 15190-68DB0-000 PIPE,FUEL TANK OUTLET
8 15111-65D00-000 GASKET,FUEL PUMP
9 15195-68DA0-000 FILTER,FUEL SUCTION
10 09116-06171-000 BOLT(6X30) - Bolt (6x30)
11 09180-06338-000 SPACER(6.1X8X14.5)
12 01550-06453-000 Bolt - Bolt (6x45)
12 01550-0645A-000 Bolt
13 02162-06103-000 Bolt - Bolt, bracket
13 02162-0610A-000 SCREW
14 02162-06123-000 Bolt (6x12)
14 02162-0612B-000 SCREW - Bolt
14 02162-0612A-000 SCREW - Bolt, bracket
15 08316-10043-000 Nut
15 08316-1004B-000 NUT
16 08316-10053-000 Nut
16 08316-1005A-000 NUT
17 15816-68DA0-000 HOSE,FUEL PUMP OUTLET
18 15821-68DA1-000 PIPE,FUEL
19 15861-68D02-000 PIPE,FUEL RTN
20 15892-78E10-000 CLAMP,FUEL PIPE
21 15893-56B00-000 CLAMP,FUEL PIPE
22 15893-60A11-000 CLAMP,FUEL PIPE
23 15895-60A11-000 CLAMP,FUEL PIPE
24 09356-55117-600 HOSE(5.5X11.5X600) - Hose, fuel rtn (body side)
25 09401-10409-000 CLIP
26 09401-13419-000 CLIP
27 09401-13420-000 CLAMP
28 15410-68DA0-000 FILTER,FUEL
29 15411-68DA0-000 CARTRIDGE ASSY,FUEL FILTER
30 15412-68DA0-000 CAP,FUEL FILTER
31 15413-68DA0-000 PLUG SET,FUEL FILTER
32 15415-68DB0-000 BRACKET,FILTER NO.1
33 15416-68DB0-000 BRACKET,FILTER NO.2
34 15417-68DB0-000 COVER,FUEL FILTER
35 01550-06123-000 Bolt
35 01550-0612B-000 Bolt - Bolt, clamp
35 01550-0612A-000 Bolt
36 01550-08253-000 Bolt, rear
36 01550-0825B-000 Bolt
36 01550-0825A-000 Bolt
37 01550-10253-000 Bolt - Bolt, rr swgarm bracket
37 01550-1025B-000 Bolt - Bolt, rr swgarm bracket, l
37 01550-1025A-000 Bolt - Bolt, drive gear
38 01551-10203-000 Bolt, 3rd striker
38 01551-1020A-000 Bolt
39 15811-68DA0-000 Hose, fuel - Tank to pipe
39 15811-68DA1-000 HOSE,FUEL TANK TO PIPE
40 15812-68DB0-000 Hose, fuel - Pipe to fltr
41 15813-68DB0-000 Hose, fuel - Fltr to pipe
42 15814-68DA0-000 Hose, fuel - Pipe to pump
42 15814-68DA1-000 HOSE,FUEL PIPE TO PUMP
43 15830-68DB0-000 PIPE,FUEL FLTR SIDE
44 09401-18407-000 CLAMP
45 01550-08163-000 Bolt, holder
45 01550-0816B-000 Bolt
45 01550-0816A-000 Bolt - Bolt, rear
