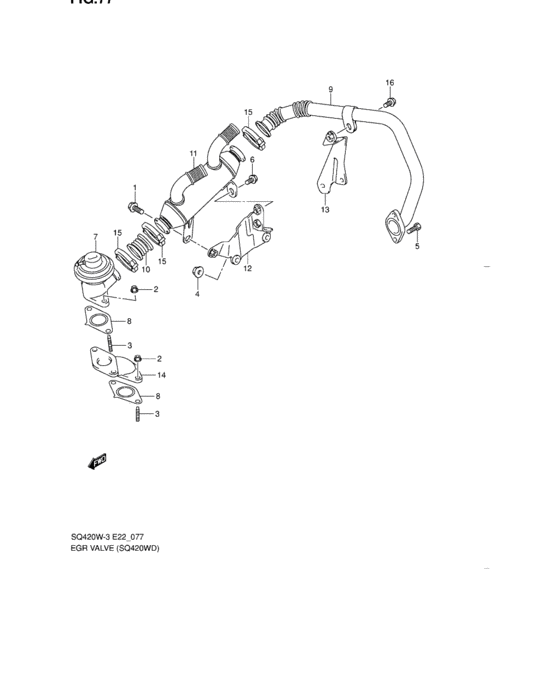

Egr valve (SQ420WD)
20
| # | OEM | Part name |
|---|
| 1 |
09103-08334-000 |
BOLT(8X16) |
| 2 |
13966-67G00-000 |
NUT,M6 |
| 3 |
13967-67G00-000 |
STUD BOLT,M6 |
| 4 |
09159-08083-000 |
NUT |
| 5 |
16123-67G00-000 |
BOLT,M6 |
| 6 |
16937-67G00-000 |
BOLT,I/CLR BRKT ENG SIDE |
| 7 |
18111-67G00-000 |
VALVE,EGR |
| 8 |
18529-67G00-000 |
GASKET |
| 9 |
18530-67G01-000 |
PIPE,EGR |
| 10 |
18530-67G10-000 |
PIPE,EGR NO.2 |
| 11 |
18534-67G00-000 |
COOLER,EGR |
| 12 |
18535-68DA0-000 |
Bracket,egr |
| 12 |
18535-68DB0-000 |
BRACKET,EGR |
| 13 |
18536-67G00-000 |
BRACKET,EGR |
| 14 |
18539-67G00-000 |
SPACER,EGR VALVE |
| 15 |
18540-67G00-000 |
CLAMP,EGR PIPE |
| 15 |
18535-66G00-000 |
CLAMP |
| 16 |
02162-06123-000 |
Bolt (6x12) |
| 16 |
02162-0612B-000 |
SCREW - Bolt |
| 16 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| OEM |
Part name |
Category |
| 02162-06123-000 |
Bolt (6x12) |
Egr valve (SQ420WD) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Egr valve (SQ420WD) |
| 02162-0612B-000 |
SCREW - Bolt |
Egr valve (SQ420WD) |
| 09103-08334-000 |
BOLT(8X16) |
Egr valve (SQ420WD) |
| 09159-08083-000 |
NUT |
Egr valve (SQ420WD) |
| 13966-67G00-000 |
NUT,M6 |
Egr valve (SQ420WD) |
| 13967-67G00-000 |
STUD BOLT,M6 |
Egr valve (SQ420WD) |
| 16123-67G00-000 |
BOLT,M6 |
Egr valve (SQ420WD) |
| 16937-67G00-000 |
BOLT,I/CLR BRKT ENG SIDE |
Egr valve (SQ420WD) |
| 18111-67G00-000 |
VALVE,EGR |
Egr valve (SQ420WD) |
| 18529-67G00-000 |
GASKET |
Egr valve (SQ420WD) |
| 18530-67G01-000 |
PIPE,EGR |
Egr valve (SQ420WD) |
| 18530-67G10-000 |
PIPE,EGR NO.2 |
Egr valve (SQ420WD) |
| 18534-67G00-000 |
COOLER,EGR |
Egr valve (SQ420WD) |
| 18535-66G00-000 |
CLAMP |
Egr valve (SQ420WD) |
| 18535-68DA0-000 |
Bracket,egr |
Egr valve (SQ420WD) |
| 18535-68DB0-000 |
BRACKET,EGR |
Egr valve (SQ420WD) |
| 18536-67G00-000 |
BRACKET,EGR |
Egr valve (SQ420WD) |
| 18539-67G00-000 |
SPACER,EGR VALVE |
Egr valve (SQ420WD) |
| 18540-67G00-000 |
CLAMP,EGR PIPE |
Egr valve (SQ420WD) |
