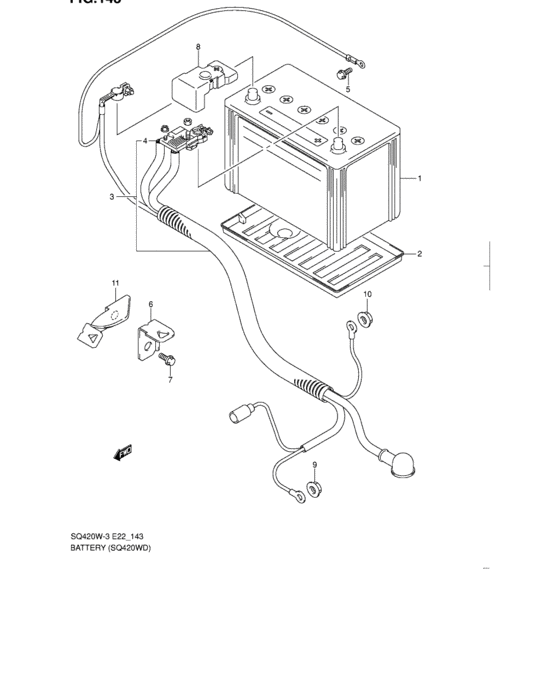

Battery (SQ420WD)
22
| # | OEM | Part name |
|---|
| 1 |
33610-77EV0-000 |
Battery assy |
| 2 |
33660-77E90-000 |
TRAY,BATTERY |
| 2 |
33660-78E00-000 |
TRAY,BATTERY |
| 3 |
33800-53J10-000 |
CABLE ASSY,BTRY |
| 3 |
33800-53J11-000 |
CABLE ASSY,BATTERY |
| 3 |
33800-53J50-000 |
CABLE ASSY,BTRY |
| 3 |
33800-53J00-000 |
CABLE ASSY,BTRY |
| 3 |
33800-53J20-000 |
CABLE ASSY,BATTERY |
| 3 |
33800-53J40-000 |
CABLE ASSY,BTRY |
| 4 |
36739-53J00-000 |
FUSE,BATTERY CABLE 140A |
| 4 |
36739-53J10-000 |
FUSE,BATTERY |
| 5 |
09115-06001-000 |
Bolt, lh - Bolt (6x16) |
| 5 |
09115-06005-000 |
BOLT(6X16) |
| 6 |
33801-68D00-000 |
BRACKET,BTRY CABLE |
| 7 |
01550-06123-000 |
Bolt |
| 7 |
01550-0612B-000 |
Bolt - Bolt, clamp |
| 7 |
01550-0612A-000 |
Bolt |
| 8 |
36694-50J00-000 |
COVER,BTRY TERMINAL |
| 8 |
36694-53J00-000 |
COVER,BTRY TERMINAL |
| 9 |
08316-10083-000 |
Nut |
| 9 |
08316-1008B-000 |
NUT |
| 11 |
33801-53J01-000 |
BRACKET,BTRY CABLE |
| OEM |
Part name |
Category |
| 01550-06123-000 |
Bolt |
Battery (SQ420WD) |
| 01550-0612A-000 |
Bolt |
Battery (SQ420WD) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
Battery (SQ420WD) |
| 08316-10083-000 |
Nut |
Battery (SQ420WD) |
| 08316-1008B-000 |
NUT |
Battery (SQ420WD) |
| 09115-06001-000 |
Bolt, lh - Bolt (6x16) |
Battery (SQ420WD) |
| 09115-06005-000 |
BOLT(6X16) |
Battery (SQ420WD) |
| 33610-77EV0-000 |
Battery assy |
Battery (SQ420WD) |
| 33660-77E90-000 |
TRAY,BATTERY |
Battery (SQ420WD) |
| 33660-78E00-000 |
TRAY,BATTERY |
Battery (SQ420WD) |
| 33800-53J00-000 |
CABLE ASSY,BTRY |
Battery (SQ420WD) |
| 33800-53J10-000 |
CABLE ASSY,BTRY |
Battery (SQ420WD) |
| 33800-53J11-000 |
CABLE ASSY,BATTERY |
Battery (SQ420WD) |
| 33800-53J20-000 |
CABLE ASSY,BATTERY |
Battery (SQ420WD) |
| 33800-53J40-000 |
CABLE ASSY,BTRY |
Battery (SQ420WD) |
| 33800-53J50-000 |
CABLE ASSY,BTRY |
Battery (SQ420WD) |
| 33801-53J01-000 |
BRACKET,BTRY CABLE |
Battery (SQ420WD) |
| 33801-68D00-000 |
BRACKET,BTRY CABLE |
Battery (SQ420WD) |
| 36694-50J00-000 |
COVER,BTRY TERMINAL |
Battery (SQ420WD) |
| 36694-53J00-000 |
COVER,BTRY TERMINAL |
Battery (SQ420WD) |
| 36739-53J00-000 |
FUSE,BATTERY CABLE 140A |
Battery (SQ420WD) |
| 36739-53J10-000 |
FUSE,BATTERY |
Battery (SQ420WD) |
