SQ625W

Suzuki GRAND-VITARA · 5,888 parts · 262 categories
SQ625W ×

← Back to categories

5,888 items

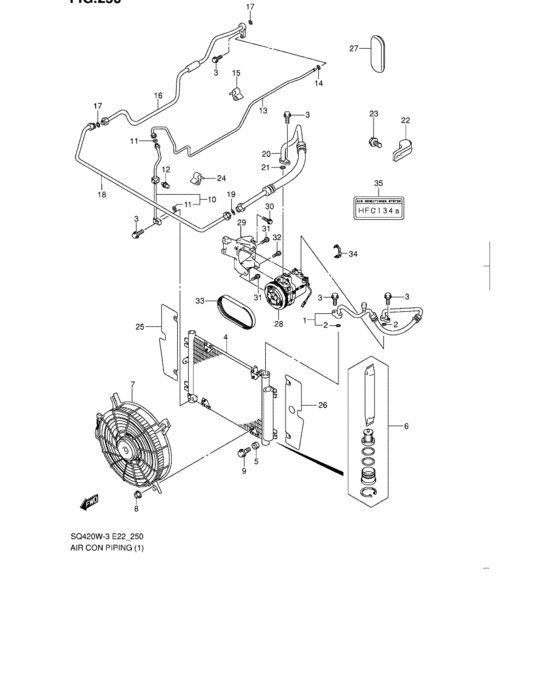

Air con piping (SQ420W:LHD) 50
#OEMPart name
0 95000-50J11-000 AIR CONDITIONER SET
1 95720-65D01-000 HOSE,DISCHARGE
2 95895-50G00-000 O-RING,D:2.4 ID:10.8
3 01550-06203-000 Bolt
3 01550-0620B-000 Bolt - Bolt, inspection cap
4 95310-65D12-000 Condenser comp
4 95310-65D13-000 CONDENSER
5 95851-60B00-000 BUSH,COND
6 95339-65D00-000 DRYER CONDENSER
6 95339-58J10-000 DRYER KIT
7 95560-65D03-000 CONDENSER FAN ASSY
8 08316-10063-000 Nut
8 08316-1006B-000 NUT
9 09116-06129-000 BOLT(6X30)
10 95732-65D30-000 Pipe,cond outlet
10 95732-65D31-000 PIPE,CONDENSER OUTLET
11 95891-50G00-000 O-RING,D:1.8 ID:6.7
12 95526-50G10-000 Switch, dual pressure
12 95526-50G30-000 SWITCH,DUAL PRESSURE
13 95731-65D11-000 PIPE,LIQUID
15 09403-08406-000 CLAMP
16 95743-65D11-000 PIPE,EVAPORATOR OUTLET
17 95896-50G00-000 O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)
18 95742-65D11-000 PIPE,SUCTION
18 95742-65D10-CDN New Genuine Part
20 95710-65D10-000 Hose,suction
20 95710-65D11-000 HOSE,SUCTION
22 95777-60A51-000 CLAMP,SUCT PIPE
23 02162-06123-000 Bolt (6x12)
23 02162-0612B-000 SCREW - Bolt
23 02162-0612A-000 SCREW - Bolt, bracket
24 09403-16410-000 CLAMP
25 95821-65D00-000 INSULATOR,RDTR SIDE,R
26 95822-65D00-000 INSULATOR,RDTR SIDE,L
27 95831-54J00-000 GROMMET,A/C HOLE
28 95200-70CF0-000 コンプレッサアッシ,A/C
28 99000-99088-70C COMPRESSOR ASSY
28 95200-70CF1-000 AC COMPRESSOR ASSY
29 95110-77E52-000 BRACKET,COMPRESSOR
30 01550-10353-000 Bolt
30 01550-1035A-000 Bolt - Bolt, fr fork upper
31 01550-08253-000 Bolt, rear
31 01550-0825B-000 Bolt
31 01550-0825A-000 Bolt
32 01550-08353-000 Bolt, rear
32 01550-0835B-000 Bolt
32 01550-0835A-000 Bolt
33 95141-60G90-000 V-BELT,5PK1650
34 09408-00184-000 CLAMP
35 95955-72B00-000 LABEL,REFRIGERANT
