Search › Model › SQ625L

SQ625L

Suzuki GRAND-VITARA · 2,612 parts · 128 categories

2,612 items

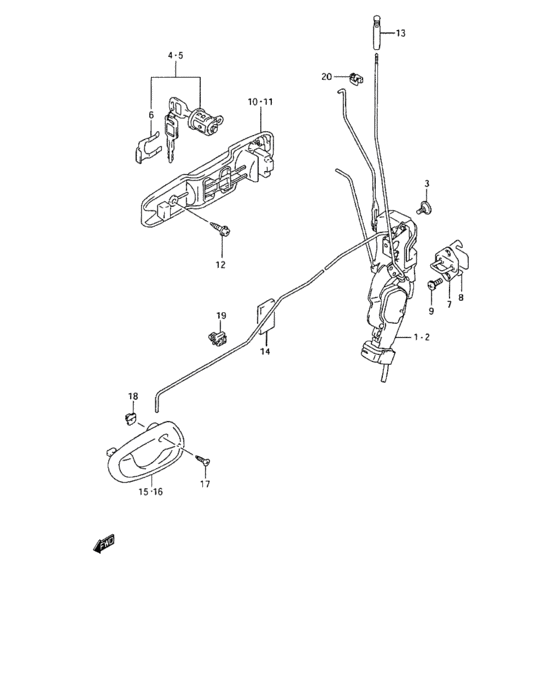

Front door lock (FRONT DOOR LOCK) 28

#	OEM	Part name
1	82201-67D20-000	Latch assy, door rh
1	82201-67D30-000	Latch assy, door rh
2	82202-67D20-000	Latch assy, door lh
2	82202-67D30-000	Latch assy, door lh
3	82291-65D10-000	スクリュ,フロントドアラッチ
3	82291-65D11-000	SCREW
4	82270-67820-000	CYLINDER,FR DR LATCH LOCK,R
5	82280-67820-000	CYLINDER,FR DR LATCH LOCK,L
6	82291-70B00-000	RETAINER,CYLINDER
7	82610-67D00-000	Striker, door latch
7	82610-60A01-000	STRIKER,FR DOOR LATCH
8	78199-78000-000	SPACER,DOOR LOCK STRIKER
9	09137-08011-000	SCREW(8X18)
10	82810-67D00-5PK	HANDLE,SIDE DOOR OUT,R
11	82820-67D00-5PK	HANDLE,SIDE DOOR OUT,LH
12	02162-06123-000	Bolt (6x12)
12	02162-0612B-000	SCREW - Bolt
12	02162-0612A-000	SCREW - Bolt, bracket
13	82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)
14	77591-75000-000	PAD
15	83110-67D00-T01	HANDLE,SIDE DR INS,R
16	83130-67D00-T01	HANDLE,SIDE DR INS,L
17	03121-05163-000	Screw
17	03121-0516A-000	SCREW
18	83119-67D00-000	Nut, door inside handle
18	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
19	83271-63D10-000	CLIP,DR R/CON ROD
20	09403-07324-000	CLAMP

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	Front door lock (FRONT DOOR LOCK)
02162-0612A-000	SCREW - Bolt, bracket	Front door lock (FRONT DOOR LOCK)
02162-0612B-000	SCREW - Bolt	Front door lock (FRONT DOOR LOCK)
03121-05163-000	Screw	Front door lock (FRONT DOOR LOCK)
03121-0516A-000	SCREW	Front door lock (FRONT DOOR LOCK)
09137-08011-000	SCREW(8X18)	Front door lock (FRONT DOOR LOCK)
09403-07324-000	CLAMP	Front door lock (FRONT DOOR LOCK)
77591-75000-000	PAD	Front door lock (FRONT DOOR LOCK)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Front door lock (FRONT DOOR LOCK)
82201-67D20-000	Latch assy, door rh	Front door lock (FRONT DOOR LOCK)
82201-67D30-000	Latch assy, door rh	Front door lock (FRONT DOOR LOCK)
82202-67D20-000	Latch assy, door lh	Front door lock (FRONT DOOR LOCK)
82202-67D30-000	Latch assy, door lh	Front door lock (FRONT DOOR LOCK)
82270-67820-000	CYLINDER,FR DR LATCH LOCK,R	Front door lock (FRONT DOOR LOCK)
82280-67820-000	CYLINDER,FR DR LATCH LOCK,L	Front door lock (FRONT DOOR LOCK)
82291-65D10-000	スクリュ,フロントドアラッチ	Front door lock (FRONT DOOR LOCK)
82291-65D11-000	SCREW	Front door lock (FRONT DOOR LOCK)
82291-70B00-000	RETAINER,CYLINDER	Front door lock (FRONT DOOR LOCK)
82610-60A01-000	STRIKER,FR DOOR LATCH	Front door lock (FRONT DOOR LOCK)
82610-67D00-000	Striker, door latch	Front door lock (FRONT DOOR LOCK)
82810-67D00-5PK	HANDLE,SIDE DOOR OUT,R	Front door lock (FRONT DOOR LOCK)
82820-67D00-5PK	HANDLE,SIDE DOOR OUT,LH	Front door lock (FRONT DOOR LOCK)
82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)	Front door lock (FRONT DOOR LOCK)
83110-67D00-T01	HANDLE,SIDE DR INS,R	Front door lock (FRONT DOOR LOCK)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	Front door lock (FRONT DOOR LOCK)
83119-67D00-000	Nut, door inside handle	Front door lock (FRONT DOOR LOCK)
83130-67D00-T01	HANDLE,SIDE DR INS,L	Front door lock (FRONT DOOR LOCK)
83271-63D10-000	CLIP,DR R/CON ROD	Front door lock (FRONT DOOR LOCK)
