Search › Model › SQ625L
SQ625L

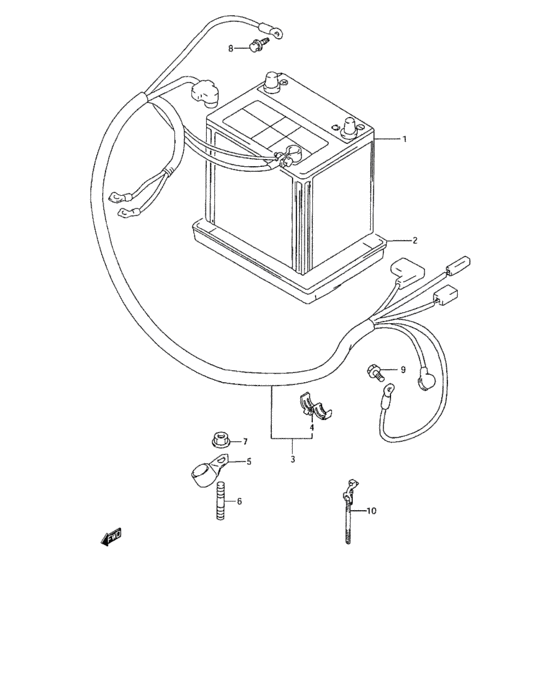

Battery (BATTERY) 14
| # | OEM | Part name |
|---|---|---|
| 2 | 33660-65D10-000 | Tray, battery |
| 3 | 33800-67D20-000 | Cable assy, battery |
| 4 | 36991-77E00-000 | Clamp, Cable |
| 5 | 36649-67D10-000 | CLAMP,BTRY CABLE |
| 6 | 01411-06163-000 | New Genuine Part - Bolt, stud |
| 6 | 01411-0616A-000 | BOLT,STUD |
| 7 | 08316-10063-000 | Nut |
| 7 | 08316-1006B-000 | NUT |
| 8 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 8 | 09115-06005-000 | BOLT(6X16) |
| 9 | 01550-08163-000 | Bolt, holder |
| 9 | 01550-0816B-000 | Bolt |
| 9 | 01550-0816A-000 | Bolt - Bolt, rear |
| 10 | 09407-12404-000 | CLAMP(L:140) |
| OEM | Part name | Category |
|---|---|---|
| 01411-06163-000 | New Genuine Part - Bolt, stud | Battery (BATTERY) |
| 01411-0616A-000 | BOLT,STUD | Battery (BATTERY) |
| 01550-08163-000 | Bolt, holder | Battery (BATTERY) |
| 01550-0816A-000 | Bolt - Bolt, rear | Battery (BATTERY) |
| 01550-0816B-000 | Bolt | Battery (BATTERY) |
| 08316-10063-000 | Nut | Battery (BATTERY) |
| 08316-1006B-000 | NUT | Battery (BATTERY) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09407-12404-000 | CLAMP(L:140) | Battery (BATTERY) |
| 33660-65D10-000 | Tray, battery | Battery (BATTERY) |
| 33800-67D20-000 | Cable assy, battery | Battery (BATTERY) |
| 36649-67D10-000 | CLAMP,BTRY CABLE | Battery (BATTERY) |
| 36991-77E00-000 | Clamp, Cable | Battery (BATTERY) |
