Search › Model › SQ625L
SQ625L

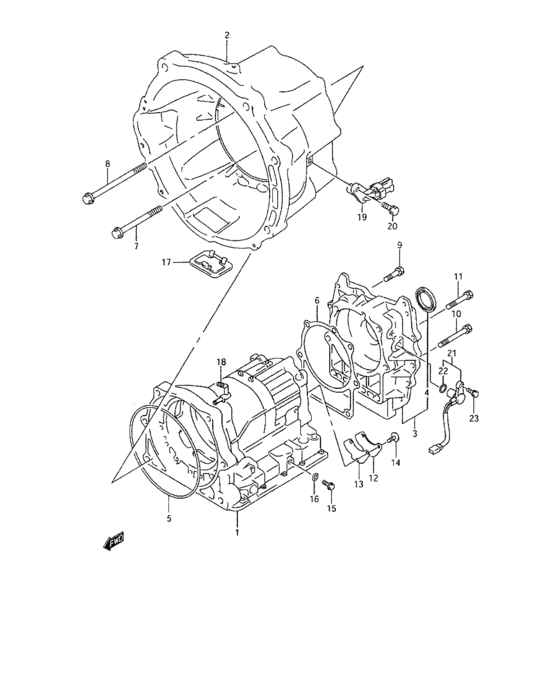

At tm case (AT) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 24712-57BV0-000 | CASE,T/M |
| 1 | 24712-57X50-000 | ケース,トランスミッション |
| 1 | 24712-65DV0-000 | CASE,T/M |
| 2 | 24711-67D10-000 | HOUSING,TORQUE CONVERTER |
| 3 | 24710-57B01-000 | CASE ASSY,ADAPTOR |
| 4 | 29792-57B01-000 | SEAL,OIL ADAPTOR CASE |
| 5 | 29736-57B00-000 | O-RING,HSG T/M CASE |
| 6 | 24784-57B00-000 | GASKET,ADAPTOR T/M CASE |
| 7 | 29995-57B00-000 | BOLT,HSG&CASE NO.2 |
| 8 | 29996-57B00-000 | BOLT,HSG&CASE NO.1 |
| 9 | 01570-10453-000 | Bolt, upper bracket |
| 9 | 01570-1045A-000 | Bolt |
| 10 | 29972-57B00-000 | BOLT,ADAPTOR&T/M CASE NO.3 |
| 11 | 29991-57B00-000 | BOLT,ADAPTOR&T/M CASE NO.2 |
| 12 | 24761-57B00-000 | COVER,PLATE |
| 13 | 24783-57B00-000 | GASKET,OIL GALLERY COVER |
| 14 | 29994-57B00-000 | SCREW,OIL GALLERY COVER |
| 15 | 29849-57B00-000 | PLUG,T/M CASE |
| 16 | 29738-57B00-000 | O-RING |
| 17 | 22641-61A01-000 | CAP,T/C,HOUSING |
| 18 | 24772-57B00-000 | ADAPTER,BREATHER |
| 19 | 26141-65D00-000 | SENSOR,INPUT SPEED |
| 20 | 26599-65D10-000 | BOLT,INPUT SPEED SENSOR |
| 21 | 24791-57B00-000 | SENSOR,SPEED |
| 22 | 29725-57B00-000 | O-RING,SPEED SENSOR |
| 23 | 29989-57B00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01570-10453-000 | Bolt, upper bracket | At tm case (AT) |
| 01570-1045A-000 | Bolt | At tm case (AT) |
| 22641-61A01-000 | CAP,T/C,HOUSING | At tm case (AT) |
| 24710-57B01-000 | CASE ASSY,ADAPTOR | At tm case (AT) |
| 24711-67D10-000 | HOUSING,TORQUE CONVERTER | At tm case (AT) |
| 24712-57BV0-000 | CASE,T/M | At tm case (AT) |
| 24712-57X50-000 | ケース,トランスミッション | At tm case (AT) |
| 24712-65DV0-000 | CASE,T/M | At tm case (AT) |
| 24761-57B00-000 | COVER,PLATE | At tm case (AT) |
| 24772-57B00-000 | ADAPTER,BREATHER | At tm case (AT) |
| 24783-57B00-000 | GASKET,OIL GALLERY COVER | At tm case (AT) |
| 24784-57B00-000 | GASKET,ADAPTOR T/M CASE | At tm case (AT) |
| 24791-57B00-000 | SENSOR,SPEED | At tm case (AT) |
| 26141-65D00-000 | SENSOR,INPUT SPEED | At tm case (AT) |
| 26599-65D10-000 | BOLT,INPUT SPEED SENSOR | At tm case (AT) |
| 29725-57B00-000 | O-RING,SPEED SENSOR | At tm case (AT) |
| 29736-57B00-000 | O-RING,HSG T/M CASE | At tm case (AT) |
| 29738-57B00-000 | O-RING | At tm case (AT) |
| 29792-57B01-000 | SEAL,OIL ADAPTOR CASE | At tm case (AT) |
| 29849-57B00-000 | PLUG,T/M CASE | At tm case (AT) |
| 29972-57B00-000 | BOLT,ADAPTOR&T/M CASE NO.3 | At tm case (AT) |
| 29989-57B00-000 | Bolt | At tm case (AT) |
| 29991-57B00-000 | BOLT,ADAPTOR&T/M CASE NO.2 | At tm case (AT) |
| 29994-57B00-000 | SCREW,OIL GALLERY COVER | At tm case (AT) |
| 29995-57B00-000 | BOLT,HSG&CASE NO.2 | At tm case (AT) |
| 29996-57B00-000 | BOLT,HSG&CASE NO.1 | At tm case (AT) |
