SQ420W

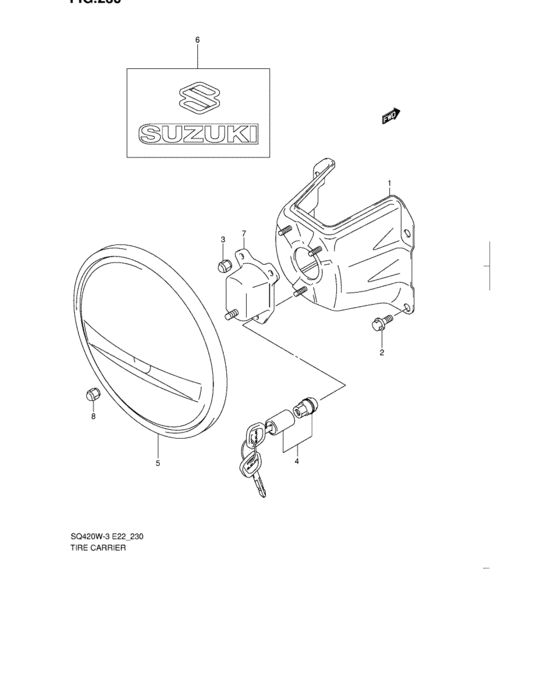

Tire carrier (TIRE CARRIER) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 83961-65D00-000 | CARRIER,SPARE TIRE |
| 2 | 01550-10253-000 | Bolt - Bolt, rr swgarm bracket |
| 2 | 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l |
| 2 | 01550-1025A-000 | Bolt - Bolt, drive gear |
| 3 | 09159-12024-000 | NUT |
| 4 | 83900-65820-000 | KEY,SPARE TIRE NUT LOCK |
| 5 | 72820-65D80-ZA4 | COVER,SPARE TIRE |
| 5 | 72820-65D80-ZA5 | COVER,SPARE TIRE |
| 5 | 72820-65D80-ZJ3 | COVER,SPARE TIRE |
| 5 | 72820-65D80-ZY4 | COVER,SPARE TIRE |
| 5 | 72820-65D80-Z2J | COVER,SPARE TIRE |
| 5 | 72820-65D80-27S | COVER,SPARE TIRE |
| 6 | 72830-65D00-LA8 | DECAL SET,SPARE TIRE COVER |
| 6 | 72830-65D00-N92 | DECAL SET,SPARE TIRE COVER |
| 7 | 72831-65D10-000 | BRACKET,SPARE TIRE COVER |
| OEM | Part name | Category |
|---|---|---|
| 01550-10253-000 | Bolt - Bolt, rr swgarm bracket | Tire carrier (TIRE CARRIER) |
| 01550-1025A-000 | Bolt - Bolt, drive gear | Tire carrier (TIRE CARRIER) |
| 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l | Tire carrier (TIRE CARRIER) |
| 09159-12024-000 | NUT | Tire carrier (TIRE CARRIER) |
| 72820-65D80-27S | COVER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
| 72820-65D80-Z2J | COVER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
| 72820-65D80-ZA4 | COVER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
| 72820-65D80-ZA5 | COVER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
| 72820-65D80-ZJ3 | COVER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
| 72820-65D80-ZY4 | COVER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
| 72830-65D00-LA8 | DECAL SET,SPARE TIRE COVER | Tire carrier (TIRE CARRIER) |
| 72830-65D00-N92 | DECAL SET,SPARE TIRE COVER | Tire carrier (TIRE CARRIER) |
| 72831-65D10-000 | BRACKET,SPARE TIRE COVER | Tire carrier (TIRE CARRIER) |
| 83900-65820-000 | KEY,SPARE TIRE NUT LOCK | Tire carrier (TIRE CARRIER) |
| 83961-65D00-000 | CARRIER,SPARE TIRE | Tire carrier (TIRE CARRIER) |
