Search › Model › SQ420W
SQ420W

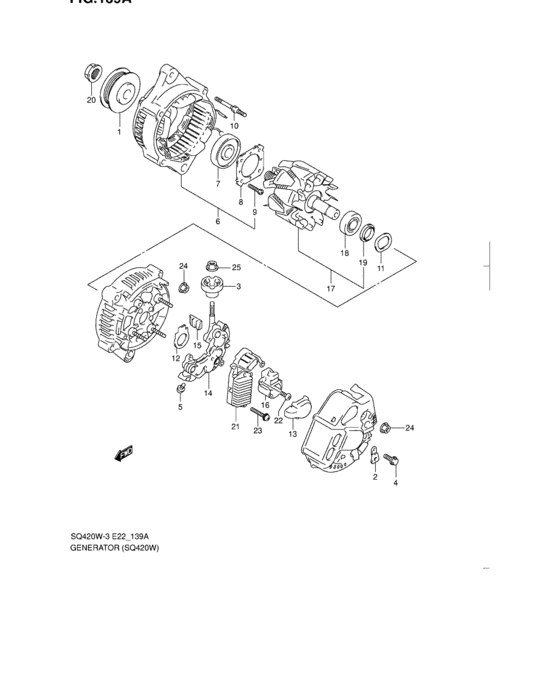

Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) 37
| OEM | Part name | Category |
|---|---|---|
| 02112-04063-000 | Screw | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 02112-0406B-000 | SCREW | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 02112-04163-000 | Screw | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 02112-0416A-000 | SCREW | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 02112-74253-000 | SCREW | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 08316-10053-000 | Nut | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 08316-1005A-000 | NUT | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 08361-15063-000 | Nut | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 08361-1506A-000 | NUT | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31171-77E20-000 | PULLEY | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31400-59J00-000 | GENERATOR ASSY | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31400-59J00-REM | Generator assy | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31400-59J01-000 | GENERATOR ASSY | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31512-77E10-000 | PLATE,TERMINAL | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31514-77E11-000 | INSULATOR,TERMINAL | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31515-77E10-000 | SCREW | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31516-77E10-000 | SCREW | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31580-59J00-000 | Frame assy,drive end | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31580-59J01-000 | FRAME ASSY,DRIVE END | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31582-60G13-000 | Bearing | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31582-60G14-000 | BEARING,BALL | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31585-82111-000 | RETAINER,BEARING | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31587-82110-000 | Bolt | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31612-60G13-000 | Bearing | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31612-60G14-000 | BEARING | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31613-82610-000 | COVER,BEARING | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31615-60G10-000 | WASHER | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31619-77E10-000 | SEAL RING | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31620-77E10-000 | SEAL RING | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31621-59J00-000 | Rectifier Assy | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31622-59J00-000 | INSULATOR | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31656-77E10-000 | HOLDER ASSY,BRUSH | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31710-59J00-000 | Rotor assy | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31710-59J01-000 | ROTOR ASSY | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 31775-86510-000 | NUT | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 32500-52D00-000 | REGULATOR ASSY | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
| 32642-80G10-000 | SCREW | Generator (SQ420W:JSAFTL52V00220954~,JS3TL52V 54100697~) |
