| 01550-06123-000 |
Bolt |

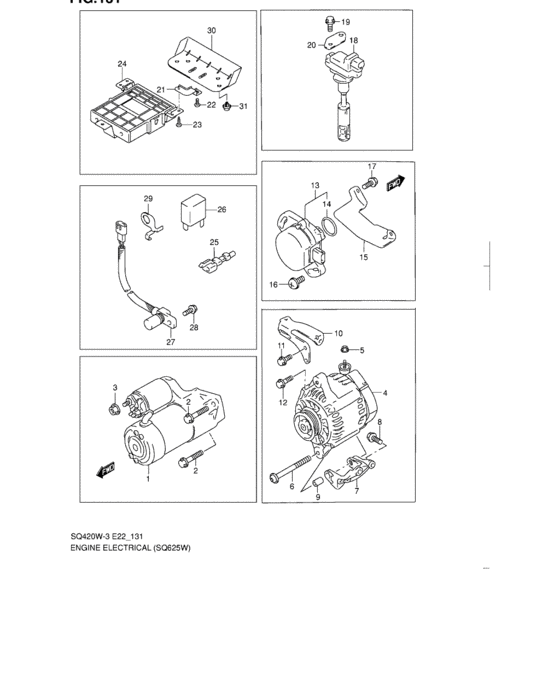

Engine electrical (SQ625W) |
| 01550-0612A-000 |
Bolt |
Engine electrical (SQ625W) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
Engine electrical (SQ625W) |
| 01550-08253-000 |
Bolt, rear |
Engine electrical (SQ625W) |
| 01550-0825A-000 |
Bolt |
Engine electrical (SQ625W) |
| 01550-0825B-000 |
Bolt |
Engine electrical (SQ625W) |
| 01550-10203-000 |
Bolt - Bolt, lower |
Engine electrical (SQ625W) |
| 01550-1020A-000 |
Bolt - Bolt, bal sprocket |
Engine electrical (SQ625W) |
| 01550-10503-000 |
Bolt - Bolt, rh |
Engine electrical (SQ625W) |
| 01550-1050B-000 |
Bolt |
Engine electrical (SQ625W) |
| 01580-05203-000 |
BOLT |
Engine electrical (SQ625W) |
| 01580-0520B-000 |
Bolt |
Engine electrical (SQ625W) |
| 02142-05103-000 |
Screw 5x10 |
Engine electrical (SQ625W) |
| 02142-0510B-000 |
SCREW - Bolt |
Engine electrical (SQ625W) |
| 03541-05123-000 |
Screw |
Engine electrical (SQ625W) |
| 03541-0512B-000 |
SCREW |
Engine electrical (SQ625W) |
| 08316-10063-000 |
Nut |
Engine electrical (SQ625W) |
| 08316-1006B-000 |
NUT |
Engine electrical (SQ625W) |
| 08316-10083-000 |
Nut |
Engine electrical (SQ625W) |
| 08316-1008B-000 |
NUT |
Engine electrical (SQ625W) |
| 09103-06240-000 |
BOLT(6X16) |
Engine electrical (SQ625W) |
| 09118-08107-000 |
BOLT(8X25) |
Engine electrical (SQ625W) |
| 09138-08003-000 |
SCREW(8X30) |
Engine electrical (SQ625W) |
| 09139-10002-000 |
SCREW(10X85) |
Engine electrical (SQ625W) |
| 09409-07332-000 |
CLIP |
Engine electrical (SQ625W) |
| 11551-77E00-000 |
BRACKET,GENERATOR |
Engine electrical (SQ625W) |
| 11555-60G00-000 |
Bush, generator |
Engine electrical (SQ625W) |
| 11555-60G01-000 |
BUSH |
Engine electrical (SQ625W) |
| 11560-52D00-000 |
ARM,GENERATOR ADJUST |
Engine electrical (SQ625W) |
| 31100-67D20-000 |
MOTOR ASSY,STARTING |
Engine electrical (SQ625W) |
| 31100-67D20-REM |
Starting motor |
Engine electrical (SQ625W) |
| 31100-77E11-000 |
MOTOR ASSY,STARTING |
Engine electrical (SQ625W) |
| 31400-52D10-000 |
Generator assy |
Engine electrical (SQ625W) |
| 31400-52D10-REM |
Generator assy |
Engine electrical (SQ625W) |
| 31400-52D11-000 |
GENERATOR ASSY |
Engine electrical (SQ625W) |
| 31400-77E11-REM |
Alternator |
Engine electrical (SQ625W) |
| 31400-77E12-000 |
GENERATOR ASSY |
Engine electrical (SQ625W) |
| 33100-77E10-000 |
SENSOR ASSY,CRANK ANGLE |
Engine electrical (SQ625W) |
| 33220-77E00-000 |
SENSOR ASSY,POSITION |
Engine electrical (SQ625W) |
| 33221-52D02-000 |
BRACKET,CKP SENSOR |
Engine electrical (SQ625W) |
| 33278-77E10-000 |
O-RING |
Engine electrical (SQ625W) |
| 33328-77E00-000 |
カバー,クランクアングルセンサ |
Engine electrical (SQ625W) |
| 33328-77E01-000 |
COVER,CA SENSOR |
Engine electrical (SQ625W) |
| 33410-77E21-000 |
COIL IGNITION |
Engine electrical (SQ625W) |
| 33410-77E22-000 |
COIL ASSY,IGNITION |
Engine electrical (SQ625W) |
| 33920-52J21-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52J22-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52J31-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52J32-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52J41-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52J42-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52J51-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52J52-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52J90-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52J91-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52JA0-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52JA2-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52JB0-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52JB1-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52JC0-000 |
Controller, fuel injection |
Engine electrical (SQ625W) |
| 33920-52JC1-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52JD0-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33920-52JE0-000 |
CONTROLLER ASSY,EPI |
Engine electrical (SQ625W) |
| 33924-50J10-000 |
BRACKET,EPI CONT |
Engine electrical (SQ625W) |
| 33924-50J20-000 |
BRACKET,EPI CONT |
Engine electrical (SQ625W) |
| 33925-50J00-000 |
COVER,EPI CONT |
Engine electrical (SQ625W) |
| 33926-60G10-000 |
RESISTOR,CO ADJUSTER |
Engine electrical (SQ625W) |
| 36995-77E90-000 |
BRACKET,ENG HARN |
Engine electrical (SQ625W) |
| 38860-76F01-000 |
RELAY ASSY - Relay, starting motor |
Engine electrical (SQ625W) |
