Search › Model › SQ420V
SQ420V

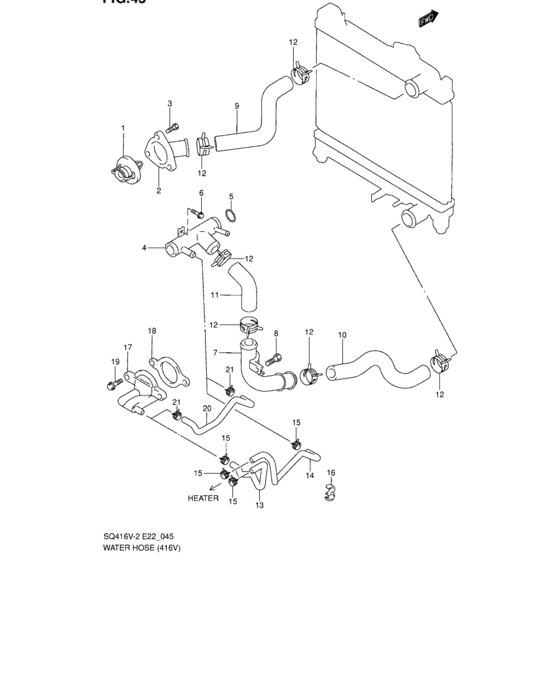

Water hose (SQ416) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 17670-66D01-000 | Thermostat,wtr(88?c) |
| 1 | 17670-66M00-000 | THERMOSTAT,WATER |
| 2 | 17560-77EA0-000 | Cap,wtr thermostat |
| 2 | 17560-57L00-000 | CAP,WTR THERMOSTAT |
| 3 | 01550-06203-000 | Bolt |
| 3 | 01550-0620B-000 | Bolt - Bolt, inspection cap |
| 4 | 17550-66D00-000 | PIPE,WATER INLET |
| 5 | 09280-28008-000 | O RING(D:3.5,ID:27.7) |
| 6 | 02162-06103-000 | Bolt - Bolt, bracket |
| 6 | 02162-0610A-000 | SCREW |
| 7 | 17860-66D00-000 | PIPE,RDTR OUTLET |
| 8 | 01550-06123-000 | Bolt |
| 8 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 8 | 01550-0612A-000 | Bolt |
| 9 | 17841-66D00-000 | HOSE,RADIATOR INLET |
| 10 | 17851-66D00-000 | HOSE,RADIATOR OUTLET |
| 11 | 17852-66D00-000 | HOSE,WTR INLET |
| 12 | 09401-36403-000 | CLIP |
| 12 | 09401-35403-000 | CLIP |
| 13 | 17871-66D00-000 | HOSE,HEATER INLET |
| 14 | 17872-66D00-000 | HOSE,HEATER OUTLET |
| 15 | 09401-18403-000 | CLIP - Clip, heater hose |
| 16 | 09408-00182-000 | CLAMP |
| 17 | 17570-57B00-000 | CAP,WATER OUTLET |
| 18 | 17699-60B02-000 | GASKET,THERMO CASE |
| 19 | 01550-08253-000 | Bolt, rear |
| 19 | 01550-0825B-000 | Bolt |
| 19 | 01550-0825A-000 | Bolt |
| 20 | 17873-66D20-000 | HOSE,WATER CIRCULATION |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Water hose (SQ416) |
| 01550-0612A-000 | Bolt | Water hose (SQ416) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Water hose (SQ416) |
| 01550-06203-000 | Bolt | Water hose (SQ416) |
| 01550-0620B-000 | Bolt - Bolt, inspection cap | Water hose (SQ416) |
| 01550-08253-000 | Bolt, rear | Water hose (SQ416) |
| 01550-0825A-000 | Bolt | Water hose (SQ416) |
| 01550-0825B-000 | Bolt | Water hose (SQ416) |
| 02162-06103-000 | Bolt - Bolt, bracket | Water hose (SQ416) |
| 02162-0610A-000 | SCREW | Water hose (SQ416) |
| 09280-28008-000 | O RING(D:3.5,ID:27.7) | Water hose (SQ416) |
| 09401-18403-000 | CLIP - Clip, heater hose | Water hose (SQ416) |
| 09401-35403-000 | CLIP | Water hose (SQ416) |
| 09401-36403-000 | CLIP | Water hose (SQ416) |
| 09408-00182-000 | CLAMP | Water hose (SQ416) |
| 17550-66D00-000 | PIPE,WATER INLET | Water hose (SQ416) |
| 17560-57L00-000 | CAP,WTR THERMOSTAT | Water hose (SQ416) |
| 17560-77EA0-000 | Cap,wtr thermostat | Water hose (SQ416) |
| 17570-57B00-000 | CAP,WATER OUTLET | Water hose (SQ416) |
| 17670-66D01-000 | Thermostat,wtr(88?c) | Water hose (SQ416) |
| 17670-66M00-000 | THERMOSTAT,WATER | Water hose (SQ416) |
| 17699-60B02-000 | GASKET,THERMO CASE | Water hose (SQ416) |
| 17841-66D00-000 | HOSE,RADIATOR INLET | Water hose (SQ416) |
| 17851-66D00-000 | HOSE,RADIATOR OUTLET | Water hose (SQ416) |
| 17852-66D00-000 | HOSE,WTR INLET | Water hose (SQ416) |
| 17860-66D00-000 | PIPE,RDTR OUTLET | Water hose (SQ416) |
| 17871-66D00-000 | HOSE,HEATER INLET | Water hose (SQ416) |
| 17872-66D00-000 | HOSE,HEATER OUTLET | Water hose (SQ416) |
| 17873-66D20-000 | HOSE,WATER CIRCULATION | Water hose (SQ416) |
