SQ420V

Suzuki GRAND-VITARA · 4,387 parts · 202 categories
SQ420V ×

← Back to categories

4,387 items

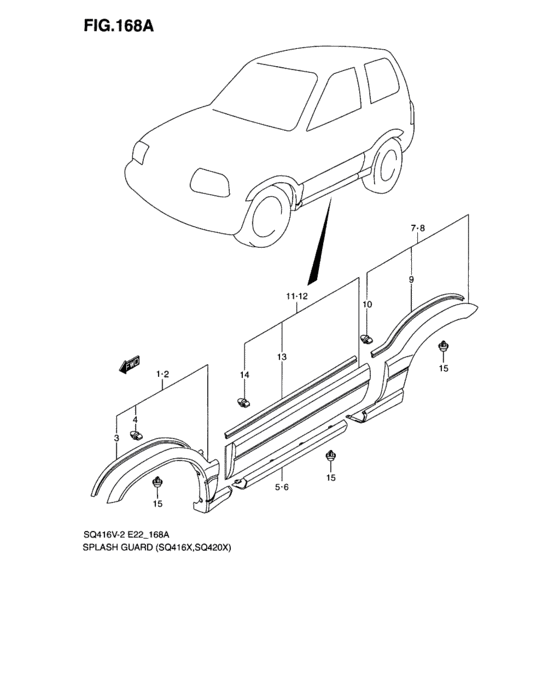

Splash guard (SQ416X,SQ420X) 133
#OEMPart name
1 77550-65DA3-ZA4 Guard, fender splash rh - Beige
1 77550-65DB0-ZA4 GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-ZA5 Guard, fender splash rh - White
1 77550-65DB0-ZA5 GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-ZJ3 Guard, fender splash rh - Black
1 77550-65DB0-ZJ3 GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-Z2J Guard, fender splash rh - Blue
1 77550-65DB0-Z2J GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-Z2S Guard, fender splash rh - Silver
1 77550-65DB0-Z2S GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-Z2T Guard, fender splash rh - Green
1 77550-65DB0-Z2T GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-Z5J Guard, fender splash rh - Black
1 77550-65DB0-Z5J GUARD ASSY,FR FENDER SPL,R
1 77550-65DA3-26U Guard, fender splash rh - White
1 77550-65DB0-26U GUARD ASSY,FR FENDER SPL,R
2 77650-65DA3-ZA4 Guard, fender splash lh - Beige
2 77650-65DB0-ZA4 GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-ZA5 Guard, fender splash lh - White
2 77650-65DB0-ZA5 GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-ZJ3 Guard, fender splash lh - Black
2 77650-65DB0-ZJ3 GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-Z2J Guard, fender splash lh - Blue
2 77650-65DB0-Z2J GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-Z2S Guard, fender splash lh - Silver
2 77650-65DB0-Z2S GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-Z2T Guard, fender splash lh - Green
2 77650-65DB0-Z2T GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-Z5J Guard, fender splash lh - Black
2 77650-65DB0-Z5J GUARD ASSY,FR FENDER SPL,L
2 77650-65DA3-26U Guard, fender splash lh - White
2 77650-65DB0-26U GUARD ASSY,FR FENDER SPL,L
3 77582-66DA0-ZA4 Protector, guard edge - Beige
3 77582-66DA1-ZA4 PROTECTOR,GUARD EDGE
3 77582-66DA0-ZA5 Protector, guard edge - White
3 77582-66DA1-ZA5 PROTECTOR,GUARD EDGE
3 77582-66DA0-ZJ3 Protector, guard edge - Black
3 77582-66DA1-ZJ3 PROTECTOR,GUARD EDGE
3 77582-66DA0-Z2J Protecotr, guard edge - Blue
3 77582-66DA1-Z2J PROTECTOR,GUARD EDGE
3 77582-66DA0-Z2S Protector, guard edge - Silver
3 77582-66DA1-Z2S PROTECTOR,GUARD EDGE
3 77582-66DA0-Z2T Protector, guard edge - Green
3 77582-66DA1-Z2T PROTECTOR,GUARD EDGE
3 77582-66DA0-Z5J Protector, guard edge - Black
3 77582-66DA1-Z5J PROTECTOR,GUARD EDGE
3 77582-66DA0-26U Protector, guard edge - White
3 77582-66DA1-26U PROTECTOR,GUARD EDGE
4 77553-65D10-000 CLIP,SPLASH GUARD
5 77561-66DA0-ZA4 GUARD,SIDE SILL SPL,R
5 77561-66DA0-ZA5 GUARD,SIDE SILL SPL,R
5 77561-66DA0-ZJ3 GUARD,SIDE SILL SPL,R
5 77561-66DA0-799 GUARD,SIDE SILL SPL,R
5 77561-66DA0-Z2J GUARD,SIDE SILL SPL,R
5 77561-66DA0-Z2S GUARD,SIDE SILL SPL,R
5 77561-66DA0-Z2T Guard,side sill splash,r
5 77561-66DA0-Z5J GUARD,SIDE SILL SPL,R
5 77561-66DA0-26U Guard,side sill splash,r
6 77661-66DA0-ZA4 GUARD,SIDE SILL SPL,L
6 77661-66DA0-799 GUARD,SIDE SILL SPL,L
6 77661-66DA0-ZA5 Guard,side sill splash,l
6 77661-66DA0-ZJ3 GUARD,SIDE SILL SPL,L
6 77661-66DA0-Z2J GUARD,SIDE SILL SPL,L
6 77661-66DA0-Z2S GUARD,SIDE SILL SPL,L
6 77661-66DA0-Z2T GUARD,SIDE SILL SPL,L
6 77661-66DA0-Z5J GUARD,SIDE SILL SPL,L
6 77661-66DA0-26U Guard,side sill splash,l
7 77570-66DA0-ZA4 Guard, rr splash rh - Beige
7 77570-66DA1-ZA4 GUARD ASSY,RR SPL,R
7 77570-66DA0-ZA5 Guard, rr splash rh - White
7 77570-66DA1-ZA5 Guard assy,rear splash,r(white
7 77570-66DA0-ZJ3 Guard, rr splash rh - Black
7 77570-66DA1-ZJ3 GUARD ASSY,RR SPL,R
7 77570-66DA0-Z2J Guard, rr splash rh - Blue
7 77570-66DA1-Z2J GUARD ASSY,RR SPL,R
7 77570-66DA0-Z2S Guard, rr splash rh - Silver
7 77570-66DA1-Z2S GUARD ASSY,RR SPL,R
7 77570-66DA0-Z2T Guard, rr splash rh - Green
7 77570-66DA1-Z2T GUARD ASSY,RR SPL,R
7 77570-66DA0-Z5J Guard, rr splash rh - Black
7 77570-66DA1-Z5J GUARD ASSY,RR SPL,R
7 77570-66DA0-26U Guard, rr splash rh - White
7 77570-66DA1-26U GUARD ASSY,RR SPL,R
8 77670-66DA0-ZA4 Guard, rr splash lh - Beige
8 77670-66DA1-ZA4 GUARD ASSY,RR SPL,L
8 77670-66DA0-ZA5 Guard, rr splash lh - White
8 77670-66DA1-ZA5 Guard assy,rear splash,l(white
8 77670-66DA0-ZJ3 Guard, rr splash lh - Black
8 77670-66DA1-ZJ3 GUARD ASSY,RR SPL,L
8 77670-66DA0-Z2J Guard, rr splash lh - Blue
8 77670-66DA1-Z2J GUARD ASSY,RR SPL,L
8 77670-66DA0-Z2S Guard, rr splash lh - Silver
8 77670-66DA1-Z2S GUARD ASSY,RR SPL,L
8 77670-66DA0-Z2T Guard, rr splash lh - Green
8 77670-66DA1-Z2T GUARD ASSY,RR SPL,L
8 77670-66DA0-Z5J Guard, rr splash lh - Black
8 77670-66DA1-Z5J GUARD ASSY,RR SPL,L
8 77670-66DA0-26U Guard, rr splash lh - White
8 77670-66DA1-26U GUARD ASSY,RR SPL,L
10 09409-09304-000 CLIP
11 77580-66DA0-ZA4 Guard, fr dr splash rh - Beige
11 77580-66DA1-ZA4 GUARD ASSY,FR DR SPL,R
11 77580-66DA0-ZA5 Guard, fr dr splash rh - White
11 77580-66DA1-ZA5 Guard assy,fr door splash,r(wh
11 77580-66DA0-ZJ3 Guard, fr dr splash rh - Black
11 77580-66DA1-ZJ3 GUARD ASSY,FR DR SPL,R
11 77580-66DA0-Z2J Guard, fr dr splsah rh - Blue
11 77580-66DA1-Z2J GUARD ASSY,FR DR SPL,R
11 77580-66DA0-Z2S Guard, fr dr splash rh - Silver
11 77580-66DA1-Z2S GUARD ASSY,FR DR SPL,R
11 77580-66DA0-Z2T Guard, fr dr splash rh - Green
11 77580-66DA1-Z2T GUARD ASSY,FR DR SPL,R
11 77580-66DA0-Z5J Guard, fr dr splash rh - Black
11 77580-66DA1-Z5J GUARD ASSY,FR DR SPL,R
11 77580-66DA0-26U Guard, fr dr splash rh - White
11 77580-66DA1-26U GUARD ASSY,FR DR SPL,R
12 77680-66DA0-ZA4 Guard, fr dr splash lh - Beige
12 77680-66DA1-ZA4 GUARD ASSY,FR DR SPL,L
12 77680-66DA0-ZA5 Guard, fr dr splash lh - White
12 77680-66DA1-ZA5 Guard assy,fr door splash,l(wh
12 77680-66DA0-ZJ3 Guard, fr dr splash lh - Black
12 77680-66DA1-ZJ3 GUARD ASSY,FR DR SPL,L
12 77680-66DA0-Z2J Guard, fr dr splash lh - Blue
12 77680-66DA1-Z2J GUARD ASSY,FR DR SPL,L
12 77680-66DA0-Z2S Guard, fr dr splash lh - Silver
12 77680-66DA1-Z2S GUARD ASSY,FR DR SPL,L
12 77680-66DA0-Z2T Guard, fr dr splash lh - Green
12 77680-66DA1-Z2T GUARD ASSY,FR DR SPL,L
12 77680-66DA0-Z5J Guard, fr dr splash lh - Black
12 77680-66DA1-Z5J GUARD ASSY,FR DR SPL,L
12 77680-66DA0-26U Guard, fr dr splash lh - White
12 77680-66DA1-26U GUARD ASSY,FR DR SPL,L
15 09409-07332-000 CLIP
