SQ420V

Suzuki GRAND-VITARA · 4,387 parts · 202 categories
SQ420V ×

← Back to categories

4,387 items

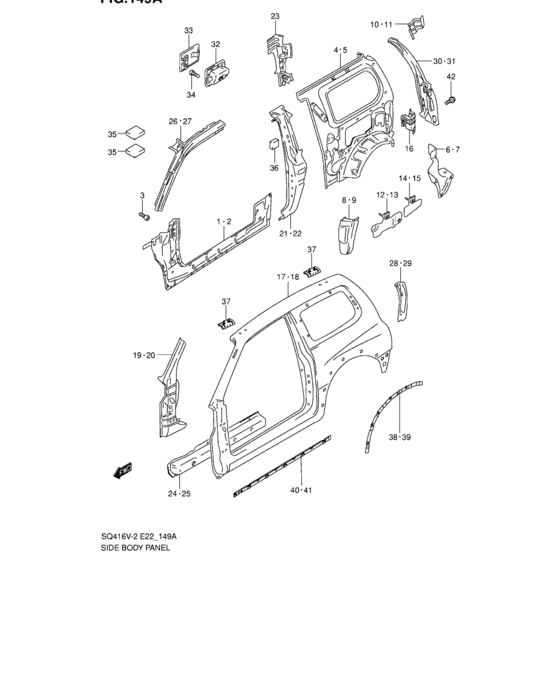

Side body panel (SQ416X,SQ420X) 68
#OEMPart name
1 61480-66D50-000 PANEL,FR PILLAR INNER LWR,R
1 61480-66D60-000 PANEL,FR PILLAR INNER LWR,R
2 61580-66D50-000 Panel, fr plr inner lower lh
2 61580-66D70-000 PANEL,FR PILLAR INNER LWR,L
2 61580-66D60-000 パネル,フロントピラーインナロア,レフト
2 61580-66D80-000 PANEL,FR PILLAR INNER LWR,L
3 09119-06090-000 Bolt
4 63111-66D00-000 PANEL,SIDE BODY INNER,R
5 63511-66D00-000 PANEL,SIDE BODY INNER,L
6 63121-65D00-000 PANEL,RR WHEEL HSG OTR RR,R
7 63521-65D00-000 PANEL,RR WHEEL HSG OTR RR,L
8 63141-66D00-000 パネル,リヤホイールハウジングアウタフロント,ライト
8 63141-66D10-000 PANEL,RR WHEEL HSG OTR FR,R
8 09250-17002-000 CAP(OD:25.6)
9 63541-66D00-000 パネル,リヤホイールハウジングアウタフロント,レフト
9 63541-66D10-000 PANEL,RR WHEEL HSG OTR FR,L
10 63151-66D00-000 REINF,RR SEAT BELT ANCHORAGE,R
11 63551-66D00-000 REINF,RR SEAT BELT ANCHORAGE,L
12 63161-66D00-000 REINF,SEAT BELT RETRACTOR FR,R
13 63561-66D00-000 REINF,SEAT BELT RETRACTOR FR,L
14 63114-81A00-000 REINF,SEAT BELT RETRACTOR
15 63562-66D00-000 REINF,SEAT BELT RETRACTOR RR,L
16 63551-65D01-000 BRACKET,JACK
17 64111-66DA1-000 Panel, side body outer rh
17 09250-10016-000 CAP(OD:16.2)
17 64111-66DA2-000 PANEL,SIDE BODY OUTER,R
17 64111-66DB1-000 Panel, side body outer rh
17 64111-66DB2-000 Panel, side body outer rh
17 64111-66DC1-000 Panel, side body outer rh
18 64511-66DA1-000 Panel, side body outer lh
18 64511-66DA2-000 PANEL,SIDE BODY OUTER,L
18 64511-66DB0-000 Panel, side body outer lh
18 64511-66DB2-000 Panel, side body outer lh
18 64511-66DC1-000 Panel, side body outer lh
19 64120-65D00-000 REIN FRONT PILLAR RH
19 64120-65D01-000 REINFORCEMENT,FR PILLAR,R
20 64520-65D00-000 REINF FRONT PILLAR INNER LH
20 64520-65D01-000 REINFORCEMENT,FR PILLAR,L
21 64130-66D00-000 REINFORCEMENT,CTR PILLAR,R
22 64530-66D00-000 REINFORCEMENT,CTR PILLAR,L
23 64150-66D00-000 REINFORCEMENT,BACK PILLAR,R
24 64161-66D00-000 REINF SIDE SILL RH
24 64161-66D11-000 REINFORCEMENT,SIDE SILL,R
25 64561-66D00-000 REINF SIDE SILL LH
25 64561-66D11-000 REINFORCEMENT,SIDE SILL,L
26 64210-66D02-000 パネル,フロントピラーインナ,ライト
26 36930-82010-000 COVER,HARNESS - Cover, roof wire
26 64210-66D03-000 PANEL,FR PILLAR INNER,R
27 64610-66D02-000 パネル,フロントピラーインナ,レフト
27 64610-66D03-000 PANEL,FR PILLAR INNER,L
28 64221-66D00-000 PANEL,AIR OUTLET,R
29 64621-66D00-000 PANEL,AIR OUTLET,L
30 64231-65D11-000 Panel, back pillar outer rh
30 64231-65D12-000 PANEL,BACK PILLAR OUTER,R
31 64630-52D00-000 Panel, back pillar outer lh
31 64630-52D02-000 PANEL,BACK PILLAR OUTER,L
32 64241-65D00-000 BOX,FUEL INLET
33 65950-65D03-000 LID FUEL INLET
33 65950-65D04-000 LID,FUEL INLET
34 02162-05103-000 Screw - Bolt (5x10)
34 02162-0510A-000 SCREW
35 83921-82C00-000 PAD
37 64261-52D00-000 REINFORCEMENT,ROOF RAIL
38 64250-66DA0-000 HOLDER,RR SPLASH GUARD,R
39 64650-66DA0-000 HOLDER,RR SPLASH GUARD,L
40 64261-66DA0-000 HOLDER,SIDE SILL SPLASH,R
41 64661-66DA0-000 HOLDER,SIDE SILL SPLASH,L
42 09122-76003-000 SCREW(6X16) - Bolt (6x16)
