| 01550-06103-000 |
Bolt, front |

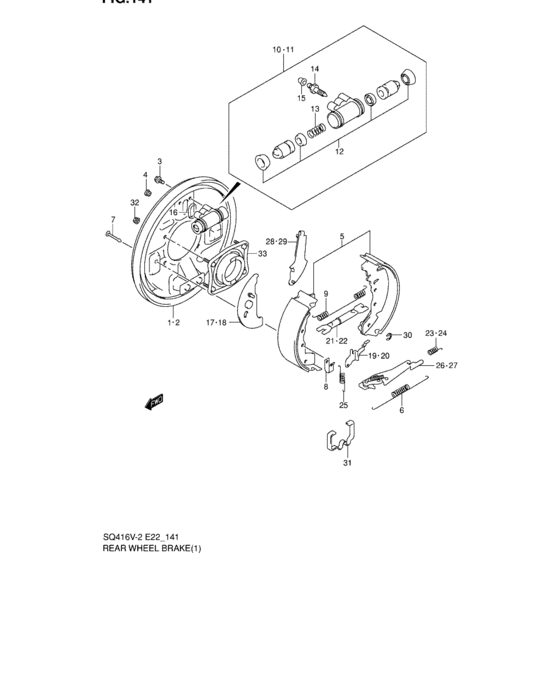

Rear wheel brake (SQ416V,SQ420V:) |
| 01550-0610A-000 |
Bolt |
Rear wheel brake (SQ416V,SQ420V:) |
| 01550-0610B-000 |
Bolt |
Rear wheel brake (SQ416V,SQ420V:) |
| 09159-08075-000 |
NUT |
Rear wheel brake (SQ416V,SQ420V:) |
| 53110-65D00-000 |
PLATE ASSY,BACKING,RH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53120-65D00-000 |
PLATE ASSY,BACKING,LH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53131-52D00-000 |
BOLT,WHEEL CYL |
Rear wheel brake (SQ416V,SQ420V:) |
| 53141-65D00-000 |
PLUG,BACKING PLATE |
Rear wheel brake (SQ416V,SQ420V:) |
| 53200-65D01-000 |
SHOE SET BRAKE |
Rear wheel brake (SQ416V,SQ420V:) |
| 53200-65D10-000 |
Shoe set, brake |
Rear wheel brake (SQ416V,SQ420V:) |
| 53200-65D13-000 |
SHOE SET,BRAKE |
Rear wheel brake (SQ416V,SQ420V:) |
| 53201-65D00-000 |
SHIM,ANCHOR |
Rear wheel brake (SQ416V,SQ420V:) |
| 53231-65D00-000 |
SPRING,SHOE RETURN LOWER |
Rear wheel brake (SQ416V,SQ420V:) |
| 53241-82030-000 |
PIN,SHOE HOLD DOWN - Pin, shoe hold down |
Rear wheel brake (SQ416V,SQ420V:) |
| 53243-65D00-000 |
SPRING,SHOE HOLD DOWN |
Rear wheel brake (SQ416V,SQ420V:) |
| 53331-65D00-000 |
SPRING,SHOE RETURN UPPER |
Rear wheel brake (SQ416V,SQ420V:) |
| 53400-60830-000 |
PISTON CUP/BOOT SET |
Rear wheel brake (SQ416V,SQ420V:) |
| 53401-65D00-000 |
CYLINDER ASSY,RR WHEEL, RH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53402-65D00-000 |
CYLINDER ASSY,RR WHEEL, LH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53402-65D01-000 |
CYLINDER ASSY WHEEL RR LH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53417-82030-000 |
GASKET,RR WHEEL CYLINDER - Gasket, rear wheel cylinder |
Rear wheel brake (SQ416V,SQ420V:) |
| 53441-56B00-000 |
SPRING,WHEEL CYLINDER |
Rear wheel brake (SQ416V,SQ420V:) |
| 53711-65D00-000 |
LINK ASSY,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53711-65D10-000 |
LINK ASSY,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53712-65D00-000 |
LINK ASSY,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53712-65D10-000 |
LINK ASSY,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53720-65D00-000 |
LEVER PARKING RH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53720-65D01-000 |
LEVER ASSY,PARKING SHOE,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53730-65D00-000 |
LEVER PARKING SHOE LH |
Rear wheel brake (SQ416V,SQ420V:) |
| 53730-65D01-000 |
LEVER ASSY,PARKING SHOE,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53753-67H00-000 |
PUSH NUT,PARKING LEVER |
Rear wheel brake (SQ416V,SQ420V:) |
| 53753-82030-000 |
E-RING,PARKING LEVER - Retainer, brake stopper |
Rear wheel brake (SQ416V,SQ420V:) |
| 53781-65D00-000 |
LEVER,PARKING ADJUSTER,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53782-65D00-000 |
LEVER,PARKING ADJUSTER,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53791-52D00-000 |
SPRING,ANTIRATTLE,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53791-65D00-000 |
SPRING,ADJUSTER,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53792-52D00-000 |
SPRING,ANTIRATTLE,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53792-65D00-000 |
SPRING,ADJUSTER,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53810-65D00-000 |
ADJUSTER ASSY,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53820-65D00-000 |
RETAINER,RR WHL BRG OUTER |
Rear wheel brake (SQ416V,SQ420V:) |
| 53824-65D00-000 |
SPRING,ADJUSTER |
Rear wheel brake (SQ416V,SQ420V:) |
| 53830-65D00-000 |
STRUT ASSY,R |
Rear wheel brake (SQ416V,SQ420V:) |
| 53830-65D10-000 |
STRUT |
Rear wheel brake (SQ416V,SQ420V:) |
| 53840-65D00-000 |
STRUT ASSY,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 53850-65D00-000 |
ADJUSTER ASSY,L |
Rear wheel brake (SQ416V,SQ420V:) |
| 55156-66310-000 |
CAP,BLEEDER PLUG - Cap, bleeder plug |
Rear wheel brake (SQ416V,SQ420V:) |
| 55473-82031-000 |
PLUG,BLEEDER |
Rear wheel brake (SQ416V,SQ420V:) |
