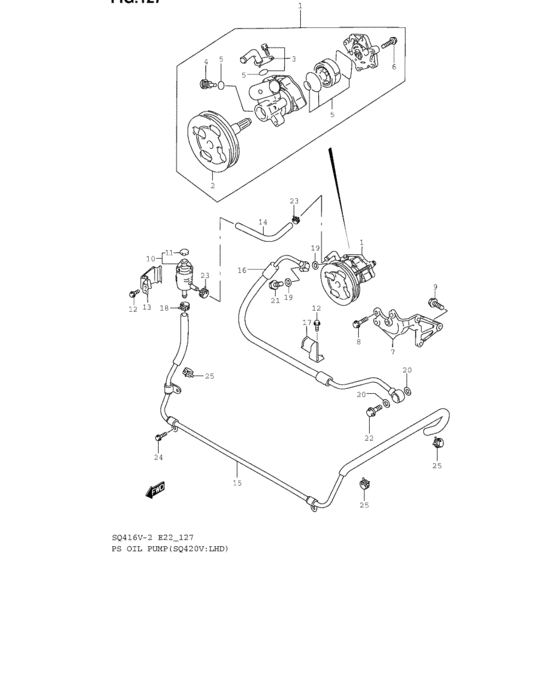

Ps oil pump (SQ420:LHD)
30
| # | OEM | Part name |
|---|
| 1 |
49100-65D10-000 |
PUMP ASSY,POWER STEERING |
| 2 |
49111-64G20-000 |
PULLEY SET |
| 3 |
49112-64G20-000 |
CONNECTOR SET |
| 4 |
49113-65D00-000 |
TERMINAL SET |
| 5 |
49114-56B30-000 |
SEAL SET |
| 6 |
49115-56B30-000 |
BOLT SET |
| 7 |
49120-65D10-000 |
BRACKET,POWER STRG PUMP |
| 8 |
01550-08253-000 |
Bolt, rear |
| 8 |
01550-0825B-000 |
Bolt |
| 8 |
01550-0825A-000 |
Bolt |
| 10 |
49140-65D00-000 |
TANK ASSY POWER STEERING OIL |
| 10 |
49140-54J01-000 |
TANK ASSY,POWER STRG OIL |
| 11 |
49142-65D00-000 |
CAP,PS OIL TANK |
| 12 |
02162-06123-000 |
Bolt (6x12) |
| 12 |
02162-0612B-000 |
SCREW - Bolt |
| 12 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 13 |
49150-65D10-000 |
BRACKET,PS RESERVE TANK |
| 14 |
49214-65D10-000 |
HOSE,SUCTION |
| 15 |
49220-65D61-000 |
HOSE,RETURN |
| 16 |
49230-65D60-000 |
HOSE,PRESSURE |
| 17 |
49222-65D60-000 |
BRACKET,PS HOSE |
| 18 |
09401-15404-000 |
CLIP |
| 19 |
09168-16002-000 |
GASKET(16X22X2) |
| 20 |
09168-14014-000 |
GASKET(14X18X1.5) |
| 21 |
09360-16003-000 |
UNION |
| 22 |
09360-14011-000 |
UNION |
| 23 |
09401-20405-000 |
CLIP - Clip, tank |
| 24 |
02162-06203-000 |
Bolt |
| 24 |
02162-0620C-000 |
SCREW |
| 25 |
09401-16405-000 |
CLAMP |
| OEM |
Part name |
Category |
| 01550-08253-000 |
Bolt, rear |
Ps oil pump (SQ420:LHD) |
| 01550-0825A-000 |
Bolt |
Ps oil pump (SQ420:LHD) |
| 01550-0825B-000 |
Bolt |
Ps oil pump (SQ420:LHD) |
| 02162-06123-000 |
Bolt (6x12) |
Ps oil pump (SQ420:LHD) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Ps oil pump (SQ420:LHD) |
| 02162-0612B-000 |
SCREW - Bolt |
Ps oil pump (SQ420:LHD) |
| 02162-06203-000 |
Bolt |
Ps oil pump (SQ420:LHD) |
| 02162-0620C-000 |
SCREW |
Ps oil pump (SQ420:LHD) |
| 09168-14014-000 |
GASKET(14X18X1.5) |
Ps oil pump (SQ420:LHD) |
| 09168-16002-000 |
GASKET(16X22X2) |
Ps oil pump (SQ420:LHD) |
| 09360-14011-000 |
UNION |
Ps oil pump (SQ420:LHD) |
| 09360-16003-000 |
UNION |
Ps oil pump (SQ420:LHD) |
| 09401-15404-000 |
CLIP |
Ps oil pump (SQ420:LHD) |
| 09401-16405-000 |
CLAMP |
Ps oil pump (SQ420:LHD) |
| 09401-20405-000 |
CLIP - Clip, tank |
Ps oil pump (SQ420:LHD) |
| 49100-65D10-000 |
PUMP ASSY,POWER STEERING |
Ps oil pump (SQ420:LHD) |
| 49111-64G20-000 |
PULLEY SET |
Ps oil pump (SQ420:LHD) |
| 49112-64G20-000 |
CONNECTOR SET |
Ps oil pump (SQ420:LHD) |
| 49113-65D00-000 |
TERMINAL SET |
Ps oil pump (SQ420:LHD) |
| 49114-56B30-000 |
SEAL SET |
Ps oil pump (SQ420:LHD) |
| 49115-56B30-000 |
BOLT SET |
Ps oil pump (SQ420:LHD) |
| 49120-65D10-000 |
BRACKET,POWER STRG PUMP |
Ps oil pump (SQ420:LHD) |
| 49140-54J01-000 |
TANK ASSY,POWER STRG OIL |
Ps oil pump (SQ420:LHD) |
| 49140-65D00-000 |
TANK ASSY POWER STEERING OIL |
Ps oil pump (SQ420:LHD) |
| 49142-65D00-000 |
CAP,PS OIL TANK |
Ps oil pump (SQ420:LHD) |
| 49150-65D10-000 |
BRACKET,PS RESERVE TANK |
Ps oil pump (SQ420:LHD) |
| 49214-65D10-000 |
HOSE,SUCTION |
Ps oil pump (SQ420:LHD) |
| 49220-65D61-000 |
HOSE,RETURN |
Ps oil pump (SQ420:LHD) |
| 49222-65D60-000 |
BRACKET,PS HOSE |
Ps oil pump (SQ420:LHD) |
| 49230-65D60-000 |
HOSE,PRESSURE |
Ps oil pump (SQ420:LHD) |
