Search › Model › SQ420V
SQ420V

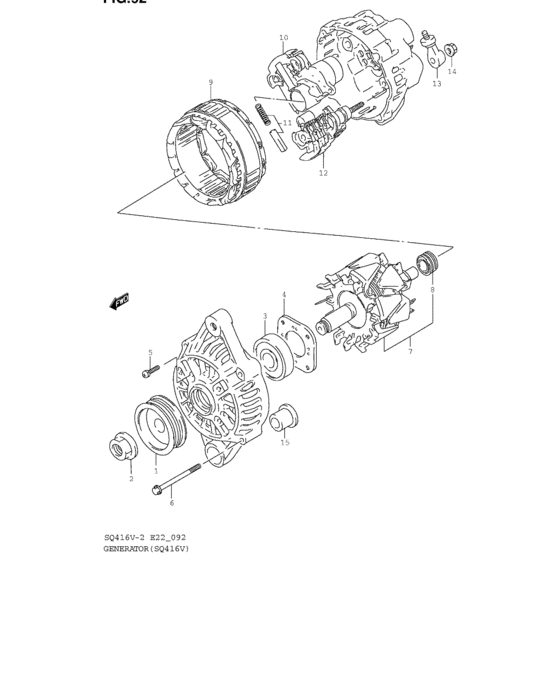

Generator (SQ416) 22
| # | OEM | Part name |
|---|---|---|
| 0 | 31400-66D01-000 | GENERATOR ASSY |
| 0 | 31400-66D04-000 | GENERATOR ASSY |
| 1 | 31171-60A21-000 | PULLEY |
| 2 | 31775-50F20-000 | NUT |
| 3 | 31582-50F21-000 | Bearing |
| 3 | 31582-50F40-000 | BEARING,FR |
| 4 | 31585-83E00-000 | RETAINER,BEARING |
| 5 | 31586-86520-000 | SCREW SET |
| 6 | 31651-86520-000 | SCREW SET |
| 7 | 31710-83E00-000 | ROTOR ASSY |
| 7 | 31710-83E10-000 | ROTOR ASSY |
| 8 | 31612-60A10-000 | Bearing,rr |
| 8 | 31612-60A11-000 | BEARING,REAR |
| 9 | 31410-66D00-000 | STATOR ASSY |
| 10 | 32500-83E00-000 | Regulator assy |
| 10 | 32500-83E01-000 | REGULATOR ASSY |
| 11 | 31631-60F30-000 | BRUSH SET |
| 12 | 31621-66D00-000 | Rectifier Assy |
| 13 | 31514-73G10-000 | TERMINAL SET |
| 14 | 08316-10063-000 | Nut |
| 14 | 08316-1006B-000 | NUT |
| 15 | 31616-83E00-000 | BUSH |
| OEM | Part name | Category |
|---|---|---|
| 08316-10063-000 | Nut | Generator (SQ416) |
| 08316-1006B-000 | NUT | Generator (SQ416) |
| 31171-60A21-000 | PULLEY | Generator (SQ416) |
| 31400-66D01-000 | GENERATOR ASSY | Generator (SQ416) |
| 31400-66D04-000 | GENERATOR ASSY | Generator (SQ416) |
| 31410-66D00-000 | STATOR ASSY | Generator (SQ416) |
| 31514-73G10-000 | TERMINAL SET | Generator (SQ416) |
| 31582-50F21-000 | Bearing | Generator (SQ416) |
| 31582-50F40-000 | BEARING,FR | Generator (SQ416) |
| 31585-83E00-000 | RETAINER,BEARING | Generator (SQ416) |
| 31586-86520-000 | SCREW SET | Generator (SQ416) |
| 31612-60A10-000 | Bearing,rr | Generator (SQ416) |
| 31612-60A11-000 | BEARING,REAR | Generator (SQ416) |
| 31616-83E00-000 | BUSH | Generator (SQ416) |
| 31621-66D00-000 | Rectifier Assy | Generator (SQ416) |
| 31631-60F30-000 | BRUSH SET | Generator (SQ416) |
| 31651-86520-000 | SCREW SET | Generator (SQ416) |
| 31710-83E00-000 | ROTOR ASSY | Generator (SQ416) |
| 31710-83E10-000 | ROTOR ASSY | Generator (SQ416) |
| 31775-50F20-000 | NUT | Generator (SQ416) |
| 32500-83E00-000 | Regulator assy | Generator (SQ416) |
| 32500-83E01-000 | REGULATOR ASSY | Generator (SQ416) |
