Search › Model › SQ420V

SQ420V

Suzuki GRAND-VITARA · 4,387 parts · 202 categories

4,387 items

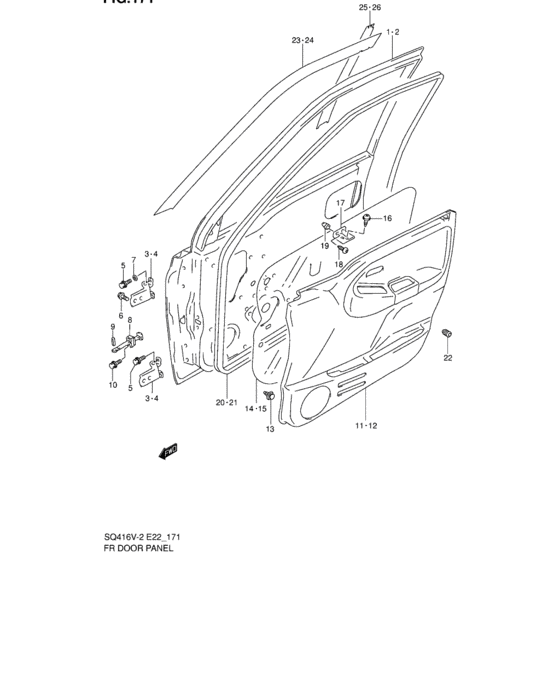

Fr dr panel (FR DR PANEL) 57

#	OEM	Part name
1	68001-66D01-000	PANEL ASSY,FRONT DOOR,R
1	68001-66D21-000	PANEL ASSY,FRONT DOOR,R
2	68002-66D01-000	PANEL ASSY,FRONT DOOR,L
2	68002-66D21-000	PANEL ASSY,FRONT DOOR,L
3	69310-65D00-000	HINGE,FR DOOR,NO.1
4	69320-65D00-000	HINGE,FR DOOR,NO.2
5	69491-65D00-000	Bolt
5	09103-08389-000	BOLT(8X24)
6	01551-08203-000	Bolt
6	01551-0820A-000	Bolt
7	69480-65D00-000	Washer
8	81810-65D00-000	STOP,FRONT DOOR OPEN
9	81831-70B00-000	PIN,DOOR OPEN STOPPER BODY
10	01580-06203-000	Bolt - Bolt, front
10	01580-0620B-000	Bolt
11	83701-66DH0-DV2	Trim assy, dr rh - Gray
11	09409-08320-000	CLIP
11	83701-66DH0-GA8	TRIM ASSY,FR DOOR,R
11	83701-66DG0-DV2	Trim assy, dr rh - Gray
11	83710-66DG2-DV2	TRIM,FRONT DOOR,R
11	83701-66DG0-GA8	TRIM ASSY,FR DOOR,R
11	83701-66DD0-DV2	TRIM ASSY,FR DOOR,R
11	83701-66DD0-GA8	Trim assy, dr rh - Blue/gray
11	83701-66DC0-DV2	Trim assy, dr rh - Gray
11	83710-66DC2-DV2	Trim,front door,r
11	83701-66DC0-GA8	Trim assy, dr rh - Blue/gray
11	83701-66DB0-T01	TRIM ASSY,FR DOOR,R
11	83701-66DA0-T01	トリムアッシ,フロントドア,ライト(グレー)
11	83710-66DA1-T01	TRIM,FRONT DOOR,R
12	83702-66DD0-DV2	Trim assy, dr lh - Gray
12	83720-66DD2-DV2	TRIM,FRONT DOOR,L
12	83702-66DD0-GA8	Trim assy,front door,l
12	83702-66DC0-DV2	Trim assy, dr lh - Gray
12	83720-66DC2-DV2	TRIM,FRONT DOOR,L
12	83702-66DC0-GA8	TRIM ASSY,FR DOOR,L
12	83702-66DH0-DV2	TRIM ASSY,FR DOOR,L
12	83702-66DH0-GA8	Trim assy, dr lh - Gray
12	83702-66DG0-DV2	Trim assy, dr lh - Gray
12	83720-66DG1-DV2	TRIM,FRONT DOOR,L
12	83702-66DG0-GA8	Trim assy, dr lh - Blue/gray
12	83702-66DF0-T01	Trim assy, dr lh - Gray
12	83702-66DE0-T01	Trim assy,front door,l(gray)
14	83911-66D00-000	COVER,FR DR SEALING,R
15	83912-66D00-000	COVER,FR DR SEALING,L
16	03142-04163-000	Screw - Screw, oil filler lid bracket
16	03141-0416A-000	SCREW
17	84482-65D00-000	BRACKET,DR INSIDE PULL HANDLE
18	03242-06163-000	Screw - Screw, tilt handle
18	03241-0616C-000	SCREW
19	09148-06007-000	NUT
20	84641-66D00-000	WEATHERSTRIP,FR DR OPNG,R
21	84651-66D00-000	WEATHERSTRIP,FR DR OPNG,L
22	82711-56B00-000	STOPPER,FR DOOR - Stopper, fr dr lower
23	83921-66D00-0CB	TAPE,FR DOOR SASH,R
24	83922-66D00-0CB	TAPE,FR DOOR SASH,L
25	83923-66D00-0CB	TAPE,FR DOOR PILLAR,R
26	83924-66D00-0CB	TAPE,FR DOOR PILLAR,L

OEM	Part name	Category
01551-08203-000	Bolt	Fr dr panel (FR DR PANEL)
01551-0820A-000	Bolt	Fr dr panel (FR DR PANEL)
01580-06203-000	Bolt - Bolt, front	Fr dr panel (FR DR PANEL)
01580-0620B-000	Bolt	Fr dr panel (FR DR PANEL)
03141-0416A-000	SCREW	Fr dr panel (FR DR PANEL)
03142-04163-000	Screw - Screw, oil filler lid bracket	Fr dr panel (FR DR PANEL)
03241-0616C-000	SCREW	Fr dr panel (FR DR PANEL)
03242-06163-000	Screw - Screw, tilt handle	Fr dr panel (FR DR PANEL)
09103-08389-000	BOLT(8X24)	Fr dr panel (FR DR PANEL)
09148-06007-000	NUT	Fr dr panel (FR DR PANEL)
09409-08320-000	CLIP	Fr dr panel (FR DR PANEL)
68001-66D01-000	PANEL ASSY,FRONT DOOR,R	Fr dr panel (FR DR PANEL)
68001-66D21-000	PANEL ASSY,FRONT DOOR,R	Fr dr panel (FR DR PANEL)
68002-66D01-000	PANEL ASSY,FRONT DOOR,L	Fr dr panel (FR DR PANEL)
68002-66D21-000	PANEL ASSY,FRONT DOOR,L	Fr dr panel (FR DR PANEL)
69310-65D00-000	HINGE,FR DOOR,NO.1	Fr dr panel (FR DR PANEL)
69320-65D00-000	HINGE,FR DOOR,NO.2	Fr dr panel (FR DR PANEL)
69480-65D00-000	Washer	Fr dr panel (FR DR PANEL)
69491-65D00-000	Bolt	Fr dr panel (FR DR PANEL)
81810-65D00-000	STOP,FRONT DOOR OPEN	Fr dr panel (FR DR PANEL)
81831-70B00-000	PIN,DOOR OPEN STOPPER BODY	Fr dr panel (FR DR PANEL)
82711-56B00-000	STOPPER,FR DOOR - Stopper, fr dr lower	Fr dr panel (FR DR PANEL)
83701-66DA0-T01	トリムアッシ,フロントドア,ライト(グレー)	Fr dr panel (FR DR PANEL)
83701-66DB0-T01	TRIM ASSY,FR DOOR,R	Fr dr panel (FR DR PANEL)
83701-66DC0-DV2	Trim assy, dr rh - Gray	Fr dr panel (FR DR PANEL)
83701-66DC0-GA8	Trim assy, dr rh - Blue/gray	Fr dr panel (FR DR PANEL)
83701-66DD0-DV2	TRIM ASSY,FR DOOR,R	Fr dr panel (FR DR PANEL)
83701-66DD0-GA8	Trim assy, dr rh - Blue/gray	Fr dr panel (FR DR PANEL)
83701-66DG0-DV2	Trim assy, dr rh - Gray	Fr dr panel (FR DR PANEL)
83701-66DG0-GA8	TRIM ASSY,FR DOOR,R	Fr dr panel (FR DR PANEL)
83701-66DH0-DV2	Trim assy, dr rh - Gray	Fr dr panel (FR DR PANEL)
83701-66DH0-GA8	TRIM ASSY,FR DOOR,R	Fr dr panel (FR DR PANEL)
83702-66DC0-DV2	Trim assy, dr lh - Gray	Fr dr panel (FR DR PANEL)
83702-66DC0-GA8	TRIM ASSY,FR DOOR,L	Fr dr panel (FR DR PANEL)
83702-66DD0-DV2	Trim assy, dr lh - Gray	Fr dr panel (FR DR PANEL)
83702-66DD0-GA8	Trim assy,front door,l	Fr dr panel (FR DR PANEL)
83702-66DE0-T01	Trim assy,front door,l(gray)	Fr dr panel (FR DR PANEL)
83702-66DF0-T01	Trim assy, dr lh - Gray	Fr dr panel (FR DR PANEL)
83702-66DG0-DV2	Trim assy, dr lh - Gray	Fr dr panel (FR DR PANEL)
83702-66DG0-GA8	Trim assy, dr lh - Blue/gray	Fr dr panel (FR DR PANEL)
83702-66DH0-DV2	TRIM ASSY,FR DOOR,L	Fr dr panel (FR DR PANEL)
83702-66DH0-GA8	Trim assy, dr lh - Gray	Fr dr panel (FR DR PANEL)
83710-66DA1-T01	TRIM,FRONT DOOR,R	Fr dr panel (FR DR PANEL)
83710-66DC2-DV2	Trim,front door,r	Fr dr panel (FR DR PANEL)
83710-66DG2-DV2	TRIM,FRONT DOOR,R	Fr dr panel (FR DR PANEL)
83720-66DC2-DV2	TRIM,FRONT DOOR,L	Fr dr panel (FR DR PANEL)
83720-66DD2-DV2	TRIM,FRONT DOOR,L	Fr dr panel (FR DR PANEL)
83720-66DG1-DV2	TRIM,FRONT DOOR,L	Fr dr panel (FR DR PANEL)
83911-66D00-000	COVER,FR DR SEALING,R	Fr dr panel (FR DR PANEL)
83912-66D00-000	COVER,FR DR SEALING,L	Fr dr panel (FR DR PANEL)
83921-66D00-0CB	TAPE,FR DOOR SASH,R	Fr dr panel (FR DR PANEL)
83922-66D00-0CB	TAPE,FR DOOR SASH,L	Fr dr panel (FR DR PANEL)
83923-66D00-0CB	TAPE,FR DOOR PILLAR,R	Fr dr panel (FR DR PANEL)
83924-66D00-0CB	TAPE,FR DOOR PILLAR,L	Fr dr panel (FR DR PANEL)
84482-65D00-000	BRACKET,DR INSIDE PULL HANDLE	Fr dr panel (FR DR PANEL)
84641-66D00-000	WEATHERSTRIP,FR DR OPNG,R	Fr dr panel (FR DR PANEL)
84651-66D00-000	WEATHERSTRIP,FR DR OPNG,L	Fr dr panel (FR DR PANEL)
