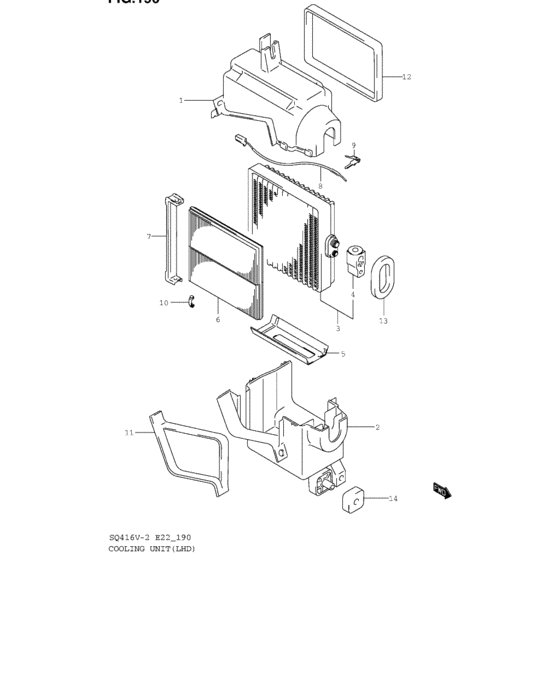

Cooling unit (LHD)
16
| # | OEM | Part name |
|---|
| 0 |
95400-65D32-000 |
Cooling unit |
| 0 |
95400-65D33-000 |
COOLING UNIT |
| 1 |
95421-65D10-000 |
CASE,UPPER |
| 2 |
95422-65D10-000 |
CASE,LOWER |
| 3 |
95410-65D11-000 |
EVAPORATOR ASSY |
| 4 |
95431-65D10-000 |
VALVE,EXPANSION |
| 5 |
95465-65D00-000 |
PACKING,EVAPORATOR LOWER |
| 6 |
95861-65D00-000 |
FILTER |
| 7 |
95423-65D00-000 |
COVER,FILTER |
| 8 |
95541-65D01-000 |
THERMISTOR |
| 9 |
95452-70B21-000 |
CLAMP,THERMISTER |
| 10 |
74316-85500-000 |
CLAMP - Clamp, case |
| 11 |
95461-65D00-000 |
PACKING,INLET |
| 12 |
95462-65D00-000 |
PACKING,OUTLET |
| 13 |
95463-65D00-000 |
PACKING,DASH |
| 14 |
95464-65D00-000 |
PACKING,DRAIN |
| OEM |
Part name |
Category |
| 74316-85500-000 |
CLAMP - Clamp, case |
Cooling unit (LHD) |
| 95400-65D32-000 |
Cooling unit |
Cooling unit (LHD) |
| 95400-65D33-000 |
COOLING UNIT |
Cooling unit (LHD) |
| 95410-65D11-000 |
EVAPORATOR ASSY |
Cooling unit (LHD) |
| 95421-65D10-000 |
CASE,UPPER |
Cooling unit (LHD) |
| 95422-65D10-000 |
CASE,LOWER |
Cooling unit (LHD) |
| 95423-65D00-000 |
COVER,FILTER |
Cooling unit (LHD) |
| 95431-65D10-000 |
VALVE,EXPANSION |
Cooling unit (LHD) |
| 95452-70B21-000 |
CLAMP,THERMISTER |
Cooling unit (LHD) |
| 95461-65D00-000 |
PACKING,INLET |
Cooling unit (LHD) |
| 95462-65D00-000 |
PACKING,OUTLET |
Cooling unit (LHD) |
| 95463-65D00-000 |
PACKING,DASH |
Cooling unit (LHD) |
| 95464-65D00-000 |
PACKING,DRAIN |
Cooling unit (LHD) |
| 95465-65D00-000 |
PACKING,EVAPORATOR LOWER |
Cooling unit (LHD) |
| 95541-65D01-000 |
THERMISTOR |
Cooling unit (LHD) |
| 95861-65D00-000 |
FILTER |
Cooling unit (LHD) |
