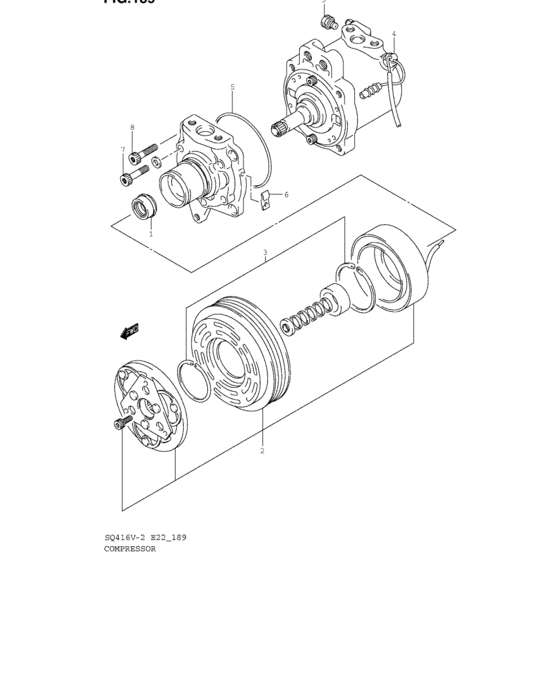

Compressor (COMPRESSOR)
21
| # | OEM | Part name |
|---|
| 0 |
95200-70CF0-000 |
コンプレッサアッシ,A/C |
| 0 |
99000-99088-70C |
COMPRESSOR ASSY |
| 0 |
95200-70CF1-000 |
AC COMPRESSOR ASSY |
| 0 |
95200-70CG0-000 |
コンプレッサアッシ,A/C |
| 0 |
95200-70CG1-000 |
COMPRESSOR ASSY |
| 1 |
95261-70B00-000 |
Seal, lip |
| 2 |
95210-64A02-000 |
Clutch,magneto |
| 2 |
95210-64A03-000 |
CLUTCH,MAGNET |
| 2 |
95210-70CC0-000 |
CLUTCH ASSY |
| 2 |
99000-99088-71C |
CLUTCH ASSY. |
| 2 |
95210-70CC1-000 |
CLUTCH ASSY |
| 3 |
95298-72B20-000 |
Clip kit |
| 3 |
95298-72B21-000 |
CLIP KIT |
| 4 |
95527-70CA0-000 |
SWITCH,THERMAL |
| 4 |
95527-72B00-000 |
SWITCH,THERMAL |
| 4 |
95527-72B01-000 |
SWITCH,THERMAL |
| 5 |
95262-70B00-000 |
O ring |
| 6 |
95291-70B00-000 |
FIXING PLATE |
| 7 |
95296-72B20-000 |
BOLT,COMPRESSOR CASE |
| 8 |
95297-72B20-000 |
Bolt |
| 9 |
95271-72B01-000 |
VALVE,RELIEF |
| OEM |
Part name |
Category |
| 95200-70CF0-000 |
コンプレッサアッシ,A/C |
Compressor (COMPRESSOR) |
| 95200-70CF1-000 |
AC COMPRESSOR ASSY |
Compressor (COMPRESSOR) |
| 95200-70CG0-000 |
コンプレッサアッシ,A/C |
Compressor (COMPRESSOR) |
| 95200-70CG1-000 |
COMPRESSOR ASSY |
Compressor (COMPRESSOR) |
| 95210-64A02-000 |
Clutch,magneto |
Compressor (COMPRESSOR) |
| 95210-64A03-000 |
CLUTCH,MAGNET |
Compressor (COMPRESSOR) |
| 95210-70CC0-000 |
CLUTCH ASSY |
Compressor (COMPRESSOR) |
| 95210-70CC1-000 |
CLUTCH ASSY |
Compressor (COMPRESSOR) |
| 95261-70B00-000 |
Seal, lip |
Compressor (COMPRESSOR) |
| 95262-70B00-000 |
O ring |
Compressor (COMPRESSOR) |
| 95271-72B01-000 |
VALVE,RELIEF |
Compressor (COMPRESSOR) |
| 95291-70B00-000 |
FIXING PLATE |
Compressor (COMPRESSOR) |
| 95296-72B20-000 |
BOLT,COMPRESSOR CASE |
Compressor (COMPRESSOR) |
| 95297-72B20-000 |
Bolt |
Compressor (COMPRESSOR) |
| 95298-72B20-000 |
Clip kit |
Compressor (COMPRESSOR) |
| 95298-72B21-000 |
CLIP KIT |
Compressor (COMPRESSOR) |
| 95527-70CA0-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
| 95527-72B00-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
| 95527-72B01-000 |
SWITCH,THERMAL |
Compressor (COMPRESSOR) |
| 99000-99088-70C |
COMPRESSOR ASSY |
Compressor (COMPRESSOR) |
| 99000-99088-71C |
CLUTCH ASSY. |
Compressor (COMPRESSOR) |
