SQ416X

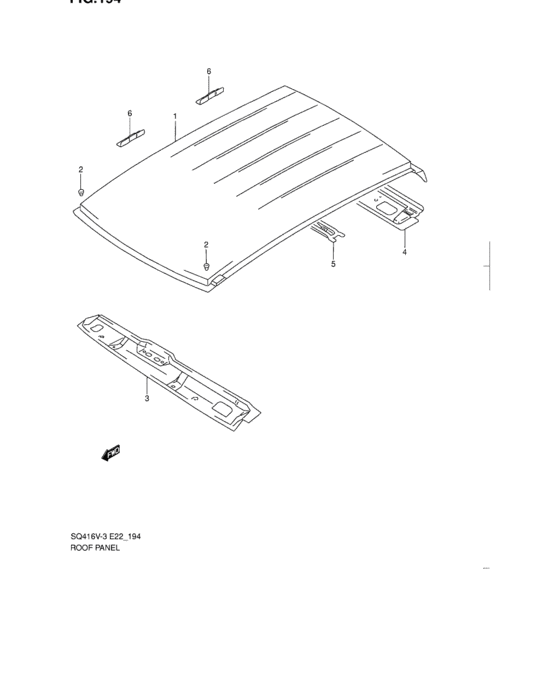

Roof panel (ROOF PANEL) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-66D00-000 | PANEL,ROOF |
| 2 | 65112-84000-000 | STUD,MOLDING |
| 3 | 65121-65D00-000 | PANEL ROOF INNER |
| 3 | 65121-65D01-000 | PANEL,ROOF FRONT INNER |
| 4 | 65131-65D00-000 | PANEL,ROOF BACK INNER |
| 5 | 65141-65D00-000 | REINFORCEMENT,ROOF PANEL NO.1 |
| 6 | 65161-67D00-000 | BRACKET,ROOF CARRIER |
| OEM | Part name | Category |
|---|---|---|
| 65111-66D00-000 | PANEL,ROOF | Roof panel (ROOF PANEL) |
| 65112-84000-000 | STUD,MOLDING | Roof panel (ROOF PANEL) |
| 65121-65D00-000 | PANEL ROOF INNER | Roof panel (ROOF PANEL) |
| 65121-65D01-000 | PANEL,ROOF FRONT INNER | Roof panel (ROOF PANEL) |
| 65131-65D00-000 | PANEL,ROOF BACK INNER | Roof panel (ROOF PANEL) |
| 65141-65D00-000 | REINFORCEMENT,ROOF PANEL NO.1 | Roof panel (ROOF PANEL) |
| 65161-67D00-000 | BRACKET,ROOF CARRIER | Roof panel (ROOF PANEL) |
