SQ416X

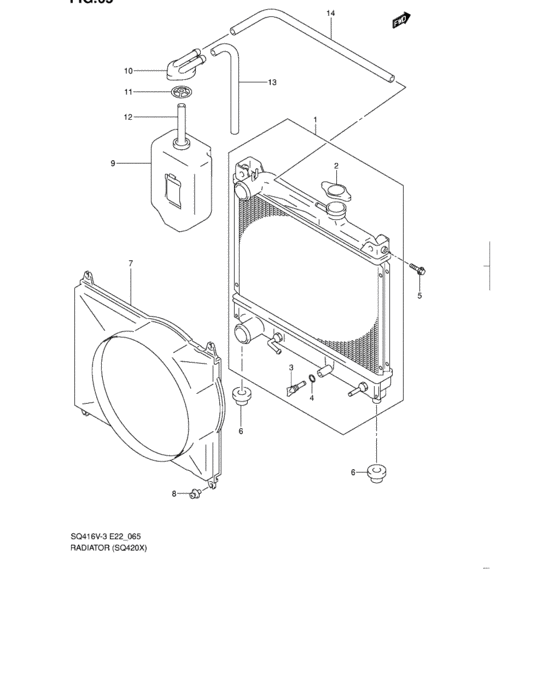

Radiator (SQ420X) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-77E30-000 | RADIATOR ASSY |
| 1 | 17700-77E20-000 | RADIATOR ASSY |
| 2 | 17920-66F01-000 | CAP,RADIATOR 1.1 |
| 3 | 17751-61A00-000 | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING |
| 5 | 02162-06253-000 | Bolt |
| 5 | 02162-0625A-000 | SCREW |
| 6 | 17812-82000-000 | BUSHING,RADIATOR SUPPORT |
| 7 | 17761-77EA0-000 | SHROUD,FAN |
| 8 | 17795-65D00-000 | CLIP,FAN SHROUD |
| 9 | 17931-65D00-000 | TANK,WATER RESERVE |
| 10 | 17932-60G10-000 | CAP,WATER RESERVE TANK |
| 11 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 12 | 09352-70111-600 | HOSE(7X11X600) |
| 13 | 17939-65D00-000 | HOSE,RSVR TANK VENT |
| 14 | 09352-70121-600 | HOSE(7X12.1X600) - Hose (inmani to iac) |
| OEM | Part name | Category |
|---|---|---|
| 02162-06253-000 | Bolt | Radiator (SQ420X) |
| 02162-0625A-000 | SCREW | Radiator (SQ420X) |
| 09352-70111-600 | HOSE(7X11X600) | Radiator (SQ420X) |
| 09352-70121-600 | HOSE(7X12.1X600) - Hose (inmani to iac) | Radiator (SQ420X) |
| 17700-77E20-000 | RADIATOR ASSY | Radiator (SQ420X) |
| 17700-77E30-000 | RADIATOR ASSY | Radiator (SQ420X) |
| 17751-61A00-000 | PLUG,DRAIN | Radiator (SQ420X) |
| 17759-72010-000 | O-RING | Radiator (SQ420X) |
| 17761-77EA0-000 | SHROUD,FAN | Radiator (SQ420X) |
| 17795-65D00-000 | CLIP,FAN SHROUD | Radiator (SQ420X) |
| 17812-82000-000 | BUSHING,RADIATOR SUPPORT | Radiator (SQ420X) |
| 17920-66F01-000 | CAP,RADIATOR 1.1 | Radiator (SQ420X) |
| 17931-65D00-000 | TANK,WATER RESERVE | Radiator (SQ420X) |
| 17932-60G10-000 | CAP,WATER RESERVE TANK | Radiator (SQ420X) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | Radiator (SQ420X) |
| 17939-65D00-000 | HOSE,RSVR TANK VENT | Radiator (SQ420X) |
