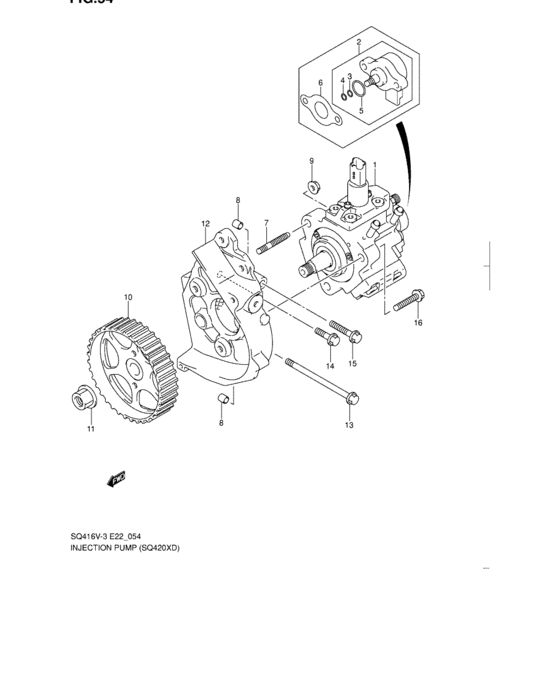

Injection pump (SQ420XD)
17
| # | OEM | Part name |
|---|
| 1 |
15200-67G10-000 |
PUMP,FUEL HIGH PRESSURE |
| 2 |
15610-67G00-000 |
REGULATOR,PRESSURE |
| 3 |
15611-67G00-000 |
RING,PUMP |
| 4 |
15612-67G00-000 |
GASKET,PUMP NO.1 |
| 5 |
15613-67G00-000 |
GASKET,PUMP NO.2 |
| 6 |
15614-67G00-000 |
GASKET,REGULATOR |
| 7 |
15896-67G00-000 |
STUD BOLT,M8 |
| 8 |
49179-66G00-000 |
COLLAR |
| 9 |
11164-66G00-000 |
NUT,M8 |
| 10 |
12811-67G00-000 |
Gear, injection pump |
| 10 |
12811-67G10-000 |
PULLEY,INJECTION PUMP |
| 11 |
12812-66G10-000 |
NUT,M14 |
| 12 |
12813-67G10-000 |
BRACKET,INJECTION PUMP |
| 13 |
12815-67G00-000 |
BOLT,8X105 |
| 14 |
12824-66G00-000 |
BOLT,8X30 |
| 15 |
12828-67G00-000 |
BOLT,8X45 |
| 16 |
49178-66G00-000 |
BOLT,8X35 |
| OEM |
Part name |
Category |
| 11164-66G00-000 |
NUT,M8 |
Injection pump (SQ420XD) |
| 12811-67G00-000 |
Gear, injection pump |
Injection pump (SQ420XD) |
| 12811-67G10-000 |
PULLEY,INJECTION PUMP |
Injection pump (SQ420XD) |
| 12812-66G10-000 |
NUT,M14 |
Injection pump (SQ420XD) |
| 12813-67G10-000 |
BRACKET,INJECTION PUMP |
Injection pump (SQ420XD) |
| 12815-67G00-000 |
BOLT,8X105 |
Injection pump (SQ420XD) |
| 12824-66G00-000 |
BOLT,8X30 |
Injection pump (SQ420XD) |
| 12828-67G00-000 |
BOLT,8X45 |
Injection pump (SQ420XD) |
| 15200-67G10-000 |
PUMP,FUEL HIGH PRESSURE |
Injection pump (SQ420XD) |
| 15610-67G00-000 |
REGULATOR,PRESSURE |
Injection pump (SQ420XD) |
| 15611-67G00-000 |
RING,PUMP |
Injection pump (SQ420XD) |
| 15612-67G00-000 |
GASKET,PUMP NO.1 |
Injection pump (SQ420XD) |
| 15613-67G00-000 |
GASKET,PUMP NO.2 |
Injection pump (SQ420XD) |
| 15614-67G00-000 |
GASKET,REGULATOR |
Injection pump (SQ420XD) |
| 15896-67G00-000 |
STUD BOLT,M8 |
Injection pump (SQ420XD) |
| 49178-66G00-000 |
BOLT,8X35 |
Injection pump (SQ420XD) |
| 49179-66G00-000 |
COLLAR |
Injection pump (SQ420XD) |
