SQ416X

Suzuki GRAND-VITARA · 5,146 parts · 236 categories
SQ416X ×

← Back to categories

5,146 items

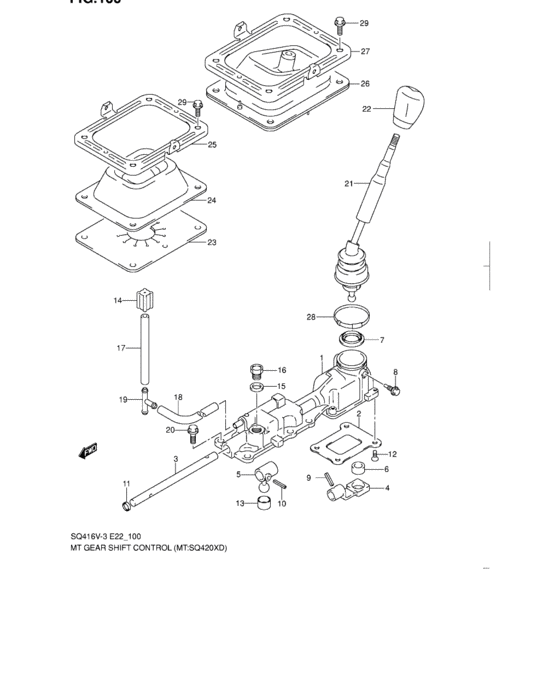

Gear shift control (MT:SQ420XD) 39
#OEMPart name
1 25120-68D01-000 CASE,GR SHF LEVER
2 25129-60A00-000 PLATE,GEAR SHF CASE
3 25521-68D01-000 SHAFT,GEAR SHIFT
4 25531-67D00-000 ARM,GEAR SHIFT
5 25541-52D00-000 LEVER,GEAR SHF
6 25551-60A02-000 BUSH,GEAR CONT LEVER
7 28117-60A00-000 SEAT,GEAR SHF LEVER CASE
8 09103-08384-000 BOLT(8X18.4)
9 09205-03037-000 PIN,SPRING(3X25)
10 09205-06007-000 PIN,SPRING(6X25) - Pin (6x27)
11 09241-16005-000 PLUG
12 02122-06163-000 Screw
12 02122-0616B-000 SCREW - Screw, intake pipe
12 02122-0616A-000 SCREW
13 25551-52D00-000 BUSH,GEAR SHIFT LEVER
14 27991-65D01-000 PLUG,BREATHER
15 09168-14011-000 GASKET(14X20X1.5)
16 09247-14029-000 PLUG
17 09352-70113-600 HOSE(7X11X600)
17 09352-70119-600 Hose(7X11X600)
19 09367-08004-000 3 WAY - 3 way (m8)
20 01550-08253-000 Bolt, rear
20 01550-0825B-000 Bolt
20 01550-0825A-000 Bolt
21 28101-50J01-000 Lever comp,gear shift control
21 28101-50J02-000 LEVER,GEAR SHF CONT
21 28101-54J00-000 Lever comp,gear shift control
21 28101-54J01-000 LEVER,GR SHIFT CONT
22 28113-50J01-KN3 Knob, control lever
22 28113-50J07-KN3 KNOB,GEAR SHF CONT LEVER
22 28113-50J01-KN1 Knob, control lever
22 28113-50J07-KN1 KNOB,GEAR SHF CONT LEVER
23 28135-65D00-000 SHEET,GEAR SHF CONT LEVER NO.2
24 28136-65D01-000 BOOT,GR SHF CONT LEVER N0.2
25 28137-65D10-000 COVER,GEAR SHF CONT BOOT
26 28130-54J00-000 BOOT,GR SHF CONT LEVER NO.2
27 28137-54J00-000 COVER,GEAR SHF CONT BOOT
28 09401-57901-000 CLAMP
29 09118-08118-000 BOLT(8X20)
