Search › Model › SQ416X
SQ416X

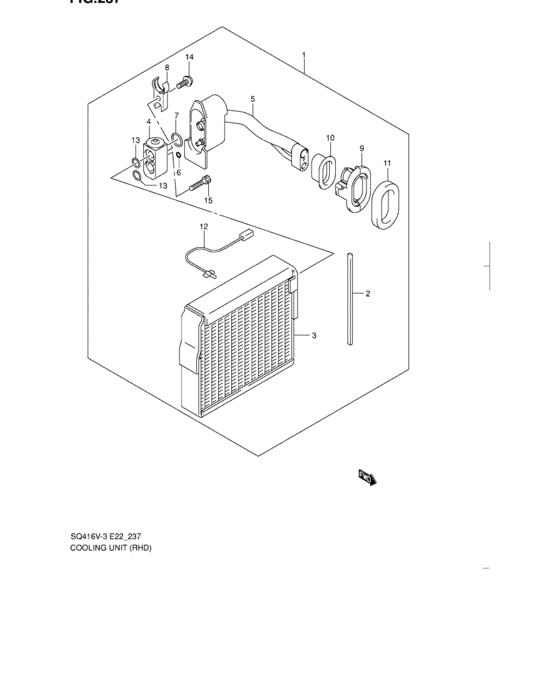

Cooling unit (RHD) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 95401-50J00-000 | SET,EVAPORATOR |
| 2 | 74179-54J00-000 | SEAL |
| 3 | 95411-54J00-000 | CORE,EVAPORATOR |
| 4 | 95431-54J00-000 | VALVE,EXPANSION |
| 5 | 95432-54J00-000 | PIPE ASSY |
| 6 | 95891-54J00-000 | O-RING |
| 7 | 95896-54J00-000 | O-RING |
| 8 | 95433-54J00-000 | PLATE |
| 9 | 95434-54J00-000 | COVER,A/C BLOCK |
| 10 | 95435-54J00-000 | GROMMET,BLOCK |
| 11 | 95436-54J00-000 | PACKING |
| 12 | 95541-54J00-000 | THERMISTOR |
| 13 | 95897-54J00-000 | O-RING |
| 14 | 01580-06253-000 | Bolt, ignition - Bolt, front |
| 14 | 01580-0625A-000 | Bolt |
| 15 | 07130-05357-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01580-06253-000 | Bolt, ignition - Bolt, front | Cooling unit (RHD) |
| 01580-0625A-000 | Bolt | Cooling unit (RHD) |
| 07130-05357-000 | Bolt | Cooling unit (RHD) |
| 74179-54J00-000 | SEAL | Cooling unit (RHD) |
| 95401-50J00-000 | SET,EVAPORATOR | Cooling unit (RHD) |
| 95411-54J00-000 | CORE,EVAPORATOR | Cooling unit (RHD) |
| 95431-54J00-000 | VALVE,EXPANSION | Cooling unit (RHD) |
| 95432-54J00-000 | PIPE ASSY | Cooling unit (RHD) |
| 95433-54J00-000 | PLATE | Cooling unit (RHD) |
| 95434-54J00-000 | COVER,A/C BLOCK | Cooling unit (RHD) |
| 95435-54J00-000 | GROMMET,BLOCK | Cooling unit (RHD) |
| 95436-54J00-000 | PACKING | Cooling unit (RHD) |
| 95541-54J00-000 | THERMISTOR | Cooling unit (RHD) |
| 95891-54J00-000 | O-RING | Cooling unit (RHD) |
| 95896-54J00-000 | O-RING | Cooling unit (RHD) |
| 95897-54J00-000 | O-RING | Cooling unit (RHD) |
