Search › Model › SQ416X
SQ416X

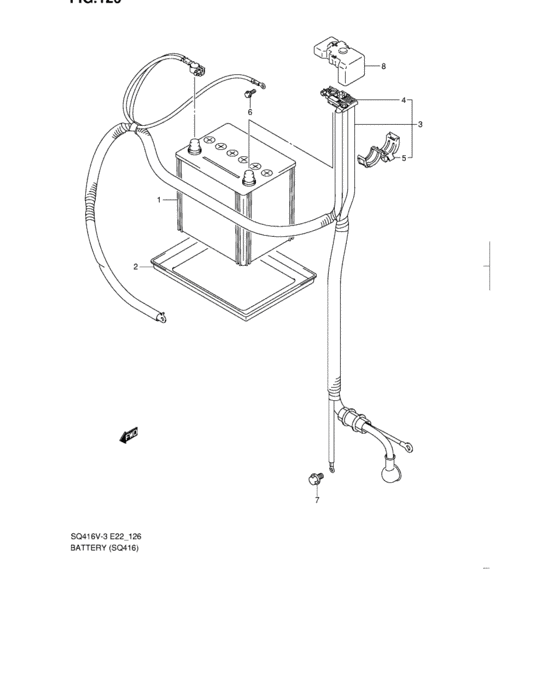

Battery (SQ416V,SQ416X) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 1 | 33610-77EV1-000 | Battery assy - Yuasa , 55b24l,12v36ah/5hr |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33800-50J11-000 | CABLE ASSY,BATTERY |
| 3 | 33800-50J01-000 | CABLE ASSY,BATTERY |
| 4 | 36739-50J00-000 | FUSE,BATTERY CABLE 80A |
| 5 | 36991-77E00-000 | Clamp, Cable |
| 6 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 6 | 09115-06005-000 | BOLT(6X16) |
| 7 | 01550-10163-000 | Bolt |
| 7 | 01550-1016B-000 | Bolt - Plug, oil gallery |
| 7 | 01550-1016A-000 | Bolt - Plug, oil gallery |
| 8 | 36694-50J00-000 | COVER,BTRY TERMINAL |
| OEM | Part name | Category |
|---|---|---|
| 01550-10163-000 | Bolt | Battery (SQ416V,SQ416X) |
| 01550-1016A-000 | Bolt - Plug, oil gallery | Battery (SQ416V,SQ416X) |
| 01550-1016B-000 | Bolt - Plug, oil gallery | Battery (SQ416V,SQ416X) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (SQ416V,SQ416X) |
| 09115-06005-000 | BOLT(6X16) | Battery (SQ416V,SQ416X) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | Battery (SQ416V,SQ416X) |
| 33610-77EV1-000 | Battery assy - Yuasa , 55b24l,12v36ah/5hr | Battery (SQ416V,SQ416X) |
| 33660-71L10-000 | TRAY,BATTERY | Battery (SQ416V,SQ416X) |
| 33660-73010-000 | Tray, battery | Battery (SQ416V,SQ416X) |
| 33800-50J01-000 | CABLE ASSY,BATTERY | Battery (SQ416V,SQ416X) |
| 33800-50J11-000 | CABLE ASSY,BATTERY | Battery (SQ416V,SQ416X) |
| 36694-50J00-000 | COVER,BTRY TERMINAL | Battery (SQ416V,SQ416X) |
| 36739-50J00-000 | FUSE,BATTERY CABLE 80A | Battery (SQ416V,SQ416X) |
| 36991-77E00-000 | Clamp, Cable | Battery (SQ416V,SQ416X) |
