Search › Model › SQ416V
SQ416V

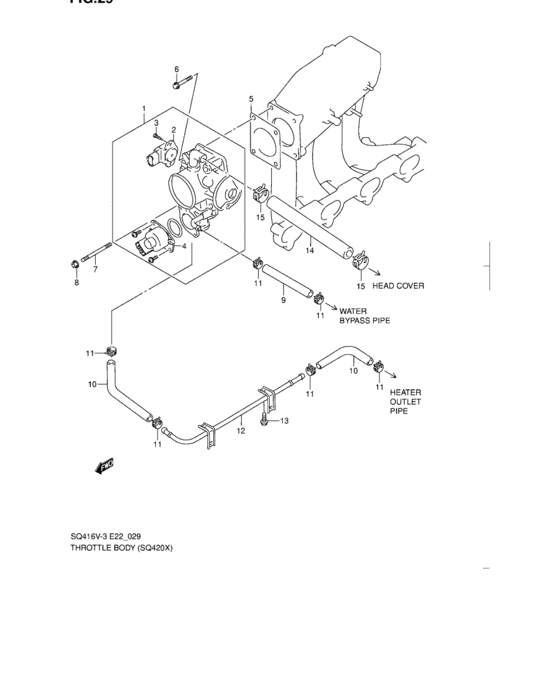

Throttle body (SQ420X) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 13400-65D00-000 | BODY ASSY,THROTTLE |
| 2 | 13420-65D00-000 | SENSORTHRTL POSITION |
| 2 | 13420-65D01-000 | SENSOR,THROTTLE POSITION |
| 3 | 13428-65D00-000 | SCREW,TP-SENSOR |
| 4 | 18137-65D00-000 | VALVE,IAC |
| 5 | 13421-65D00-000 | GASKET,THROTTLE BODY |
| 6 | 01550-08553-000 | Bolt |
| 6 | 01550-0855B-000 | Bolt |
| 6 | 01550-0855A-000 | Bolt - Bolt, gear holder |
| 7 | 01421-08503-000 | Bolt, stud - Stud bolt |
| 7 | 01421-0850A-000 | BOLT,STUD |
| 8 | 08316-10083-000 | Nut |
| 8 | 08316-1008B-000 | NUT |
| 9 | 09356-75141-600 | HOSE(7.5X14.5X600) |
| 11 | 09401-12410-000 | CLIP - Clip, filter outlet |
| 12 | 13450-77EA1-000 | PIPE,WATER |
| 13 | 01550-06123-000 | Bolt |
| 13 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 13 | 01550-0612A-000 | Bolt |
| 14 | 09355-13207-600 | HOSE(13X20X600) - Hose, breather |
| 15 | 09401-18404-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01421-08503-000 | Bolt, stud - Stud bolt | Throttle body (SQ420X) |
| 01421-0850A-000 | BOLT,STUD | Throttle body (SQ420X) |
| 01550-06123-000 | Bolt | Throttle body (SQ420X) |
| 01550-0612A-000 | Bolt | Throttle body (SQ420X) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Throttle body (SQ420X) |
| 01550-08553-000 | Bolt | Throttle body (SQ420X) |
| 01550-0855A-000 | Bolt - Bolt, gear holder | Throttle body (SQ420X) |
| 01550-0855B-000 | Bolt | Throttle body (SQ420X) |
| 08316-10083-000 | Nut | Throttle body (SQ420X) |
| 08316-1008B-000 | NUT | Throttle body (SQ420X) |
| 09355-13207-600 | HOSE(13X20X600) - Hose, breather | Throttle body (SQ420X) |
| 09356-75141-600 | HOSE(7.5X14.5X600) | Throttle body (SQ420X) |
| 09401-12410-000 | CLIP - Clip, filter outlet | Throttle body (SQ420X) |
| 09401-18404-000 | CLIP | Throttle body (SQ420X) |
| 13400-65D00-000 | BODY ASSY,THROTTLE | Throttle body (SQ420X) |
| 13420-65D00-000 | SENSORTHRTL POSITION | Throttle body (SQ420X) |
| 13420-65D01-000 | SENSOR,THROTTLE POSITION | Throttle body (SQ420X) |
| 13421-65D00-000 | GASKET,THROTTLE BODY | Throttle body (SQ420X) |
| 13428-65D00-000 | SCREW,TP-SENSOR | Throttle body (SQ420X) |
| 13450-77EA1-000 | PIPE,WATER | Throttle body (SQ420X) |
| 18137-65D00-000 | VALVE,IAC | Throttle body (SQ420X) |
