| 01550-08203-000 |
Bolt |

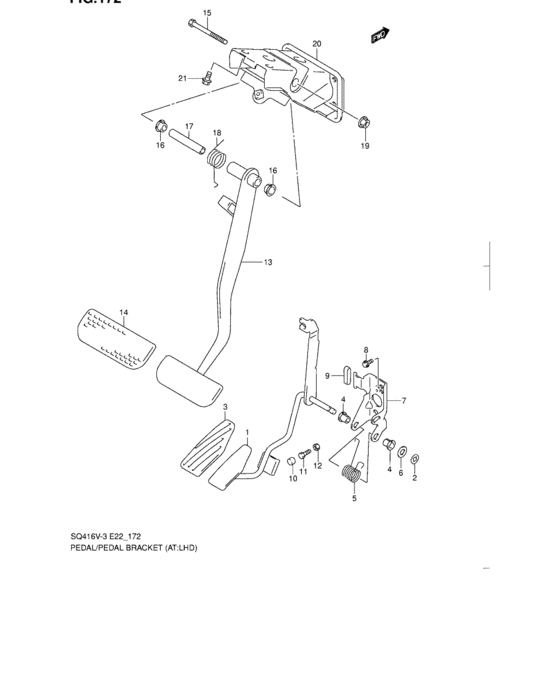

Pedal and pedal bracket (LHD:AT) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
Pedal and pedal bracket (LHD:AT) |
| 01550-0820B-000 |
Bolt |
Pedal and pedal bracket (LHD:AT) |
| 02162-06123-000 |
Bolt (6x12) |
Pedal and pedal bracket (LHD:AT) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Pedal and pedal bracket (LHD:AT) |
| 02162-0612B-000 |
SCREW - Bolt |
Pedal and pedal bracket (LHD:AT) |
| 08310-00063-000 |
Nut |
Pedal and pedal bracket (LHD:AT) |
| 08310-0006A-000 |
NUT |
Pedal and pedal bracket (LHD:AT) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Pedal and pedal bracket (LHD:AT) |
| 08316-20103-000 |
Nut |
Pedal and pedal bracket (LHD:AT) |
| 08316-2010B-000 |
NUT |
Pedal and pedal bracket (LHD:AT) |
| 09100-06159-000 |
BOLT(6X34) |
Pedal and pedal bracket (LHD:AT) |
| 09100-10226-000 |
BOLT(10X85) |
Pedal and pedal bracket (LHD:AT) |
| 09148-09001-000 |
NUT |
Pedal and pedal bracket (LHD:AT) |
| 09160-09016-000 |
WASHER(9.5X20X1) |
Pedal and pedal bracket (LHD:AT) |
| 09180-10121-000 |
SPACER(10.1X13X73.8) |
Pedal and pedal bracket (LHD:AT) |
| 09251-09002-000 |
CAP(OD:13.6) |
Pedal and pedal bracket (LHD:AT) |
| 09251-09008-000 |
Cap(Od:13.6) |
Pedal and pedal bracket (LHD:AT) |
| 09307-09001-000 |
BUSH |
Pedal and pedal bracket (LHD:AT) |
| 09307-13005-000 |
BUSH - Bushing |
Pedal and pedal bracket (LHD:AT) |
| 09448-21005-000 |
SPRING |
Pedal and pedal bracket (LHD:AT) |
| 49410-77E50-000 |
PEDAL,ACCELERATOR |
Pedal and pedal bracket (LHD:AT) |
| 49416-60A00-000 |
CUSHION,ACCEL PEDAL RETURN |
Pedal and pedal bracket (LHD:AT) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
Pedal and pedal bracket (LHD:AT) |
| 49511-65D00-000 |
BRACKET,ACCELERATOR |
Pedal and pedal bracket (LHD:AT) |
| 49610-67D60-000 |
PEDAL,BRAKE |
Pedal and pedal bracket (LHD:AT) |
| 49691-65D00-000 |
SPRING,BRAKE PEDAL |
Pedal and pedal bracket (LHD:AT) |
| 49710-52DA0-000 |
BRACKET,PEDAL |
Pedal and pedal bracket (LHD:AT) |
| 49751-67D60-000 |
PAD,PEDAL |
Pedal and pedal bracket (LHD:AT) |
