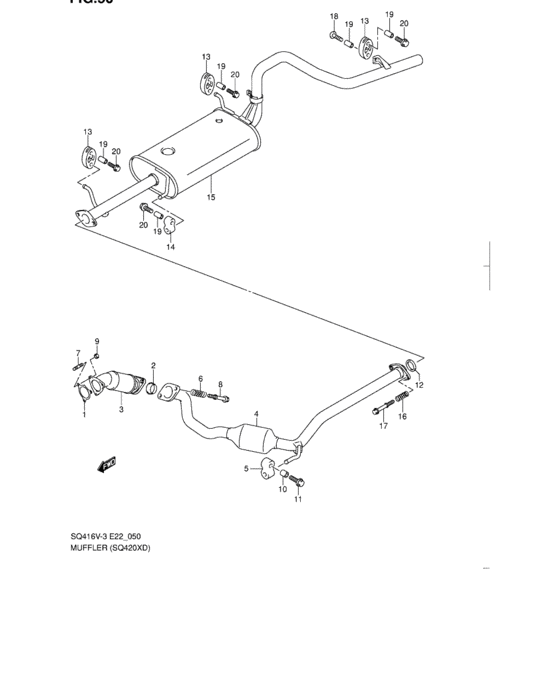

Muffler (SQ420XD)
21
| # | OEM | Part name |
|---|
| 1 |
14181-68DB0-000 |
GASKET,EXH PIPE |
| 2 |
14183-65D00-000 |
RING,SEAL EXH PIPE |
| 3 |
14190-68DB0-000 |
PIPE,TURBO OUTLET |
| 4 |
14250-68DB0-000 |
PIPE,EXH NO.2 |
| 5 |
14281-52D00-000 |
MOUNTING,MUF |
| 6 |
14492-67D00-000 |
SPRING,EXH PIPE |
| 7 |
09108-08139-000 |
BOLT,STUD |
| 8 |
09119-10041-000 |
BOLT(10X65) |
| 9 |
09140-08023-000 |
Nut (ll/x) |
| 9 |
09140-08023-XC0 |
NUT |
| 10 |
09180-08057-000 |
Spacer |
| 10 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 11 |
01550-08353-000 |
Bolt, rear |
| 11 |
01550-0835B-000 |
Bolt |
| 11 |
01550-0835A-000 |
Bolt |
| 13 |
14281-58B01-000 |
MOUNTING,MUF |
| 14 |
14281-71C01-000 |
MOUNTING,MUF |
| 15 |
14300-68DB0-000 |
Muffler |
| 15 |
14300-68DBV-000 |
MUFFLER |
| 17 |
09119-10042-000 |
ボルト,10X65 |
| 18 |
09139-08019-000 |
SCREW(8X35) |
| OEM |
Part name |
Category |
| 01550-08353-000 |
Bolt, rear |
Muffler (SQ420XD) |
| 01550-0835A-000 |
Bolt |
Muffler (SQ420XD) |
| 01550-0835B-000 |
Bolt |
Muffler (SQ420XD) |
| 09108-08139-000 |
BOLT,STUD |
Muffler (SQ420XD) |
| 09119-10041-000 |
BOLT(10X65) |
Muffler (SQ420XD) |
| 09119-10042-000 |
ボルト,10X65 |
Muffler (SQ420XD) |
| 09139-08019-000 |
SCREW(8X35) |
Muffler (SQ420XD) |
| 09140-08023-000 |
Nut (ll/x) |
Muffler (SQ420XD) |
| 09140-08023-XC0 |
NUT |
Muffler (SQ420XD) |
| 09180-08057-000 |
Spacer |
Muffler (SQ420XD) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
Muffler (SQ420XD) |
| 14181-68DB0-000 |
GASKET,EXH PIPE |
Muffler (SQ420XD) |
| 14183-65D00-000 |
RING,SEAL EXH PIPE |
Muffler (SQ420XD) |
| 14190-68DB0-000 |
PIPE,TURBO OUTLET |
Muffler (SQ420XD) |
| 14250-68DB0-000 |
PIPE,EXH NO.2 |
Muffler (SQ420XD) |
| 14281-52D00-000 |
MOUNTING,MUF |
Muffler (SQ420XD) |
| 14281-58B01-000 |
MOUNTING,MUF |
Muffler (SQ420XD) |
| 14281-71C01-000 |
MOUNTING,MUF |
Muffler (SQ420XD) |
| 14300-68DB0-000 |
Muffler |
Muffler (SQ420XD) |
| 14300-68DBV-000 |
MUFFLER |
Muffler (SQ420XD) |
| 14492-67D00-000 |
SPRING,EXH PIPE |
Muffler (SQ420XD) |
